Complete Troubleshooting & Maintenance Guide for Screw Sludge Dewatering Machine

I. Introduction to Screw Sludge Dewatering Equipment

---

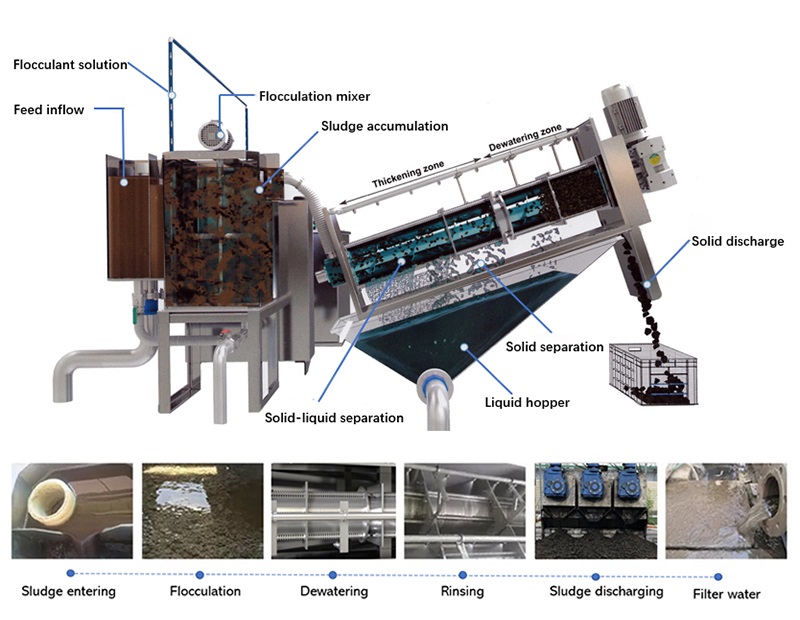

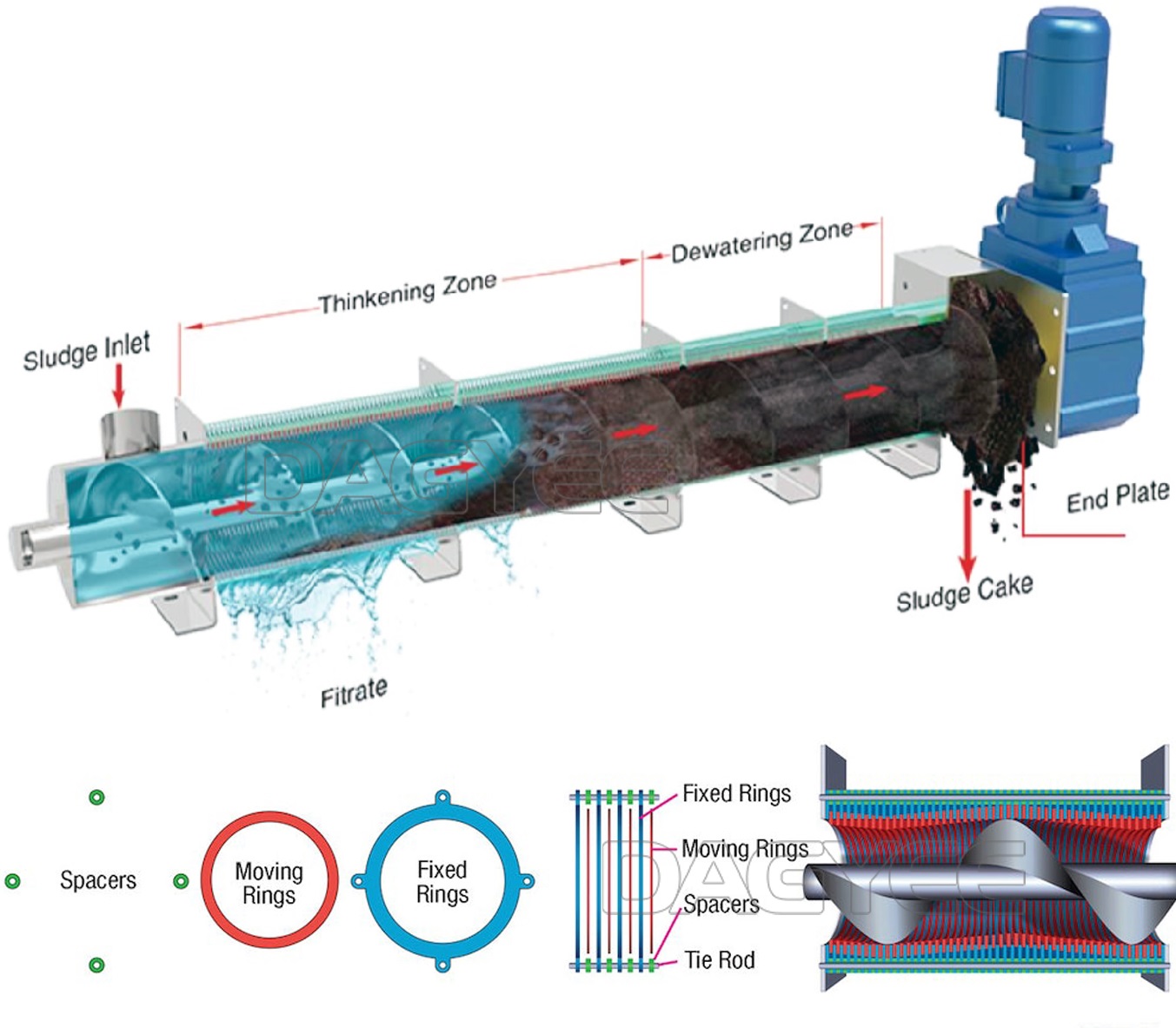

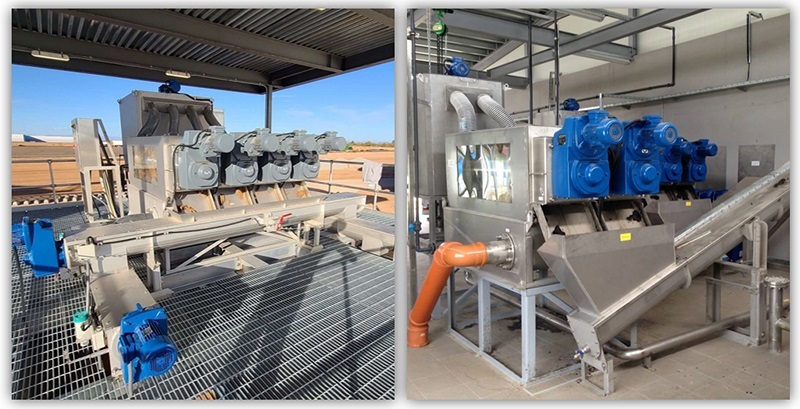

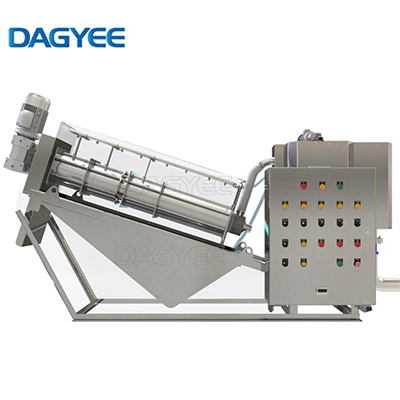

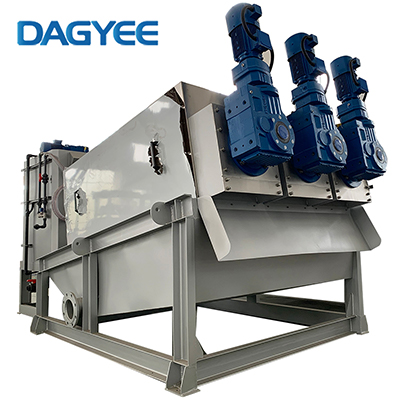

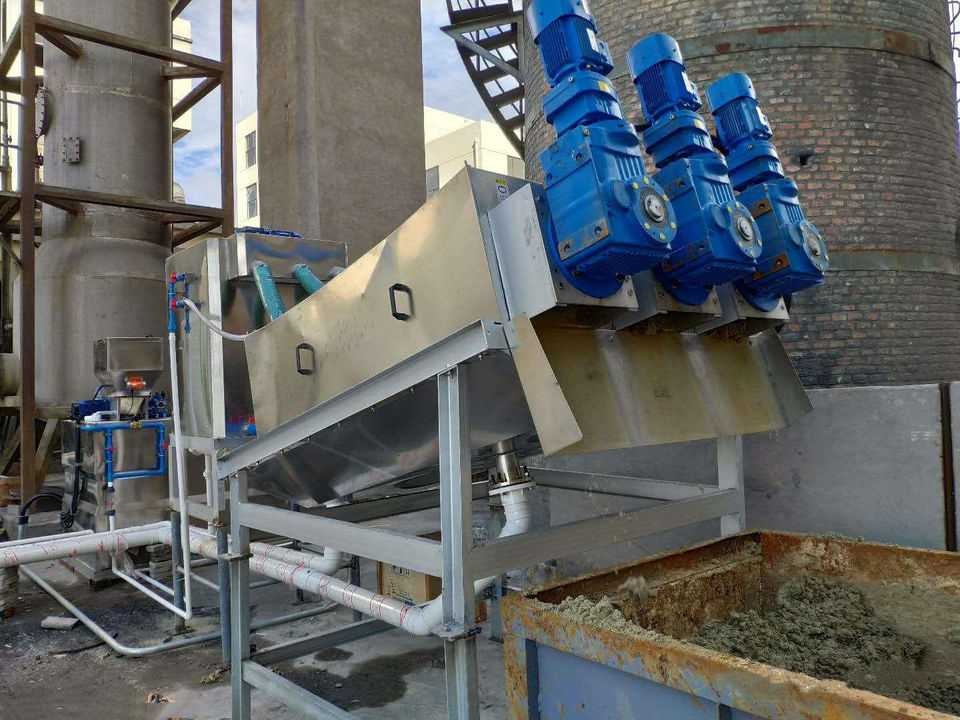

Screw sludge dewatering machine, also named multi-disc screw press, spiral sludge dehydrator, is a core solid-liquid separation device widely applied in municipal sewage treatment plants, food processing wastewater, chemical industrial wastewater, livestock manure treatment and printing & dyeing sludge disposal. Different from traditional belt filter press and plate frame filter press, the screw dewatering machine adopts stacked dynamic-static ring structure with low rotation speed (2–6 rpm), low energy consumption and automatic continuous operation.

However, long-term continuous operation, unstable sludge characteristics, irregular chemical dosing and missing daily maintenance will trigger frequent mechanical, electrical and process faults. Unresolved failures will directly reduce sludge dewatering efficiency, raise filtrate SS value, cause equipment shutdown and increase spare parts replacement costs. This paper systematically sorts out 8 most frequent faults of screw sludge dewatering machines, analyzes internal failure mechanisms, provides standardized disassembly & repair workflows, and establishes a full-cycle preventive maintenance system based on field operation data of over 120 wastewater treatment stations.

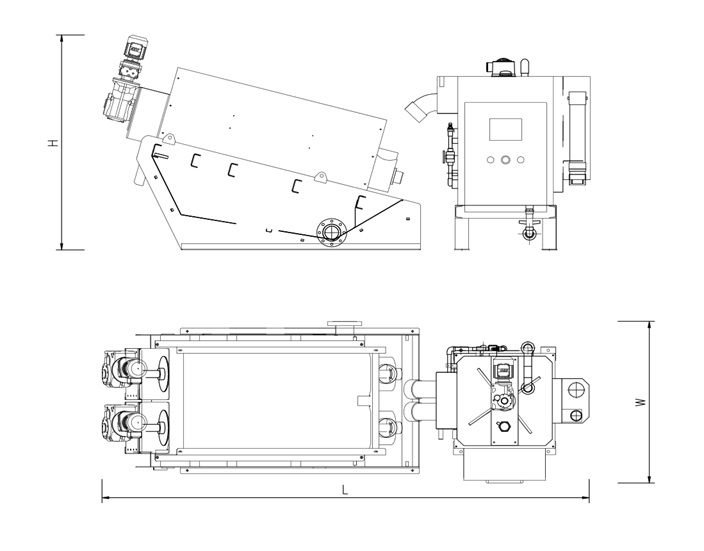

1.1 Core Standard Technical Parameters of Conventional Multi-Disc Screw Dewatering Machine

The following table lists mainstream industrial and municipal standard model parameters, covering common 304 stainless steel screw dewatering machines, which matches most on-site operating equipment for wastewater treatment projects, supporting parameter comparison during fault diagnosis and equipment debugging.

II. 8 Typical Faults, Root Cause Analysis & Step-by-Step Repair Methods

---

Fault 1: Screw Shaft Blockage & Machine Jamming (Most Frequent Malfunction)

(1) Symptom Manifestations

Drive motor triggers overload protection and automatic shutdown; frequency converter displays over-current alarm code.

Screw shaft cannot rotate manually after power cut; obvious hard sludge buildup inside the dewatering stack.

Discharge port no sludge cake output; filtrate discharge volume drops sharply.

(2) Root Cause Classification

Sludge property abnormality: High sand, fiber, hair, grease or sticky organic colloid in raw sludge; untreated coarse impurities entangle screw flights and fill ring gaps.

Improper flocculation conditioning: Mismatched PAM model, insufficient polymer dissolution concentration or under-dosing leads to unformed loose flocs that adhere tightly on screw shaft and ring pieces.

Unregulated operation: Excessive continuous sludge feeding exceeding machine rated capacity; no pre-rinse before startup and no empty running cleaning after shutdown, residual sludge hardens inside stack.

Equipment manufacturing defect: Poor flatness of dynamic-static rings, excessive assembly gap, unpolished screw flight surface accelerating sludge adhesion

(3) Standard Repair Procedures

Emergency blockage relief (light jamming): Cut off sludge feed pump, activate automatic backwash spray system, switch frequency converter to reverse rotation mode for 3–5 minutes to loosen surface sludge deposits, then forward run empty for 20 minutes for self-cleaning.

Moderate blockage disposal: Stop all power supply, lockout tagout (LOTO), remove machine side cover, use high-pressure water gun to flush sludge stack from feed end and discharge end simultaneously, scrape solidified mud with plastic scraper to avoid scratching stainless steel ring surface.

Severe full-stack jamming maintenance: Dismantle the entire multi-disc stack, pull out screw shaft horizontally, soak all ring pieces and screw flights in alkaline cleaning solution for 2 hours to dissolve oil and organic sludge, polish scratch positions with fine abrasive cloth, reassemble after complete air drying.

(4) Long-term Prevention

Install pre-screening basket and magnetic iron remover at sludge inlet; test PAM flocculation effect daily to ensure floc size above 5mm; implement standardized operation SOP: 10min empty spray before startup, 30min empty running cleaning after feed stop.

Fault 2: Motor Overload, Overheating & Frequent Current Protection Alarm

(1) Symptom Manifestations

Motor surface temperature exceeds 85℃ during operation; abnormal burning smell from reducer.

Real-time operating current is 1.5–2 times rated current; thermal relay cuts power frequently.

Screw rotation speed drops significantly, sludge cake output reduces by over 40%.

(2) Root Causes

Process resistance surge: Partial blockage inside dewatering stack, excessive back pressure plate gap resistance, poorly flocculated sludge raising screw torsion load.

Mechanical friction increment: Worn shaft end bearing, loose ring stack compression bolt, deformed dynamic rings generating metal friction resistance.

Electrical system failure: Three-phase power unbalance, aging motor insulation layer, reducer gear oil deterioration leading to transmission resistance rise.

(3) Step-by-Step Troubleshooting & Repair

Parameter inspection first: Record sludge inflow rate, PAM dosing quantity, back pressure plate clearance; reduce feed volume by 30% temporarily, adjust back pressure gap to lower extrusion resistance.

Mechanical friction inspection: Power off, manually rotate screw shaft to judge stuck resistance; disassemble bearing seat, replace aged lubricating grease or damaged roller bearings; retighten all stack fixing bolts evenly.

Electrical circuit maintenance: Detect three-phase voltage balance with multimeter; overhaul motor winding insulation; drain waste gear oil of reducer and fill with designated food-grade stainless steel gear lubricant.

(4) Maintenance Cycle Standard

Replace reducer lubricant every 2,000 operating hours; supplement bearing lithium grease every 7 days of continuous operation.

Fault 3: Abnormal Vibration & Metallic Friction Noise

(1) Symptom Manifestations

Machine body violent shaking during running; metal knocking or scraping sound from multi-disc stack section.

Vibration amplitude exceeds 0.12mm; base anchor bolts loosen after 1–2 weeks operation.

Dynamic-static rings appear local wear marks after disassembly inspection.

(2) Failure Sources

Screw shaft eccentricity: Long-term overload bending, uneven wear of flight outer diameter, misalignment during re-installation after disassembly.

Foreign metal impurities trapped between moving and fixed rings: Scrap iron wire, stone fragments scratch ring surface and cause periodic collision noise.

Foundation & installation defect: Uneven ground base, loose anchor bolts, rubber shock absorber aging and failure.

(3) Professional Repair Workflow

Immediate power cut to avoid further ring abrasion; dismantle sludge stack and clear all hard foreign bodies between ring gaps.

Calibrate screw shaft concentricity with dial indicator; straighten slightly bent shaft via mechanical pressure, replace severely deformed screw flights.

Reinforce equipment foundation: Level machine base with steel shims, tighten all anchor bolts with torque wrench, replace cracked aging shock absorption rubber pads.

Fault 4: Sludge Leakage from Filtrate Tank & Excessive SS in Outlet Water

(1) Symptom Manifestations

Mass fine sludge particles leak through ring gaps into filtrate water; effluent suspended solids exceed 150mg/L.

Sludge splashes out from side gap of multi-disc stack during high-load operation.

(2) Root Cause Analysis

Dynamic-static ring wear: Long-term friction expands ring assembly gap over 1.2mm (standard gap 0.5–1.0mm).

Failed flocculation: Small loose flocs cannot retain solid particles, fine sludge penetrates filter gaps.

Misaligned ring stack assembly: Uneven bolt compression causes partial ring separation gap enlargement.

(3) Repair & Optimization Solutions

Chemical adjustment: Optimize cationic PAM dosage and dissolution concentration; conduct jar test daily to stabilize floc formation.

Worn ring replacement: Take out abraded moving rings, install new 304 stainless steel or ceramic wear-resistant rings, reassemble stack with uniform bolt pressure.

Gap calibration: Adjust gasket thickness between ring groups to control standard filter gap within 0.6–0.9mm.

Fault 5: High Moisture Content of Discharged Sludge Cake (Poor Dewatering Effect)

(1) Symptom Manifestations

Discharged sludge cake soft and sticky, moisture content higher than 85% (design target 75–80%); low solid recovery rate, large cake volume for transportation.

(2) Key Failure Causes

Improper back pressure plate clearance: Overwide gap reduces extrusion pressure inside dewatering chamber.

Low sludge feed concentration: Raw sludge without pre-thickening, too much free water entering machine.

Excessive screw rotation speed: Short sludge retention time inside stack, incomplete water separation.

Severe ring wear reduces interlayer extrusion force.

(3) Repair & Operational Adjustment Steps

Mechanical parameter tuning: Slow down screw speed to 2–4rpm via frequency converter; narrow back pressure plate gap appropriately according to sludge organic proportion.

Pre-treatment optimization: Add sludge thickener tank before screw press to raise feed solid concentration to 3%–5%.

Worn parts replacement: Replace aged dynamic rings to restore original extrusion pressure of dewatering stack.

Fault 6: Dynamic & Static Annular Rings Distortion & Deformation

(1) Symptom Manifestations

Ring plate warps out of flatness, local bending deformation; uneven wear marks on ring contact surface, frequent sludge leakage and blockage after short operation.

(2) Trigger Factors

Overload long-term operation, instantaneous high extrusion pressure impact ring structure.

Sludge with high sand and hard impurities generate point pressure on ring plates.

Low-quality thin-thickness ring material with insufficient yield strength.

(3) Maintenance & Replacement Standard

Mild deformed rings: Heat flatten via stainless steel leveling fixture, reuse after flatness detection.

Severely bent cracked rings: Directly replace with thickened wear-resistant stainless steel rings; increase raw sludge pre-screen strength to reduce hard impurity entry.

Fault 7: Screw Shaft End Bearing Seepage of Water & Lubricant Leakage

(1) Symptom Manifestations

Water penetrates bearing seat leading to grease emulsification; lubricating oil drips onto sludge stack polluting dewatered cake.

(2) Failure Causes

Aging shaft end skeleton oil seal, worn sealing ring due to long-term sludge water erosion, insufficient compression of sealing gland.

(3) Repair Process

Dismantle bearing end cover, remove damaged oil seal and water retaining ring; install new fluorine rubber anti-corrosion sealing parts, evenly compress sealing gland bolts, refill anti-water-wash lithium bearing grease.

Fault 8: Control System Automatic Stop & Electrical Sensor Failure

(1) Symptom Manifestations

Machine cannot start automatically; touch screen displays sensor fault alarm; over-torque protection triggers without obvious mechanical blockage.

(2) Root Causes

Blocked infrared liquid level sensor probe, loose torque limiter signal wire, aging thermal protection switch, short circuit of cable in humid sludge environment.

(3) Electrical Maintenance Steps

Clean sludge deposits on all liquid level and torque sensors with clean water; re-plug and fasten loose signal wiring terminals.

Replace aging thermal relay and damaged torque limiter; wrap exposed cables with waterproof insulation tape.

Regularly drain condensed water inside electrical control cabinet, install dehumidifier to reduce circuit short-circuit risk.

2.1 Quick Fault Self-Inspection Cheat Sheet (On-site 5-Min Diagnosis)

This table helps field operators realize fast on-site diagnosis without professional detection tools, cutting fault judgment time by 80%, suitable for frontline wastewater plant daily operation.

III. Complete Disassembly & Assembly Standard Maintenance Workflow (Major Overhaul Guide)

---

For screw sludge dewatering machine full overhaul every 12 months, follow standardized steps to avoid secondary damage:

Pre-overhaul preparation: Stop all feeding, run empty cleaning for 30min, cut off total power supply and implement LOTO safety lock.

Remove filtrate tank side baffles, disassemble back pressure plate assembly and discharge hopper.

Loosen all stack compression bolts layer by layer, take out dynamic-static ring groups one by one for cleaning and wear inspection.

Pull out screw shaft horizontally via dedicated hoist, inspect screw flight wear, shaft concentricity and end bearing condition.

Clean all components with alkaline detergent, polish scratch surfaces, replace all severely worn spare parts (rings, oil seals, bearings).

Reassemble ring stack in original order, tighten compression bolts crosswise with uniform torque to guarantee consistent filter gap.

Install screw shaft and bearing assembly, refill lubricant, reset back pressure plate clearance according to sludge parameters.

Restore control circuit and auxiliary spray pipeline, conduct no-load test run for 1 hour to check vibration, noise and current stability.

Load test with normal sludge feed, adjust PAM dosage and back pressure gap until sludge cake moisture reaches design standard.

IV. Preventive Daily, Weekly & Monthly Maintenance Checklist (Reduce Fault Rate by 70%)

---

Daily Maintenance (Before & After Each Shift)

Check motor operating current, surface temperature and machine vibration noise.

Activate automatic backwash system to clean sludge stack completely after work shift.

Inspect filtrate SS leakage condition, adjust PAM dosing in time for abnormal flocculation.

Clear sundries on sludge inlet pre-screen basket.

Weekly Maintenance

Supplement lithium grease for screw shaft end bearings.

Inspect anchor bolt tightness and shock absorber aging degree.

Clean sludge and dust inside electrical control cabinet, test sensor signal sensitivity.

Monthly Maintenance

Check reducer gear oil quality, replenish or replace lubricant if emulsified.

Measure dynamic-static ring gap, record wear data for spare parts replacement prediction.

Calibrate back pressure plate opening and frequency converter rotation speed parameters.

Annual Major Overhaul

Full disassembly, component wear detection, replacement of all vulnerable consumables, concentricity calibration of screw shaft, circuit aging replacement and performance overall debugging.

V. Cost Optimization Tips for Fault Repair & Spare Parts Management

---

5.1 Vulnerable Parts Replacement Cycle & Maintenance Cost Comparison Table

This table compares service life, replacement cost and maintenance difficulty of core wearing parts, helping plant managers control operational budget and arrange spare parts inventory reasonably.

Wear parts life prediction: Record ring wear thickness monthly, prepare spare rings in advance to avoid unplanned shutdown loss.

Sludge pre-treatment optimization reduces fault frequency: Pre-removal of sand, fiber and hard impurities cuts ring and screw shaft wear speed by over 50%.

Standardize operation SOP training for site operators; improper manual adjustment accounts for 60% of sudden equipment failures according to wastewater plant operation statistics.

Select corrosion-resistant 304/316L stainless steel consumables to extend service cycle and lower long-term replacement cost.

VI. Conclusion

---

Screw sludge dewatering machine most failures derive from three dimensions: irregular operation & chemical conditioning, mechanical wear without regular maintenance, and abnormal raw sludge characteristics. Accurate fault diagnosis via symptom observation, standardized disassembly repair procedures and cyclic preventive maintenance system can effectively eliminate over 90% frequent breakdowns.

Enterprises can combine daily operation data to build equipment fault early warning mechanism, reduce unplanned shutdown duration, stabilize sludge dewatering efficiency and cut overall operation & maintenance costs of wastewater treatment facilities. For complex mechanical deformation and electrical control system deep faults, professional environmental equipment maintenance technicians should be arranged for on-site overhaul to avoid secondary irreversible damage to core screw shaft and multi-disc stack components.
