Detailed Explanation of DAF Super Dissolved Air Flotation Device | Technical Principles, Process Structure, Industry Advantages and Selection Parameters

In the production processes of industries such as papermaking, printing, food processing, petrochemicals, and coal chemical industries, high suspended solids, oil-containing, and colloidal wastewater are common pollution problems. Especially for small and medium-sized manufacturing enterprises, traditional wastewater treatment equipment generally have problems such as high investment costs, high operating energy consumption, low treatment capacity, and cumbersome maintenance. Most imported high-end wastewater treatment equipment is expensive, making it difficult for small and medium-sized enterprises to bear the one-time investment; while domestic traditional wastewater treatment equipment has limited treatment effects and high long-term operating electricity and chemical costs. Many enterprises can only intermittently start to meet environmental protection inspections, unable to achieve stable compliance discharge and reuse.

In response to the industry pain points of current industrial wastewater treatment, the DAF super dissolved air flotation device introduced in this article relies on the improved pressure dissolved air technology, optimizes the micro-bubble generation structure and the air-water mixing logic, completely breaking through the technical bottlenecks of traditional air flotation equipment. Compared with conventional shallow air flotation, vortex air flotation, and dispersed air flotation equipment, this device has core advantages such as high dissolved air utilization rate, large treatment capacity, low energy consumption, simple operation, and wide adaptability. It can efficiently treat high-concentration suspended solids, oil-containing wastewater, and colloidal wastewater, and is widely applicable to various industrial wastewater treatment and reclaimed water reuse scenarios. It is a preferred wastewater treatment equipment for small and medium-sized industrial enterprises with low cost and high stability.

I. Core Technical Principles of DAF Super Dissolved Air Flotation

---

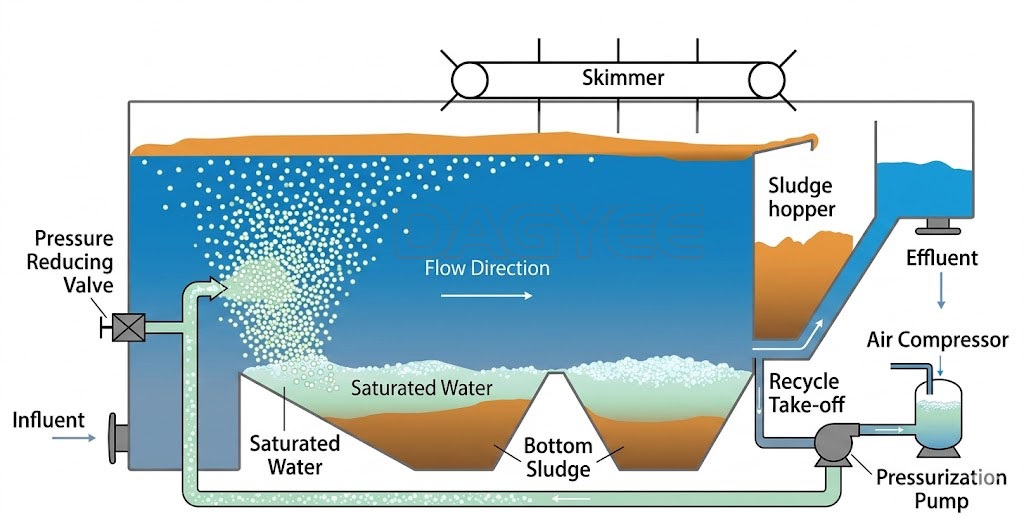

The core logic of dissolved air flotation water purification technology is to utilize the dense micro-bubbles generated by the depressurization of high-pressure dissolved air water to adsorb suspended flocs, colloidal particles, and oil impurities in the water body, changing the overall density of the impurities, making them float to the surface to form sludge, and then automatically separating through the sludge scraping system to achieve water body purification. The treatment effect of the dissolved air flotation equipment mainly depends on three indicators: micro-bubble diameter, bubble group density, and bubble uniformity. These three directly determine the floating capacity of the unit water body and the purification efficiency.

Under normal pressure conditions, the solubility of air in water is only 1.8%. Under conventional pressure (0.3 MPa), the solubility can be increased to 5.4%. The technical shortcomings of traditional air flotation equipment are not insufficient dissolved air volume, but extremely low dissolved air utilization rate. The micro-bubbles produced by conventional equipment are generally above 50 μm in diameter, and the super large bubbles rise too fast, easily breaking water body flocs, and cannot adsorb fine suspended particles. A large amount of dissolved air is wasted inefficiently, ultimately resulting in poor treatment effect and serious energy waste.

The DAF super dissolved air flotation device reconfigures the air-water mixing structure and energy release logic, precisely controlling the micro-bubble diameter to be around 1 μm. According to physical conversion, the same volume of 100 μm micro-bubbles can be decomposed into 1 million 1 μm micro-bubbles, significantly increasing the bubble group density and coverage uniformity. It can fully adsorb fine suspended particles, emulsified oil, metal hydroxides, and other impurities in the range of 1-30 μm, allowing the limited dissolved air to exert the maximum water purification effect, completely solving the industry problems of low treatment accuracy, dissolved air waste, and broken flocs in traditional air flotation.

II. Core Technical Advantages of DAF Super Solvent Air Flocculation Equipment

---

1. Ultra-high treatment efficiency, with water purification accuracy far exceeding that of traditional equipment.

The equipment uses "unit floating volume" as the core technical indicator, which refers to the weight of the dried impurities that can be floated per unit volume of dissolved air water. It is the core standard for measuring the quality of air flotation. Traditional air flotation equipment has a bubble diameter of over 50 μm, with over 85% of bubbles larger than 100 μm being ineffective. The bubble group density is lower than 10⁸ per m³, and the bubbles are sparse and uneven in size, resulting in extremely poor flotation stability.

The DAF super solvent air flocculation equipment optimizes the bubble generation structure, with the micro-bubble diameter stabilized at around 1 μm. The bubble group density exceeds 10² per cm³, the size is uniform, the rising speed is gentle, and it will not impact and break the flocculated particles. The dense micro-bubbles can fully cover the fine suspended particles and colloidal impurities, significantly improving the flotation adsorption rate, ensuring stable and compliant effluent quality, and directly meeting the requirements for production reuse and compliant discharge.

2. Solvent utilization rate is nearly 100%, significantly reducing operating energy consumption.

Solvent utilization rate is the core key to distinguishing high-end air flotation from traditional air flotation. The traditional concave air flotation has a solvent utilization rate of only 10%, and early simple air flotation equipment has a utilization rate of less than 6%. A large amount of high-pressure dissolved air is lost without participating in the flotation reaction, resulting in double waste of energy and resources.

Industry research shows that only bubbles smaller than the suspended particle diameter can achieve effective adsorption. The suspended particle diameters of industrial wastewater that are difficult to naturally settle are mostly 10-30 μm, and the particle diameters of emulsions are only 0.25-2.5 μm. The 1 μm micro-bubbles generated by the DAF equipment can cover all kinds of fine impurity particles, achieving precise adsorption, and the solvent utilization rate is nearly 100%. Compared to traditional equipment, there is no need to blindly increase the dissolved air pressure and increase energy consumption, and the water purification effect can be doubled, reducing operating costs from the root cause.

3. Ultra-high treatment capacity, suitable for high-concentration polluted wastewater.

Traditional conventional air flotation equipment has limited treatment capacity and can only stably treat low-concentration wastewater with SS content of 1000 mg/L or less. Facing high-concentration paper white water, chemical turbid water, and mining wastewater, etc., high-pollution water bodies are prone to clogging, flotation failure, and effluent exceeding standards.
The DAF super solvent air flocculation device breaks through the load limit and can stably treat ultra-high-concentration wastewater with SS suspended matter content of 5000-20000 mg/L. The higher the pollution load, the more obvious the energy-saving advantage per ton of water treated, perfectly adapting to wastewater treatment scenarios in high-pollution industries such as papermaking, chemical, coal chemical, and metal processing, filling the technical gap where traditional air flotation cannot handle high-concentration wastewater.

4. Compact pressure dissolved air design, small volume with large treatment capacity.
Traditional air flotation equipment is based on hydraulic retention time as the core design basis, with large equipment tank volume, wide site aera, and high construction cost. The DAF super air flocculation equipment abandons the traditional design logic and adopts a four-stage pre-mixed air-water structure, significantly increasing the contact area between air and water, allowing air and water to quickly fuse into a homogeneous state in a short period of time, achieving the design advantage of small volume and large treatment capacity. The equipment structure is compact, occupies less space, is easy to install, and does not require large-scale construction renovation, suitable for the renovation of small and medium-sized wastewater treatment stations with outdated equipment and limited sites.

5. High-performance dedicated bubble generator, eliminating bubble merging failure.
The bubble generator is the core component of the air flotation equipment, directly determining the quality of micro-bubbles. Traditional impeller-type and rotating-type bubble generation equipment relies on mechanical shear force to break air, which not only cannot generate micro-bubbles smaller than 10 μm but also forcefully breaks water body flocculants, destroying the foundation of water purification. At the same time, ordinary release devices have low energy dissipation efficiency and slow energy dissipation speed, prone to generating vortices and reverse flow states, causing micro-bubbles to merge and become larger, completely losing their flotation ability. This equipment is equipped with a dedicated and highly efficient bubble generator, featuring three core advantages: Firstly, the energy dissipation rate is as high as 99.9%, which can rapidly reduce the high-energy state of high-pressure dissolved air water to a normal pressure and low-energy state, maximizing energy utilization; Secondly, the energy dissipation speed is extremely fast, completing the energy conversion in just 0.01-0.03 seconds, far exceeding the 0.3-second energy dissipation efficiency of ordinary equipment; Thirdly, there is no vortex or backflow throughout the process, eliminating the merging of micro-bubbles from the very beginning, ensuring that the micro-bubbles are small, uniform, and stable, and continuously outputting high-quality flotation micro-bubbles.

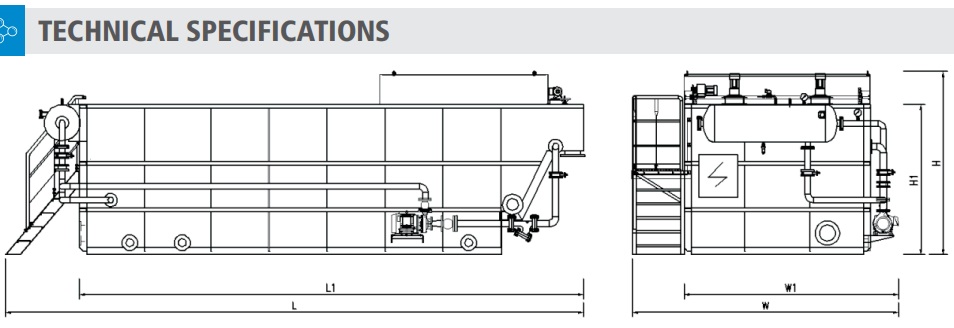

III. Core Technical Parameters of DAF Super Dissolved Air Flotation Equipment

---

The following are the standardized technical parameters of the mainstream models in this series, which are suitable for small and medium-sized industrial wastewater treatment scenarios. They can be customized and adjusted according to the user's treatment water volume and water quality concentration, providing a precise basis for equipment selection and scheme design.

IV. Complete Sewage Treatment Process and Unit Functions

---

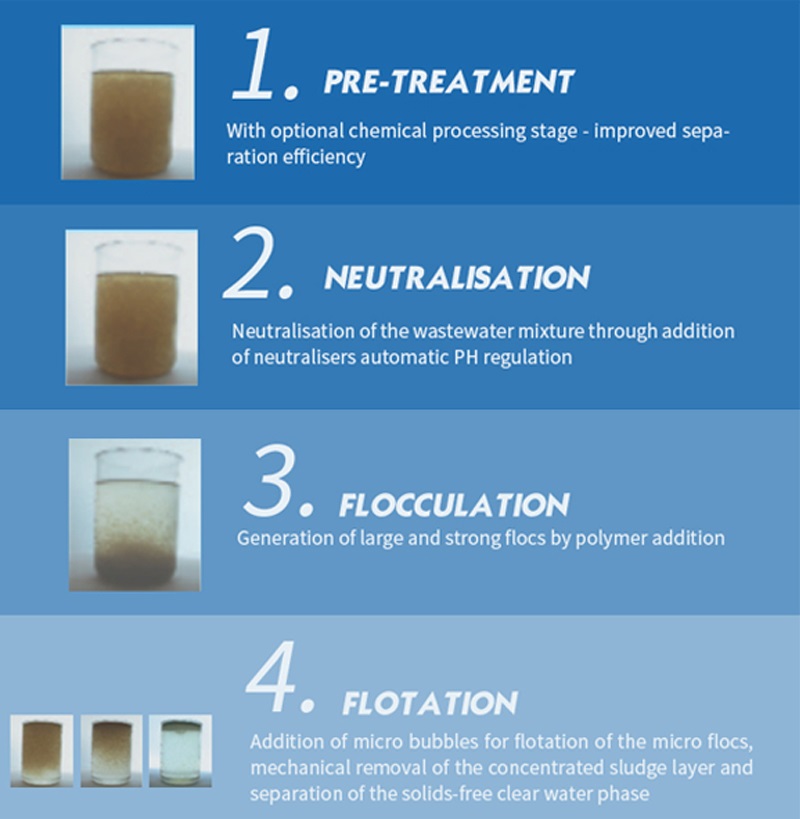

This equipment is equipped with a complete sewage treatment process, adopting a modular process of "pre-treatment + conditioning + air flotation purification + deep filtration". The process logic is clear and the operation is stable. It can efficiently remove pollutants such as SS, COD, BOD, grease, heavy metal hydroxides, etc. in the water body. Each unit performs its own function, and the purification process is carried out layer by layer to ensure stable and compliant effluent.

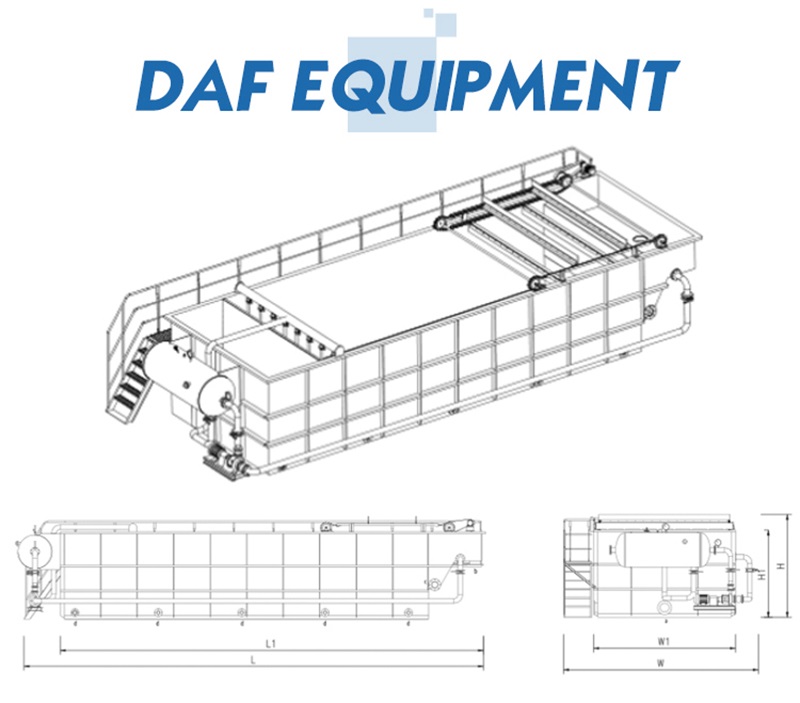

V. Overall Structure of the Equipment

---

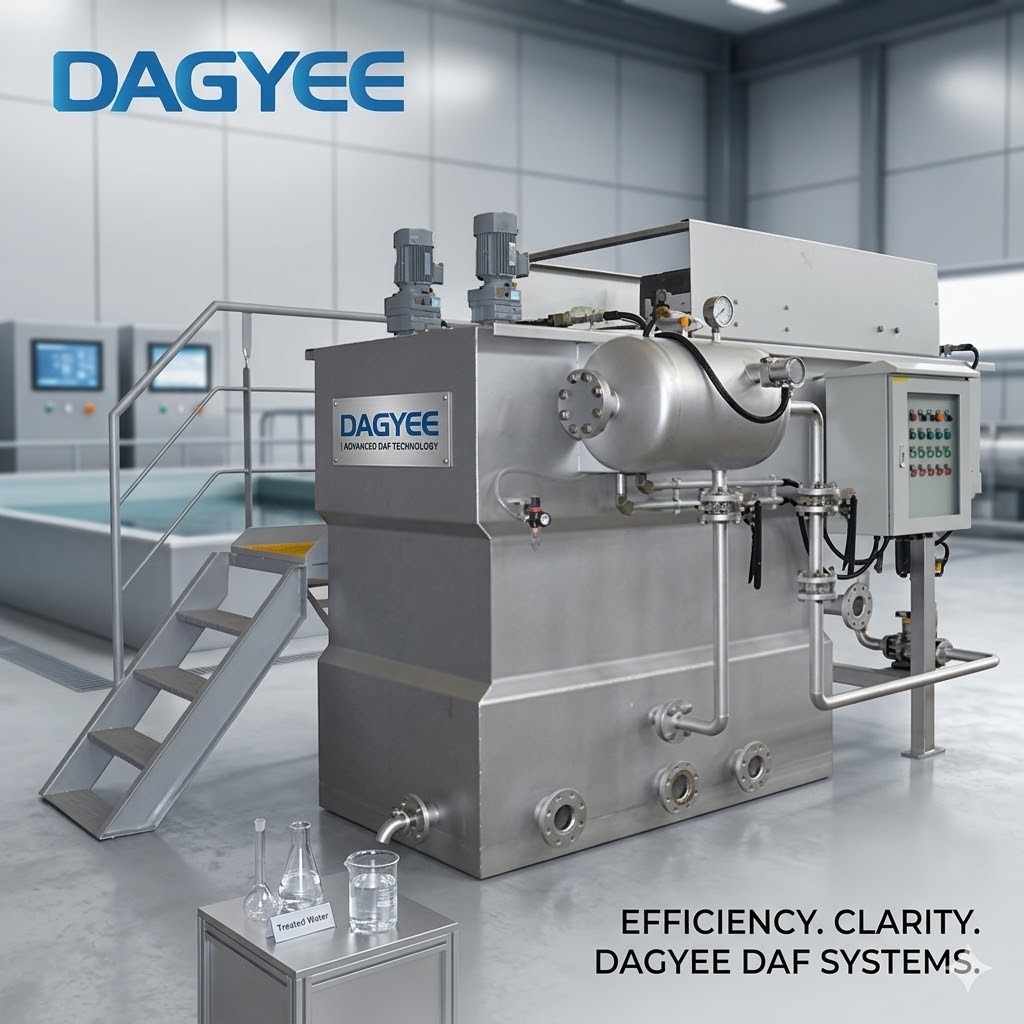

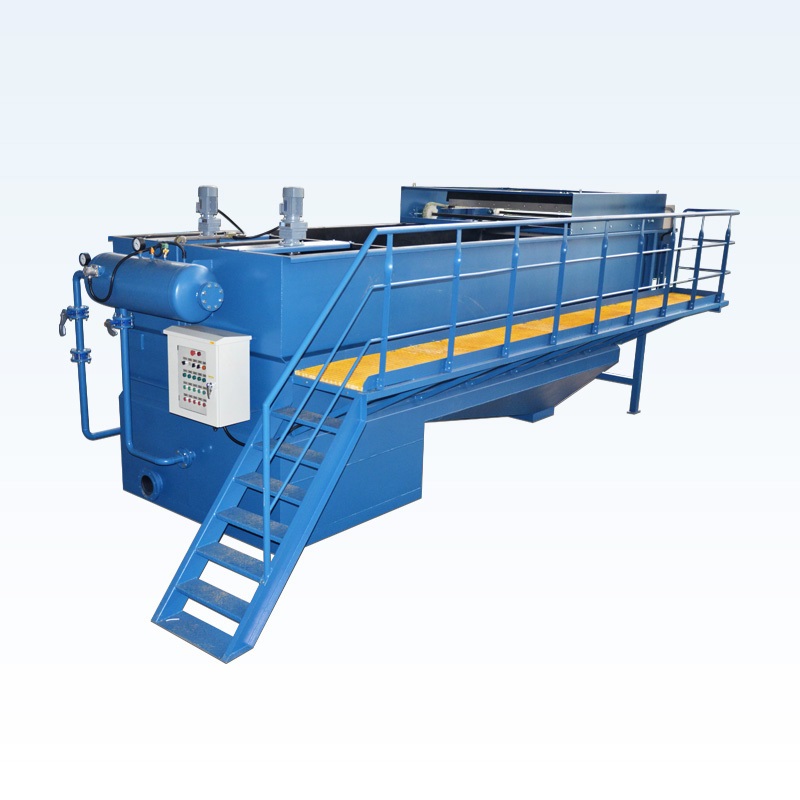

The DAF super dissolved air flotation device is a steel-structured anti-corrosion structure with a modular integrated design. It mainly consists of three parts: the flotation main unit, the dissolved air system, and the chemical dosage system. The structure is compact, the operation and maintenance are convenient, and the failure rate is low.

1. The air flotation main unit (core purification core)

It adopts a circular steel integrated structure, serving as the core carrier for the equipment's water purification. Inside, it integrates components such as release devices, distributors, sludge discharge pipes, water outlet regulation systems, and sludge scraping transmission systems. The dedicated micro-bubble release device in the central position can rapidly depressurize the high-pressure dissolved air water, forming uniform micro-bubble groups, and fully mix and react with the wastewater. The conical distributor can evenly disperse the water and sludge, avoiding excessive concentration in certain areas; the upper rotating sludge scraping system can continuously scrape the floating sludge into the sludge tank and let it flow naturally into the sludge pond, while the bottom pipeline can discharge a small amount of deposited heavy impurities. The water level adjustment handle can flexibly control the water level inside the tank, adapting to different water quality treatment requirements.

2. The high-pressure dissolved air system (power core)

It consists of a dissolved air tank, a gas storage tank, an air compressor, and a high-pressure water supply pump. It is the key system for generating high-quality dissolved air water. The internal structure of the sealed and pressure-resistant dissolved air tank is equipped with baffles and partition sleeves, which can accelerate the diffusion and mass transfer of air and water, allowing air and water to quickly and fully blend, improving the stability and efficiency of dissolved air, and providing continuous, stable, and high-quality high-pressure dissolved air water for air flotation flotation.

3. The drug addition system

It includes two sets of stirring and dissolution tanks and two sets of drug storage tanks, equipped with an automatic stirring device. The equipment can automatically dissolve and store water treatment drugs such as flocculants and coagulants as needed. The water body impurities can quickly form dense flocs, improving the micro-bubble adsorption effect, and further enhancing the solid-liquid separation efficiency.

VI. The application value of DAF super air flotation equipment in the industry

---

This equipment, with its advantages of ultra-high processing load, high-precision purification, low energy consumption, and wide adaptability, can solve complex wastewater treatment problems in multiple industries. Its application effect far exceeds that of traditional dedicated treatment equipment, and has significant cost-effectiveness advantages.

In the papermaking industry, it can efficiently treat high-concentration paper white water, significantly reduce the concentration of suspended solids in the water body, achieve wastewater recycling, and save production water costs; in the metal processing industry, it can quickly separate iron, copper, chromium, zinc, etc. hydroxides of heavy metals, and the copper-containing wastewater can be reduced to below 10mg/L after a single treatment, meeting discharge standards; in the starch processing industry, it can efficiently recover protein resources, with a protein recovery purity of up to 60%, far exceeding the 30% recovery rate of traditional equipment, and having both environmental protection and resource utilization benefits.

At the same time, the equipment can be adapted to scenarios such as coal chemical industry, mechanical processing, and dyeing, effectively separating naphthalene chips, tar, and mechanical processing oil stains from coal-coking wastewater, achieving efficient SS and COD removal without the need for a large amount of flocculants, and meeting the diversified treatment requirements of industrial wastewater.

VII. Comprehensive performance comparison of various air flotation equipment

---

At present, the domestic market has a wide variety of air flotation equipment, including vortex air flotation, shallow air flotation, spiral propulsion air flotation, and dispersed air flotation. The equipment quality varies. The core criterion for evaluating the quality of air flotation equipment in the industry is: micro-bubble quality, energy consumption level, operational stability, and maintenance difficulty. The following table presents a comprehensive performance comparison of various mainstream air flotation equipment, clearly demonstrating the technical advantages of DAF super air flotation.

VIII. Summary

---

The DAF super dissolved air flotation device addresses the core pain points of traditional air flotation equipment, such as low efficiency, small load capacity, high energy consumption, and poor adaptability. By optimizing micro-bubble generation technology, reconfiguring the gas-water mixing structure, and upgrading the dissolved air system, it has achieved comprehensive breakthroughs in dissolved air utilization rate, treatment load, and water purification accuracy. Compared to various traditional air flotation equipment in domestic and foreign markets, this device can not only efficiently treat conventional low-concentration wastewater, but also easily handle complex industrial wastewater with high suspended solids, oil, heavy metals, and colloids, and perfectly adapt to wastewater treatment and reclaimed water reuse scenarios in multiple industries such as papermaking, chemical engineering, food, coal chemical engineering, and mechanical processing.

At the same time, the equipment has the advantages of compact structure, small footprint, simple operation and maintenance, low energy consumption, long service life, etc. It completely solves the dilemma of high investment costs for small and medium-sized enterprises and poor performance of traditional equipment. It is a high-performance and cost-effective preferred equipment for industrial wastewater pretreatment, deep purification, and resource recovery at present, and has the dual values of environmental protection compliance and cost reduction and efficiency improvement.

If you have any needs for dissolved air flotation, please feel free to call us!
