High-Performance Inclined Plate Settler for Oil-Water Separation

Product Item : DLC-010
Category： Lamella Separator
Material: PP (Polypropylene) / Stainless Steel
Certification:CE Certificate
Function:High TSS removal
Applications: Industrial & Municipal Water Treatment
INQUIRY EMAIL

Lamella Separator Description

A Lamella Clarifier is a type of sedimentation tank that uses a series of inclined plates to separate solid particles from liquid. These plates, also known as lamella plates, are arranged at an angle to increase the effective settling area while reducing the footprint of the tank. The inclined plates create a flow pattern that allows solids to settle on the plates’ surface and slide down to the bottom of the tank. The clarified liquid exits the tank through a collection system located at the top of the unit.

Principle

The Lamella Clarifier works on the principle of gravity separation. When wastewater enters the tank, the solids in the liquid begin to settle to the bottom of the tank due to the force of gravity. As the solids settle, they encounter the inclined plates, which increase the effective settling area and allow more solids to settle. The settled solids slide down the inclined plates to the bottom of the tank, where they collect and are removed periodically.

The clarified liquid exits the tank through the collection system located at the top of the unit. The flow rate of the liquid is controlled by an effluent weir, which maintains a constant liquid level in the tank. The effluent weir also prevents solids from escaping with the clarified liquid.

Lamella Gravity Settler

Lamella Separator Model

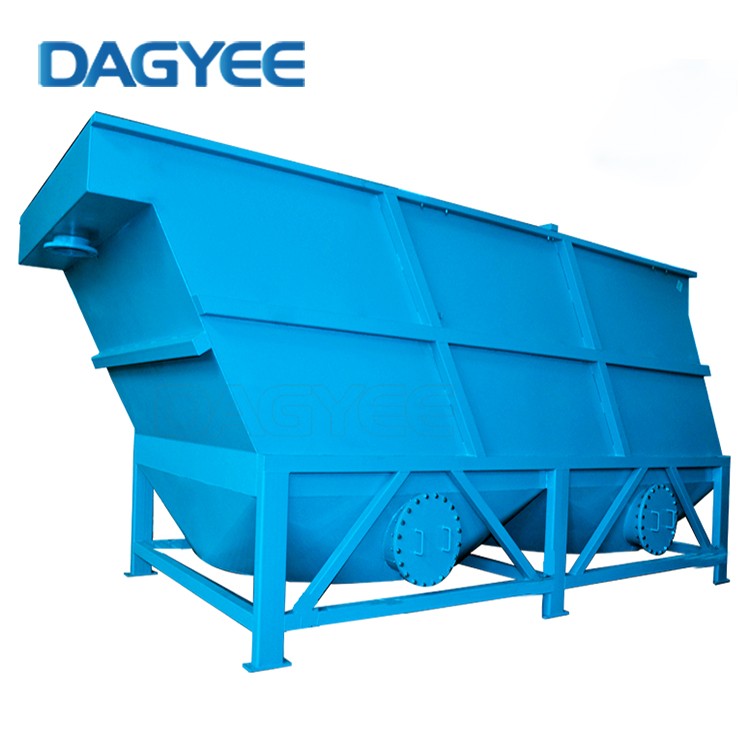

DLC-I Gravity Lamella, V shape mud bucket, simple structure, no energy consumption.

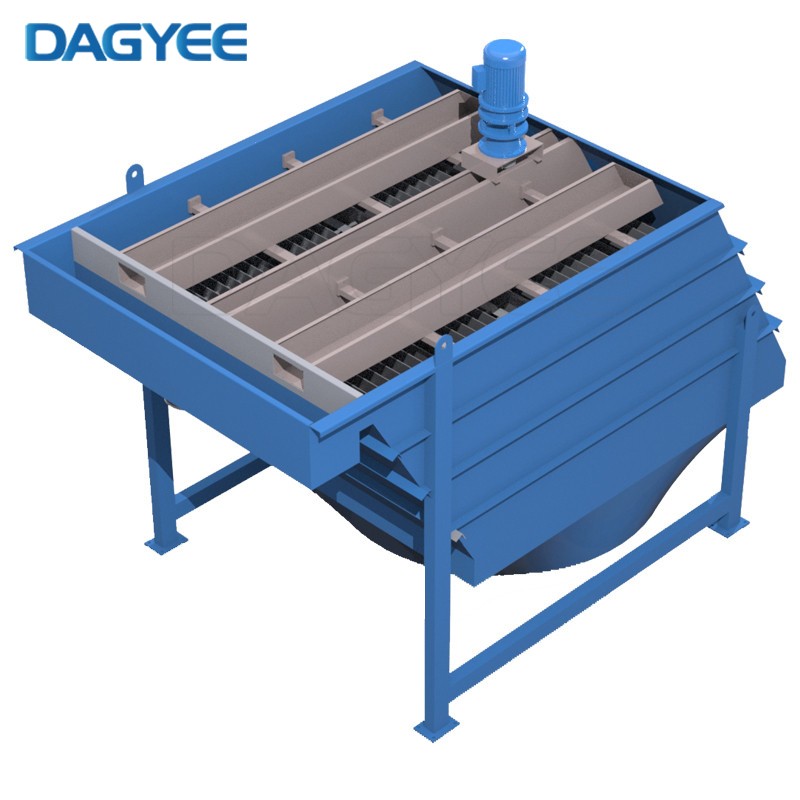

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC Model	Capacities (m³/h)	Piping Connections()				Physical Dimensions(m)
DLC Model	Capacities (m³/h)	Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

Lamella Separator Characteristics

Improved Material: Utilization of high-grade, corrosion-resistant materials that extend the lifespan and efficiency of the clarifiers.
Enhanced Design: Modifications in the plate design and angle to maximize the settlement of solids and reduce the hydraulic retention time.
Smart Controls: Incorporation of sensors and automated systems for real-time monitoring and control of water flow and quality, leading to more responsive and efficient operations.

Lamella clarifiers require less space due to their compact design and provide faster settling times compared to traditional clarifiers. They also have lower retention times and are often more efficient in removing solids.

Inclined Plate Separators
