Customizable Inclined Plate Settler for OEM Projects

Product Item : DLC-010
Category： Lamella Separator
Material: PP (Polypropylene) / Stainless Steel
Certification:CE Certificate
Function: High TTS Removel
Applications: Industrial & Municipal Water Treatment
INQUIRY EMAIL

Lamella Separator Description

A Lamella Clarifier is a sedimentation tank that uses inclined plates to separate solids from liquid. Learn how it works, its advantages, and tips for using it in food processing sites.

Structures

Structural steel support legs
Epoxy painted carbon steel tank
Individually removable FRP plates
Adjustable effluent weir plates
Standard units can be manufactured for flows from 5 gpm to 3000 gpm and above in a
single above-grade tank
One-piece prefabricated units are available with up to 1,000 sf of effective settling area
Single tank construction with integral flash mix/floc compartments for smaller units
Multiple sample connections

Lamella Gravity Settler

Lamella Separator Model

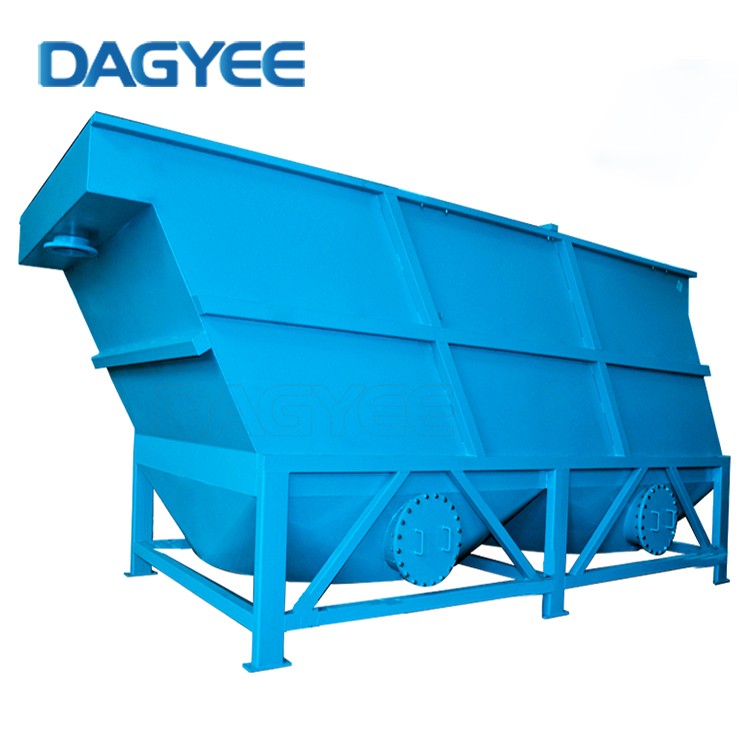

DLC-I Gravity Lamella, V shape mud bucket, simple structure, no energy consumption.

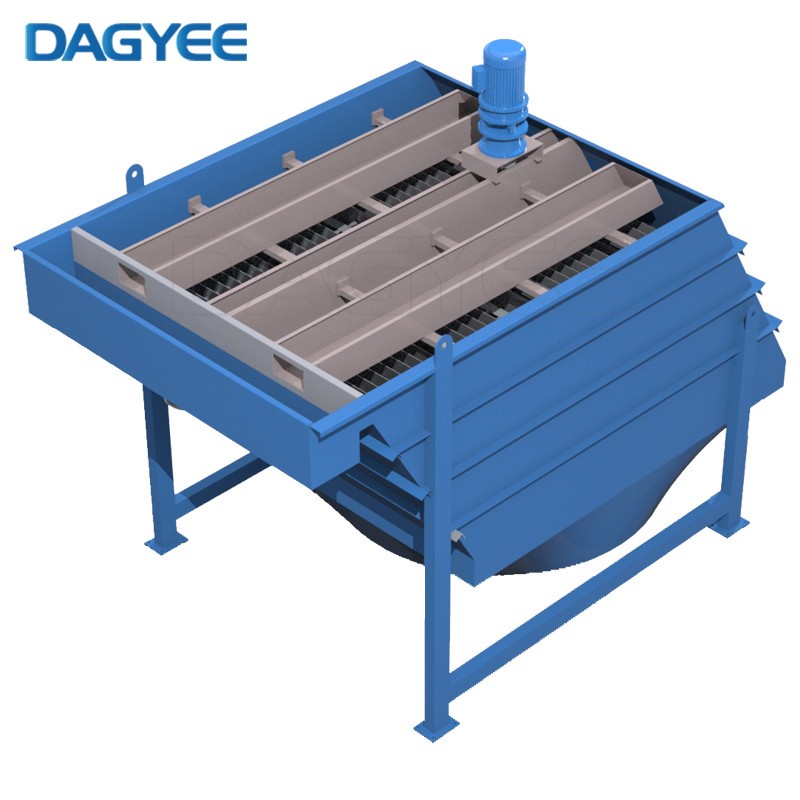

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC Model	Capacities (m³/h)	Piping Connections()				Physical Dimensions(m)
DLC Model	Capacities (m³/h)	Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

Lamella Separator Advantages

The Graver Lamella Clarifier minimizes maintenance and operating, costs with a compact design requiring significantly less space than standard clarifiers. The small footprint allows the Lamella to be installed in- or outdoors and can easily be relocated after installation. The Lamella is ideal in new plants or for upgrading existing installations where space is limited. The system configuration ensures laminar flow conditions, which result in hydraulic uniformity
and high effluent quality. Point-source treatment with the Lamella is appropriate for many applications.

Inclined Plate Separators

Lamella Separator Applications

Water following physical-chemical treatment
Tailings in mining and metallurgical beneficiation
Solutions from gold leaching processes
Wet scrubbing effluents
Effluent treatment in pulp and paper mills
Filter backwash

Lamella plate clarifier
