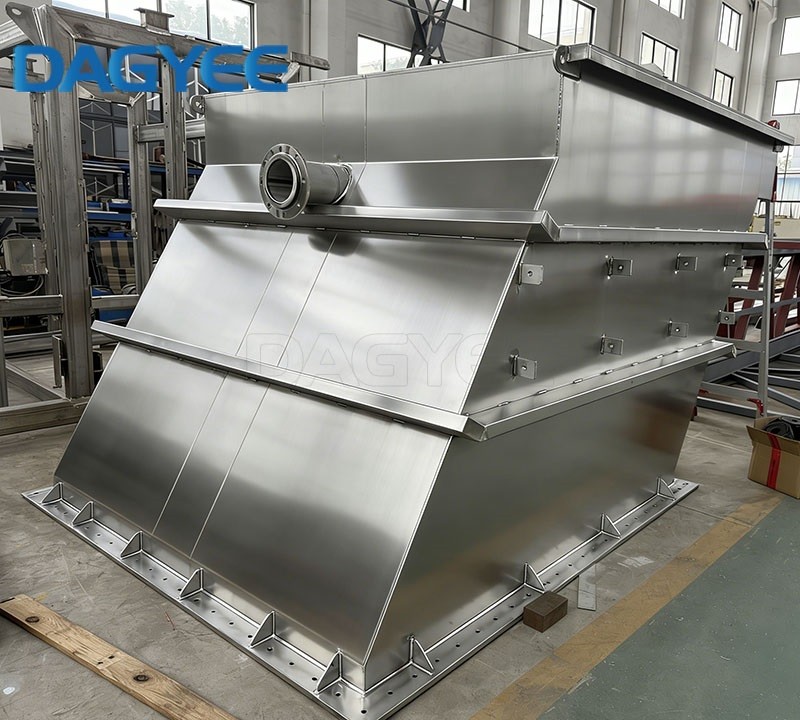

Integrated Flocculation 304 Stainless Steel Lamella Clarifier with Static Mixer

Integrated Flocculation 304 Stainless Steel Lamella Clarifier with Static Mixer

Product Item : DLC
Category： Lamella Separator
Certification:CE Certificate
Capacity:1-200 m3/h
Function:High TSS removal
Wastewater Treatment Plants
INQUIRY EMAIL

Lamella clarifier description

The DAGYEE Lamella Clarifier is designed to provide low cost, efficient solids removal from a wide range of waste and process liquids. The inclined plate design allows the total gravity settling area to be as much as ten times more than the actual floor space occupied by the clarifier. Integral chemical mixing and flocculation tanks are available, as well as options for enhanced sludge thickening.

Lamella clarifier also called inclined plate sediment tank. It is good at high efficient combined type settling tank; set many dense inclined tube packing in sediment area, to make the suspended impurity in water sediment, water rise flow along inclined tube, the separated sludge down to the tank bottom along the inclined tube by gravity, then discharge it in concentration. Such tank can improve sediment efficiency 60~70%, it can improve treatment capacity 3~5 times in the same area.

The implementation of lamella clarifiers in wastewater treatment is widely recognized due to their numerous advantages, such as their ability to handle high flow rates and their versatility across various industries. They are an essential element in the treatment process, appearing in sectors like municipal sewage treatment, industrial effluent processing, and water recycling. Proper installation and maintenance of lamella clarifiers are crucial for their optimal performance and compliance with environmental regulations. Recent technological advancements have further improved the efficacy of these systems, making them more sustainable and cost-effective solutions for wastewater management.

Lamella clarifier structure and working principle

1. Lamella clarifier structure

A Lamella Clarifier is composed of several key components, each crucial to the efficient separation of solids from liquids in wastewater treatment. The design facilitates a smaller footprint and effective processing in each of the distinct zones.

Inlet Zone

The Inlet Zone is where the wastewater initially enters the clarifier. This area is designed to distribute the flow evenly across the width of the unit, which is essential for the efficient operation of the clarification area. Energy dissipation devices within this zone help in reducing the velocity of the incoming water, minimizing turbulence as it moves to the clarification area.

Clarification Area

In the Clarification Area, sets of inclined plates or lamellae are installed. These plates increase the effective settling area of the unit. As water flows upward between the plates, solids settle onto the plates and slide down due to gravity into the sludge collection zone. The spacing and inclination of the plates are designed to optimize the removal of solids and the flow dynamics.

Sludge Collection Zone

The Sludge Collection Zone is situated beneath the lamellae, where settled solids collect and concentrate. This zone typically includes mechanisms, such as a sludge hopper or conveyors, to periodically remove the accumulated sludge for further treatment or disposal. Efficient sludge removal is critical for maintaining the capacity and effectiveness of the clarifier.

Outlet Zone

Finally, the Outlet Zone is where the clarified water exits the system. This portion typically features launders or weirs that allow the clean water to flow out without disturbing the sedimentation process. The clarified water is often subject to additional treatment processes before being discharged or reused.

2. Lamella clarifier working priciple

The DAGYEE Vertical Clarifier is designed to remove solids from wastewater and other process liquids. The Flash Mix and Flocculation Tanks (optional) allow for the addition of chemicals and polymers that will aid the settling process — adjusting pH to precipitate dissolved solids and/or enhancing the agglomeration of suspended particles into heavier, more settle-able floc. The liquid is fed from these tanks into the clarifier through the inlet chamber, which directs flow into the separation section.

The liquid then enters the lower area of the laminar plates through side slots which distribute it across the entire width of the plates. Particulate settles onto the face of the plates and slides down to the clarifier bottom. The clarified liquid exits the plate sections through weirs at the top of the unit which are designed to develop and control adequate pressure drop, maintaining laminar flow through the plates. The clarified liquid then flows into the effluent chamber and out of the clarifier.

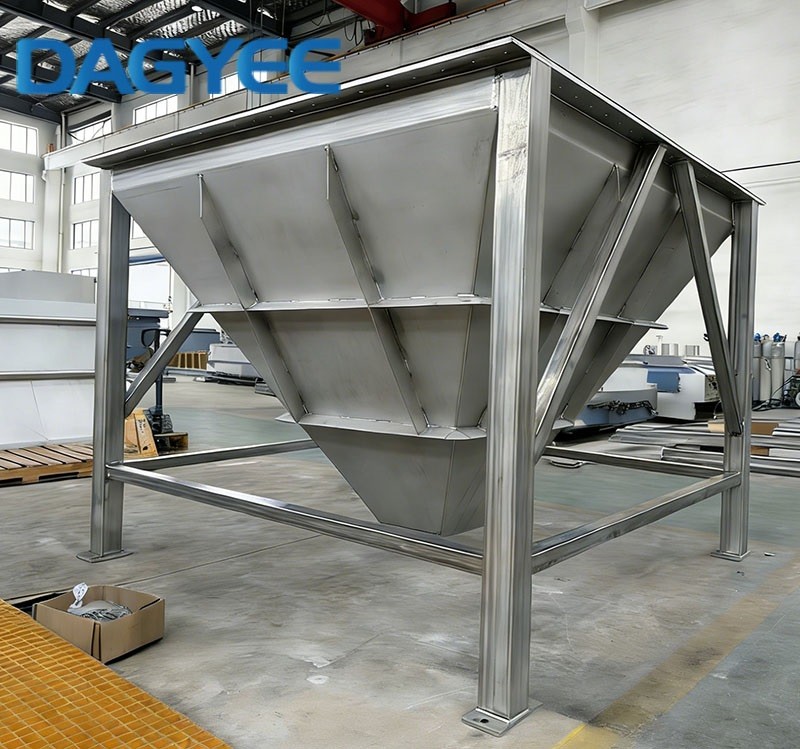

Settled solids collect at the bottom of the pyramid sludge hopper and are removed from the clarifier. A Sludge Thickener (optional) with rake mechanism may be utilized in place of the pyramid hopper when applicable.
The unique, modular design of the DAGYEE Parallel Plate Vertical Clarifier allows for easy removal of individual laminar plate modules from the clarifier for inspection.

Lamella clarifier available options

• Flash mixing/flocculation tank with agitator

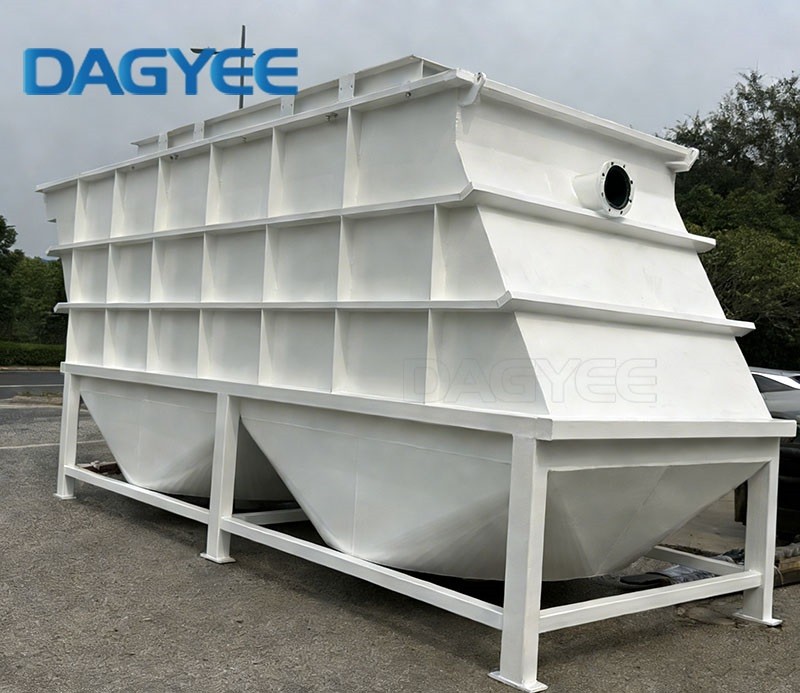

• Full glass steel or stainless steel structure

• Concrete tank design

• Special coatings and plates

• Integrated mechanical sludge thickener

• Overhaul platforms and ladders

• In-house laboratory analysis to optimize equipment

• Drinking water design

• Gasket and removable cover

• Automatic desilting

• Instrumentation and control

• Chemical feed equipment

• Sludge treatment and dewatering

• Pilot size units for field testing

Lamella clarifier model

1. Lamella clarifier type

DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

2. Lamella clarifier specification

DLC Model	Capacities (m³/h)	Inlet (mm)	Effluent (mm)	Sludge (mm)	Backwash (mm)	L (m)	W (m)	H (m)
DLC 5	5	80	80	50	50	2.55	1.6	2.9
DLC 10	10	100	100	50	50	3.35	1.82	3
DLC 15	15	100	100	50	50	3.35	2.02	3
DLC 20	20	100	100	50	50	3.35	2.02	3
DLC 30	30	150	150	50	50	4.2	2.22	3
DLC 40	40	150	150	50	50	4	2.8	3
DLC 50	50	200	200	50	50	4.65	2.82	3
DLC 60	60	200	200	50	50	4.7	3	3
DLC 70	70	250	200	50	50	6.4	2.6	3
DLC 80	80	250	200	50	50	6.8	2.82	3
DLC 100	100	250	250	50	50	7.05	3.02	3

Lamella clarifier advantage

Lamella clarifiers present several benefits in wastewater treatment processes.

They are designed to maximize settling efficiency while minimizing the footprint required.

Compact Design: Lamella clarifiers utilize inclined plates, which provide a large effective settling area within a compact unit. This design vastly increases the surface area for sedimentation compared to conventional clarifiers.

High Efficiency: Due to the increased surface area from the inclined plate design, settling is more efficient. Suspended particles are effectively removed, making it suitable even for high-flow applications.

Cost-effectiveness: The efficiency of lamella clarifiers can lead to reduced operational costs. They offer better process performance in a smaller space, leading to potential savings in construction and land costs.

Flexibility: These clarifiers can be used in various settings, including both traditional and parallel treatment trains, in new or existing wastewater facilities.

Reduced Sludge Volume: An efficient solid-liquid separation results in less sludge volume, which subsequently reduces the cost associated with sludge handling and disposal.

Low Maintenance: The simplicity of the lamella design often results in lower maintenance needs. Fewer moving parts equate to less wear and tear, as well as lower operational complexity.

By providing advantages such as a compact footprint, efficient processing, and low maintenance, lamella clarifiers have become a favorable option for many wastewater treatment facilities aiming to improve their solid-liquid separation stages.

Environmental benefits: The efficient separation of solids from liquid in a Lamella Clarifier results in a cleaner effluent, which can reduce the environmental impact of wastewater discharge.

Modular Design: The modular nature of the system facilitates easy expansion, allowing for scalability and adaptability to changing processing requirements.

Lamella clarifier feature

Standard corrosion-resistant FRP plates increase life expectancy.

Plates available in several FRP grades can be used for high/low pH, high temperatures, and other extreme conditions.

Plates available in various stainless steel grades allows for custom applications to be tackled.

Rapid Mixing and Flocculation packages allow chemical use for improved overflow quality.

Low power requirements for all drives and motors reduce operating cost.

Optional FRP or rubber lined steel tank construction provides additional protection for highly corrosive applications.

Optional NSF-61 materials of construction available for potable water applications.

Optional rake mechanisms improve thickening and underflow quality.

High cleaning performance with low space requirements.

For new constructions or retrofitting existing circular or rectangular clarifier tanks to increase cleaning efficiency.

Use of durable and high-quality lamella packages with low installation costs.

Excellent sludge removal due to chevron-shape geometry.

Also available as plug-and-play modular units in various standard sizes.

Lamella clarifier application

DAGYEE lamella clarifiers are versatile and provide solutions for many water treatment processes.

Some specific applications include:

TSS, Solids/Particulate Removal: DAGYEE clarifiers are highly efficient in removing total suspended solids (TSS) and particulates from water, reducing contamination levels and making the effluent suitable for further treatment or discharge.

Dissolved Solids and Metals Precipitation: The clarifiers can be customized to add chemicals that precipitate dissolved solids and heavy metals, making it easier to remove them during the settling process.

Ballasted Flocculation: These clarifiers can also incorporate ballasted flocculation processes, where heavier particles are formed and settle more quickly, enhancing the overall clarification process.

Pre-Treatment for Filtration/Membrane Processes: DAGYEE Lamella Plate Clarifiers serve as a critical pre-treatment step before filtration or membrane processes, effectively reducing the load on downstream equipment and improving the longevity and efficiency of filtration systems.

Filter Backwash Clarification: These clarifiers are often used in municipal water treatment plants to treat and clarify filter backwash water, minimizing waste and improving the efficiency of filtration systems.

Leachate Clarification: In industrial and landfill leachate treatment,DAGYEE Lamella Plate Vertical Clarifiers remove solids and pollutants, making the leachate suitable for further processing or discharge.

Industrial Process Water Clarification: Industrial plants use DAGYEE clarifiers to remove contaminants from process water, making it safe for reuse in production or discharge.

Cooling Tower Water Clarification: Cooling towers generate large amounts of contaminated water, which can be treated using Lamella Plate Clarifiers to remove solids, scale, and corrosion byproducts, ensuring the efficient operation of cooling systems.

Surface/Raw Water Treatment: For municipalities and industries that rely on surface or raw water, Lamella Plate Clarifiers are essential in removing suspended solids, organic matter, and other contaminants to make the water suitable for use.

Water Recycling/Reuse: As water conservation becomes increasingly important,DAGYEE Lamella Plate Vertical Clarifiers play a vital role in water recycling and reuse programs by effectively removing solids and preparing the water for reintroduction into industrial or municipal systems.

Municipal and Industrial Processes: These clarifiers are widely used in both municipal and industrial processes for treating wastewater and process water, improving water quality and ensuring compliance with environmental regulations.
