The elimination of solids from liquids requires the use of liquid or powder polymers. This is achieved with polymer preparation and metering systems. The experts in wastewater treatment at DAGYEE understand how to provide the efficient technology to implement this specialist application.

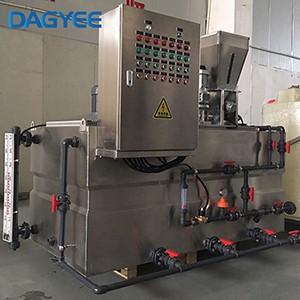

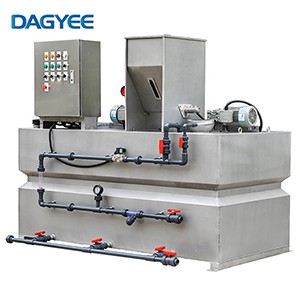

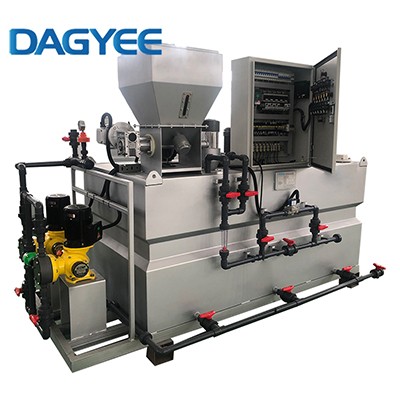

Polymer Dosing System has treee comparments. The first one is preparation compart- ment, the second one is ageing department and the last one is storage compartment. These three parts are seperated from easch orher by welded plates. Polymer Storage and feeding hooper is a steel small tank in which polyelectrolyte is stored. Polyelectrolyte in this hoop- er doses by the mounted feeding screw bottom of the hooper.
Polymer preparation unit model
| Model | Capacity L/H | Volume L | Timing H | Dimensions MM | Weight KG | Power KW |
|---|---|---|---|---|---|---|
| DT300 | 300 | 450 | 0.6-1 | 1500*1000*500 | 300 | 1.8 |
| DT500 | 500 | 750 | 0.6-1 | 1500*1000*650 | 420 | 1.8 |
| DT1000 | 1000 | 1500 | 0.6-1 | 2000*1000*900 | 500 | 2.8 |
| DT1500 | 1500 | 2250 | 0.6-1 | 2000*1200*900 | 620 | 3 |
| DT2000 | 2000 | 3000 | 0.6-1 | 2500*1200*1000 | 800 | 3.9 |
| DT3000 | 3000 | 4500 | 0.6-1 | 3000*1500*1000 | 950 | 5.3 |
| DT5000 | 5000 | 7500 | 0.6-1 | 5000*1500*1000 | 1250 | 7 |
| DT10000 | 10000 | 15000 | 0.6-1 | 4800*1800*2000 | 3600 | 7 |
It is an all-in-one polymer preparation system for the batching of liquid and powder flocculants in
a broad range of water-treatment applications in industries such as wastewater, paper, chemical,
petrochemical and mineral processing.
Continuously working with 3-tank integration design (mixing tank, aging tank, storage tank), easy to operate and maintain, low total cost.
Can be extended as a more automatic 2 storage tank type in accordance with the actual needs.
With powdered or liquid state (optional) dual feed design to meet different needs.
Polymer preparation unit application
Aid condensation of city sewage
Aid condensation ofindustry sewage
Disposal and deposit of sludge
