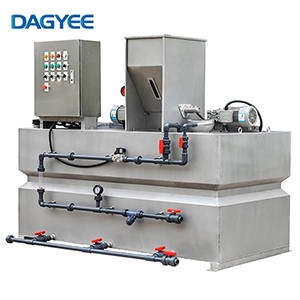

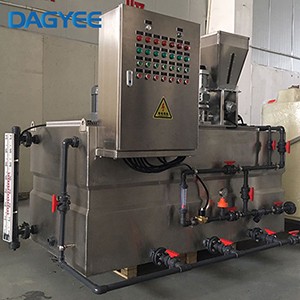

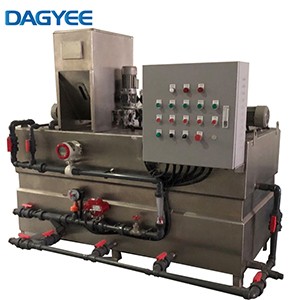

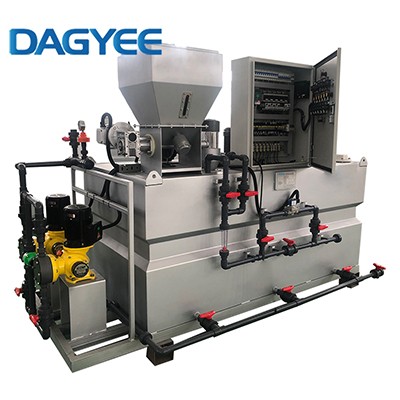

Polymer preparation units are automated systems for the preparation of liquid or powdered polymers, designed for the fully automated dosing of polymer solutions.
The Polymer Dosing System can be used to batch flocculation aids for the preparation of ready-to-use polymer solutions. The design is optimized to ensure that the polymer maturation process is completed with minimal footprint.
It applies a jet mixer, using high-speed water power to break up the polymer powder which will improve the fineness, increase the contact of water and polymer powder and reduce the time of dissolution. The equipment adopts the design of three tank overflow combination, that is, mixing, aging and storing. The proportion difference caused by the gravity and solubility will automatically separate the dissolved and undissolved solution.
Polymer preparation unit model
| Model | Capacity L/H | Volume L | Timing H | Dimensions MM | Weight KG | Power KW |
|---|---|---|---|---|---|---|
| DT300 | 300 | 450 | 0.6-1 | 1500*1000*500 | 300 | 1.8 |
| DT500 | 500 | 750 | 0.6-1 | 1500*1000*650 | 420 | 1.8 |
| DT1000 | 1000 | 1500 | 0.6-1 | 2000*1000*900 | 500 | 2.8 |
| DT1500 | 1500 | 2250 | 0.6-1 | 2000*1200*900 | 620 | 3 |
| DT2000 | 2000 | 3000 | 0.6-1 | 2500*1200*1000 | 800 | 3.9 |
| DT3000 | 3000 | 4500 | 0.6-1 | 3000*1500*1000 | 950 | 5.3 |
| DT5000 | 5000 | 7500 | 0.6-1 | 5000*1500*1000 | 1250 | 7 |
| DT10000 | 10000 | 15000 | 0.6-1 | 4800*1800*2000 | 3600 | 7 |
High efficiency mixers: Provide a low flow mixing for a homogeneous flocculant polymerisation without mechanical deterioration.
Optimised process: Visual access to the process and alarms, fieldbus distributed control (optional) provides informative and easy to access equipment and status application updates, controlled costs. Intelligent system that feeds the process when needed, regulated by an ultrasonic level switch.
1. Fully automatic operation including automatic dosing, dissolving and feeding
2. The highly precise dry polymer dosing device and the well-designed heater device can prevent the polymer from caking
3. The dosage of dry powder and water can be adjustable, so the solution with any concentration can be prepared
4. Optional: Vacuum feeding machine
5. Optional: on-line dilution system
Polymer preparation unit application
The Polymer Preparation Unit (PPU) by Enviroflex is a fully automatic system designed for the continuous preparation and dosing of polymer (flocculant) solution used in a wide range of applications, including:
Municipal and industrial wastewater treatment
Mining and mineral processing (tailings, thickening)
Oil & gas operations (drilling fluid conditioning, produced water treatment)
Chemical and food processing industries
