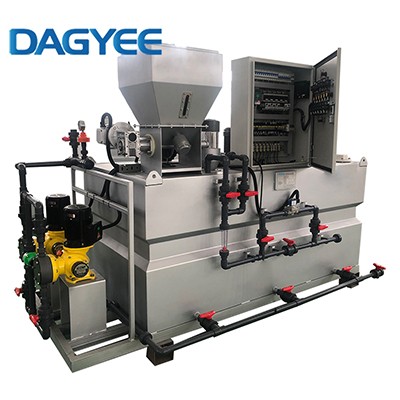

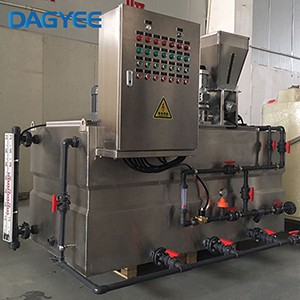

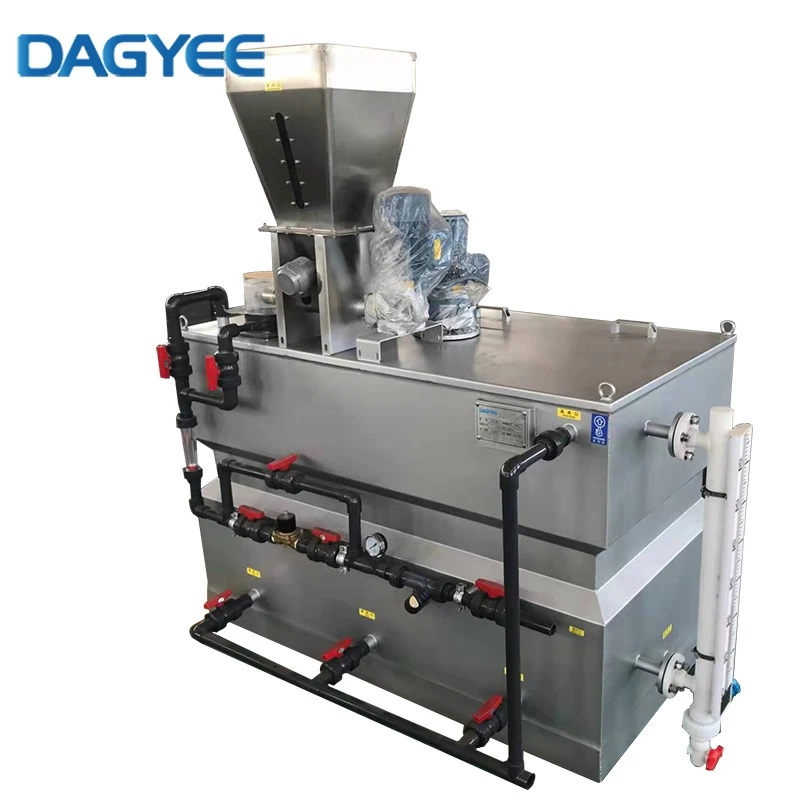

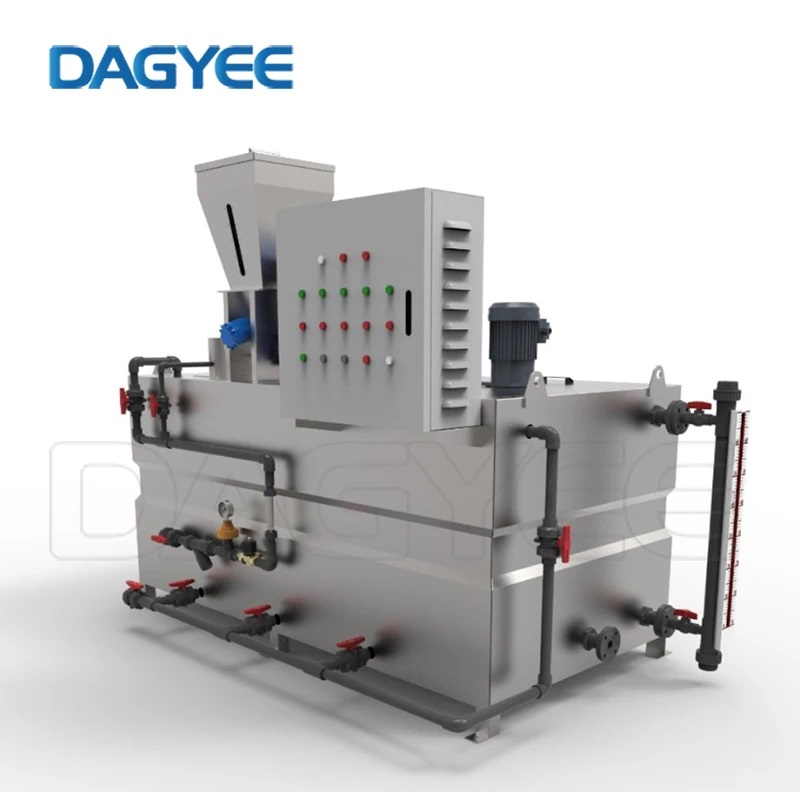

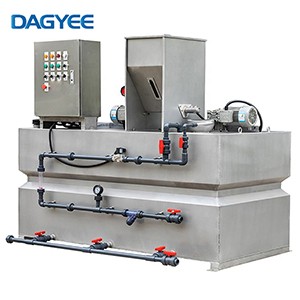

Mobile Polymer Preparation Unit for On-Site Water and Wastewater Treatment

Mobile Polymer Preparation Unit for On-Site Water and Wastewater Treatment

Product Item : DPT-1000
Category： PAM Polymer Preparation unit
Capacity:300-10000L
Motor: SEW/NORD/Customize
Electrical component: Schneider/Omron/Customize
Certification: SGS/CE/ISO 9001
INQUIRY EMAIL

polymer preparation unit description

The DAGYEE unit provides automatic and continuous preparation of the polymer solution using a constant and uniform quality, resulting from:

One two-impeller mixer located in the preparation compartment (single impeller in the maturation compartment),
Optimized maturation cycles.
By fitting with an optional dilution unit, the main solution can then be diluted.

Polymer preparation unit principle

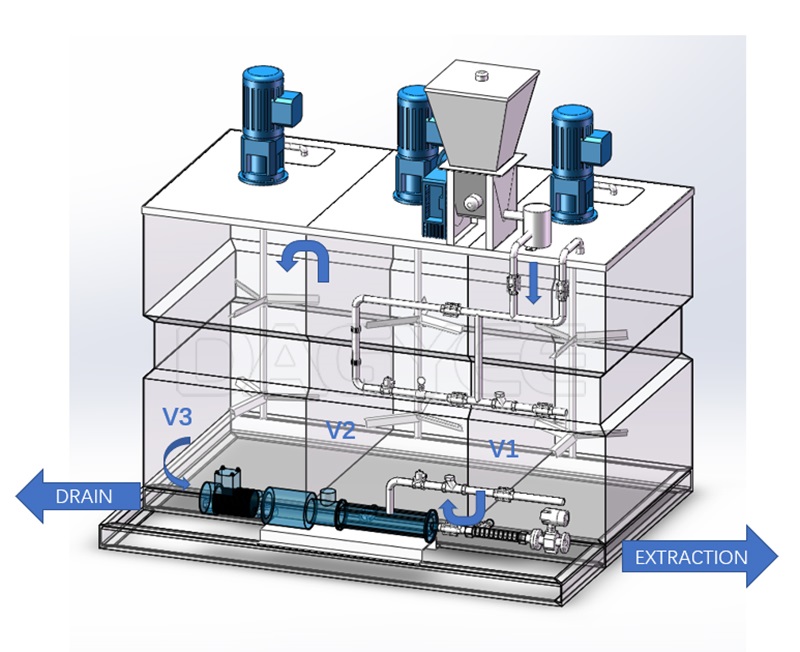

Polymer Dosing System has treee comparments. The first one is preparation compart- ment, the second one is ageing department and the last one is storage compartment. These three parts are seperated from easch orher by welded plates. Polymer Storage and feeding hooper is a steel small tank in which polyelectrolyte is stored. Polyelectrolyte in this hoop- er doses by the mounted feeding screw bottom of the hooper. There are two mixers in the unit. In the first compartment, there is a rapid mixer used for polyelectrolyte prepration and in the second compartment, slow mixer for ageing. Units can be manufactured in different capacities depending on the requirements.

Polymer preparation unit model

<span style="font-family:Verdana;">设备规格表</span>

Model	Capacity L/H	Volume L	Timing H	Dimensions MM	Weight KG	Power KW
DT300	300	450	0.6-1	15001000500	300	1.8
DT500	500	750	0.6-1	15001000650	420	1.8
DT1000	1000	1500	0.6-1	20001000900	500	2.8
DT1500	1500	2250	0.6-1	20001200900	620	3
DT2000	2000	3000	0.6-1	250012001000	800	3.9
DT3000	3000	4500	0.6-1	300015001000	950	5.3
DT5000	5000	7500	0.6-1	500015001000	1250	7
DT10000	10000	15000	0.6-1	480018002000	3600	7

Polymer preparation unit advantage

■ Well designed machine frame
Precious conveying, delicate pre-soaking device and the constant temperature heating method can reduce agglomeration phenomenon caused by improper operation and prevent the line from clogging, so as to ensure the stable concentration.

■ Trustworthy operation
The unique structure and proper rotating speed of the mixer not only can ensure the homogenization solution, but also will not destroy the polymer molecular chain.

Polymer preparation unit feature

Consistent, lump-free polymer solution
Post-Dilution capability – doubles capacity and enables effluent reuse
Fast return on investment due to savings in chemical, labor, and improved process efficiency
Construction in Stainless Steel 304 (DIN 1.4301) for corrosion resistance
Advanced automation with Siemens PLC & SCADA, including remote access
Easy maintenance – drainable tank design, clean-in-place features

Polymer preparation unit application

Chemical Treatment Systems
Industrial Wastewater Treatment Systems
– Grease Industries
– Sugar Industries
– Leather Industries
Wastewater Treatment Systems
Filtration Systems
Sludge Dewatering;
– Conditioning Chemical or Excess Biological Sludge
