Industrial Cartridge Filter Housing for Liquid Filtration Systems

Cartridge Filter Housing Description

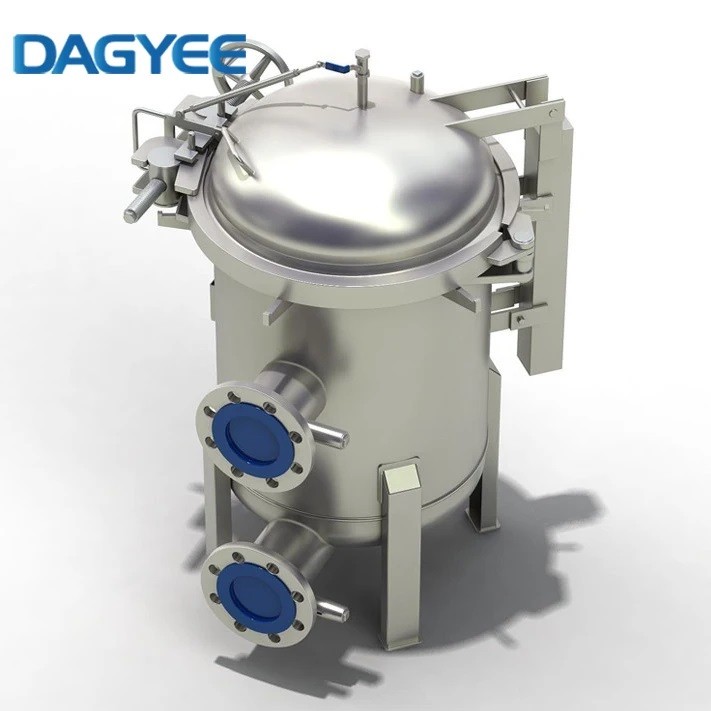

Cartridge filter housings are critical components ensuring efficient and effective filtration. DAGYEE manufactures a broad line of both ASME code vertical and horizontal cartridge housings with standard flow rates of up to 8,000 GPM.  Housings are built to meet project specifications. DAGYEE is the custom manufacturer of cartridge filter housings for industrial filtration needs.

Cartridge Filter Housing Function

Filtration

The fluid enters the housing through the inlet and passes through the filter cartridges. As the fluid flows through the cartridges, contaminants are trapped within the filter media, allowing clean fluid to exit through the outlet.

Accumulation

Over time, contaminants accumulate within the filter cartridges, forming a layer of debris that can reduce filtration efficiency and increase pressure drop.

Replacement

When the differential pressure across the filter cartridges reaches a predetermined threshold, indicating that the cartridges are clogged, they need to be replaced. This ensures continuous and efficient filtration.

Maintenance

The housing is designed for easy access, allowing for quick and straightforward replacement of filter cartridges. This minimizes downtime and ensures consistent filtration performance.

Cartridge Filter Housing Parameter

Cartridge Filter Housing Advantage

• Single cartridge design
• Patented Up-flow design
• Coated option available
• Flow rates to 150 GPM (WB) and to 600 GPM (WB 5x170FL)
• Offered in 304 / 316 stainless steel

Cartridge Filter Housing Characteristics

• Combination cyclone separator and cartridge filter in a single design
• Patented Up-flow design
• Flow rates to 2,400GPM (SBHF), 1,200GPM (SB), 150GPM (HP)

Cartridge Filter Housing Application

• Water
• Chemicals & coatings
• Pharma
• Oil & gas
• Food & beverage
• OEM
