Compact Static Inline Mixers for Continuous Flow Processing Systems

Compact Static Inline Mixers for Continuous Flow Processing Systems

Product Item : SK
Category： Static Mixer
Installation: In-line Pipeline, Vertical/Horizontal
Flow Capacity: 5-500 GPM, Customizable

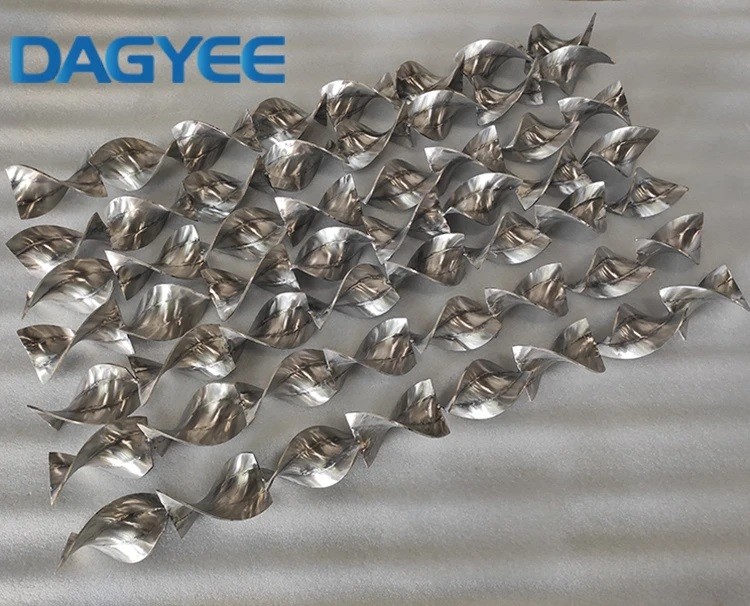

Element Design: Spiral, X-pattern, Kenics Type
Temperature Range: -100°F to 500°F
INQUIRY EMAIL

Static Mixers

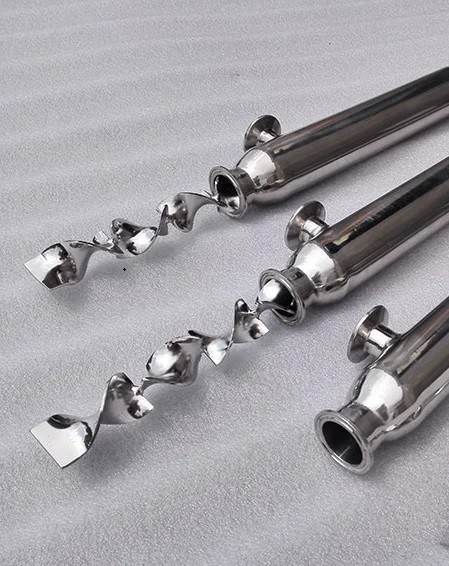

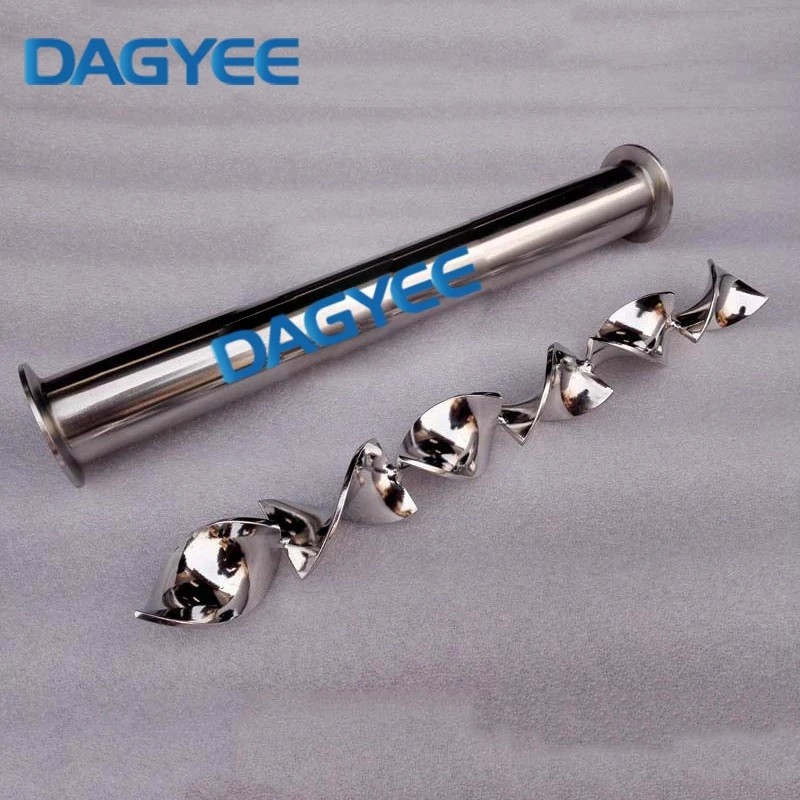

In-line static mixers are specialty mixers installed in the line and mix fluids as you pump them through a pipeline.

Static Mixer Function

Static mixers serve to put liquid in motion in order to achieve homogeneity of composition and avoid the sedimentation process. They are driven by auxiliary equipment, such as a shaft, speed reducer or electric motor, to sluice the product over the static mixer elements, to provide mixing action. Static mixers function by forcing sediment to flow in one direction and overcome the resistance during a liquid circulation flow in open reservoirs, ditches and canals. They are also used to intensify physical and chemical processing in liquids, particularly the processes of gas and solid dissolution. Gas dissolution is usually used in sediment / waste water / anaerobic process. The intensified mixing operation is applied in order to lengthen the distance covered by gas bubbles and to prevent smaller bubbles from joining into bigger ones. Direct drive, fast rotating mixers may also be used to prevent surface scum from coming into existence and to destroy any surface scum that has already appeared.

Static Mixer SK Series Model

Model	Dg(mm)	dh(mm)	Q(m3/h)
SK-5/10	10	5	0.15-0.3
SK-7.5/15	15	7.5	0.3-0.6
SK-10/20	20	10	0.6-1.2
SK-12.5/25	25	12.5	0.9-1.8
SK-16/32	32	16	1.4-3.2
SK-20/40	40	20	2.2-4.5
SK-25/50	50	25	3.5-7.0
SK-32.5/65	65	32.5	5.9-12
SK-40/80	80	40	9-18
SK-50/100	100	100	14-28
SK-62.5/125	125	125	22-44
SK-75/150	150	150	31-64
SK-100/200	200	200	56-110
SK-125/250	250	250	88-177
SK-150/300	300	300	127-255
SK-175/350	350	350	173-346
SK-200/400	400	400	226-452
SK-250/500	500	500	353-706

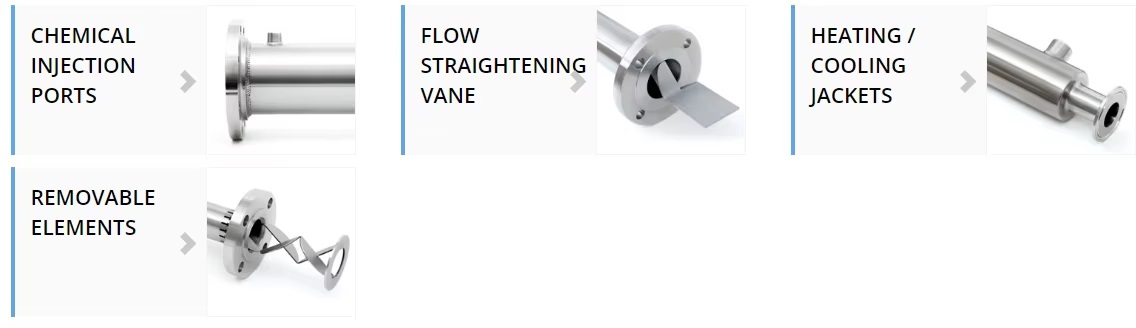

Static Mixer Options

Static Mixer Benefits

Maintenance-Free
DAGYEE Static Mixers are built to last using industrial grade materials specifically tailored to your application.

Low Energy Requirements
Because static mixers are motionless by design, all the energy required to provide a perfect blend is provided by the energy of the flow stream.

Custom-Designed for Your Application
All DAGYEE Static mixers can be custom-tailored to fit your requirements.

Low-Cost
DAGYEE Static Mixers are a low-cost alternative to traditional tank mixers both at purchase and during the mixer's lifetime. There are no running costs associated with operating a DAGYEE Static Mixer on top of running your existing pipeline.

No Moving Parts
Unlike traditional mixers, static mixers remain motionless during the mixing process.

Quick Delivery
DAGYEE maintains complete control over its production process. All static mixers are built in-house at DAGYEE's manufacturing facility outside Chicago and can be manufactured to meet your project schedule.

Static Mixer Applications

Plastic or PVC Mixers are used in the Water Industry and in General industry but can only tolerate Low Temperatures, they operate the same as the metal Static Mixers, PTFE Mixers can be used in the Chemical or Pharmaceutical applications for corrosive Chemical Additions at up to 200°C approx.

How popular are stainless steel static mixers?

Stainless Steel Static Mixers are used in the Chemical and Pharmaceutical Industries where the material is compatible with the process, they are also used in the Water Industry but again only where the process media is compatible with Stainless Steel, in the main, Coated Static Mixers are used in the Water Industry because they are compatible with almost all chemicals and acids, the coating used is made from Plant based materials and is approved by the UK DWI for use in Drinking Water (Potable Water) applications, the Coatings are Rilsan and Scotchcoat and are applied by Electrostatic means in a powder bed, the Mixer Housing with Element is dipped into the Powder Bed and the Coating is Electrostatically applied.
