Rotary Drum Screen Internal - Stainless Steel Drum Filter for Wastewater Treatment | Self-Cleaning Design | Industrial Grade

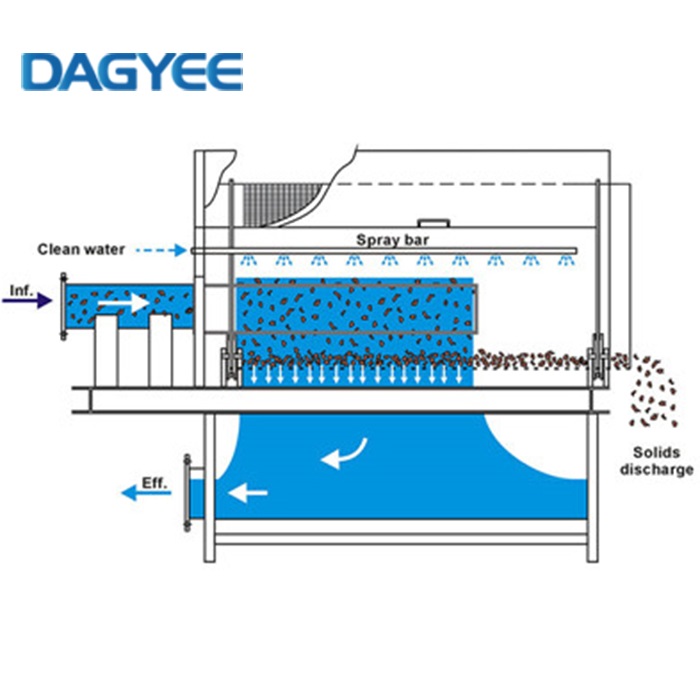

Rotary Drum Screen Internal Function

The filter is fed through a nozzle placed on the machine inlet. It is cleaned by means of a washing system made up of a tube equipped with pressurised water spray nozzles.
During operation, water is conveyed towards the outlet placed in front of the machine, while screenings are conveyed by the spiral to the outlet at the back of the screen.
A special 5-degree incline angle towards the outlet contributes to dewatering the screenings while they are conveyed.
The screen is equipped with by-pass nozzles which protect the filter from overflow.

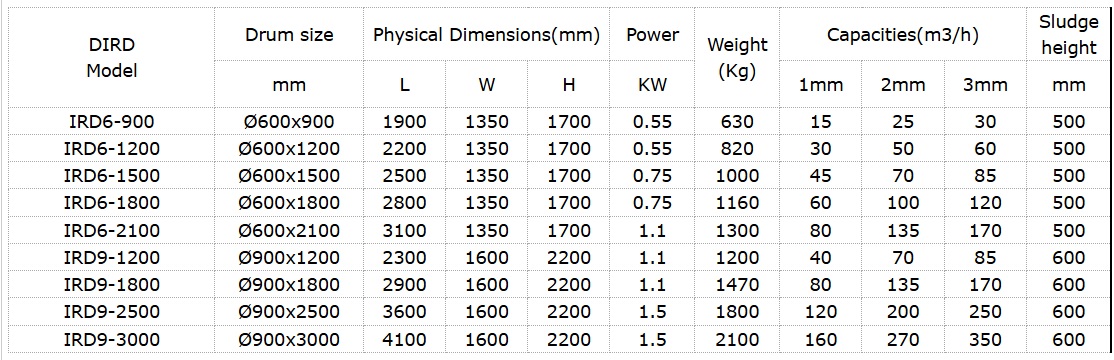

Rotary Drum Screen Internal Model

Rotary Drum Screen Internal Advantage

• Innovative
• Sturdy
• Reliable
• No Sprockets or chain system
• Smoothly conveys debris
• Jam-less design
• Fast return on investment
• Low, economical maintenance
• Low energy consumption

Rotary Drum Screen Internal Application

• Municipal wastewater treatment plants
• Industrial wastewater treatment plants
• Sewage Treatment
• Tanneries Industry
• Laundries Industry
• Slaughterhouses
• Paper mill Industry
• Textile industry
• Fish industry
• Food & Beverage industry
• Chemical industry
