Electroplating Wastewater Lamella Clarifier for Metal Removal

Electroplating Wastewater Lamella Clarifier for Metal Removal

Product Item : DLC-010
Category： Lamella Separator
Certification:CE Certificate
Capacity:1-200 m3/h
Function:High TSS removal
Wastewater Treatment Plants
INQUIRY EMAIL

Lamella clarifier description

The implementation of lamella clarifiers in wastewater treatment is widely recognized due to their numerous advantages, such as their ability to handle high flow rates and their versatility across various industries. They are an essential element in the treatment process, appearing in sectors like municipal sewage treatment, industrial effluent processing, and water recycling. Proper installation and maintenance of lamella clarifiers are crucial for their optimal performance and compliance with environmental regulations. Recent technological advancements have further improved the efficacy of these systems, making them more sustainable and cost-effective solutions for wastewater management.

Lamella clarifier principle

The process is based on a simple and effective principle. As water flows upward between the inclined plates, particles settle on the plate surfaces. These solids then slide downward by gravity and collect at the tank bottom. Meanwhile, clear water rises and exits from the top.

Because the flow is distributed through multiple thin layers, lamella clarifiers accelerate the sedimentation process. As a result, they are significantly more efficient than conventional systems.

Lamella clarifier available options

• Flash mixing/flocculation tank with agitator
• Full glass steel or stainless steel structure
• Concrete tank design
• Special coatings and plates
• Integrated mechanical sludge thickener
• Overhaul platforms and ladders
• In-house laboratory analysis to optimize equipment
• Drinking water design
• Gasket and removable cover
• Automatic desilting
• Instrumentation and control
• Chemical feed equipment
• Sludge treatment and dewatering
• Pilot size units for field testing

Lamella clarifier model

DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

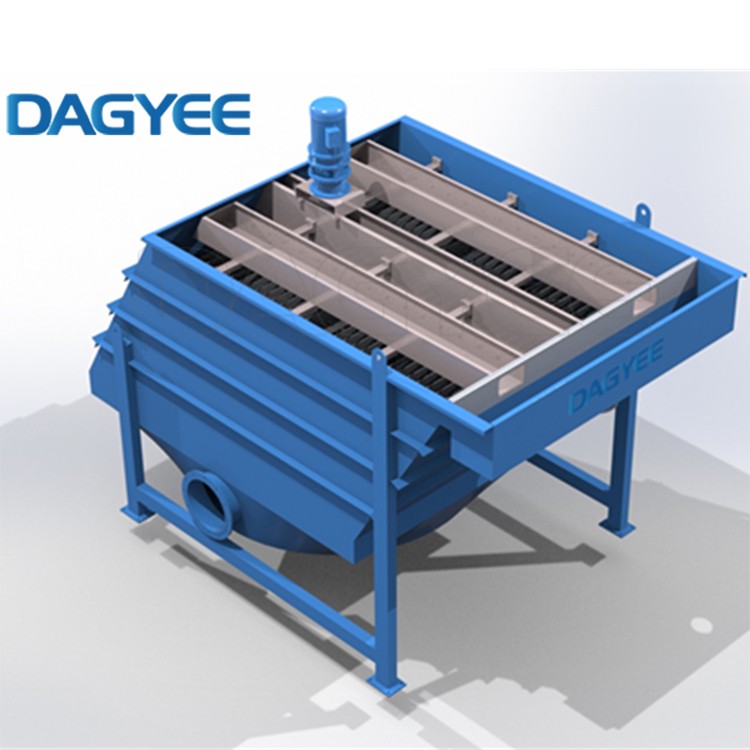

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

DLC Model	Capacities (m³/h)	Piping Connections (mm)				Physical Dimensions (m)
		Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC 5	5	80	80	50	50	2.55	1.6	2.9
DLC 10	10	100	100	50	50	3.35	1.82	3
DLC 15	15	100	100	50	50	3.35	2.02	3
DLC 20	20	100	100	50	50	3.35	2.02	3
DLC 30	30	150	150	50	50	4.2	2.22	3
DLC 40	40	150	150	50	50	4	2.8	3
DLC 50	50	200	200	50	50	4.65	2.82	3
DLC 60	60	200	200	50	50	4.7	3	3
DLC 70	70	250	200	50	50	6.4	2.6	3
DLC 80	80	250	200	50	50	6.8	2.82	3
DLC 100	100	250	250	50	50	7.05	3.02	3

Lamella clarifier advantage

To understand the popularity of lamella clarifiers, let’s take a closer look at their benefits:
Space Saving: Up to 80% smaller than traditional clarifiers
Low Maintenance: Fewer moving parts, easy to clean
High Efficiency: Faster and better solids removal due to inclined design
Retrofit-Friendly: Perfect for upgrading older treatment systems
Cost Reduction: Lower operational costs via reduced energy and chemical use
Clearly, these advantages position lamella clarifiers as one of the most effective tools in modern water treatment.

Lamella clarifier feature

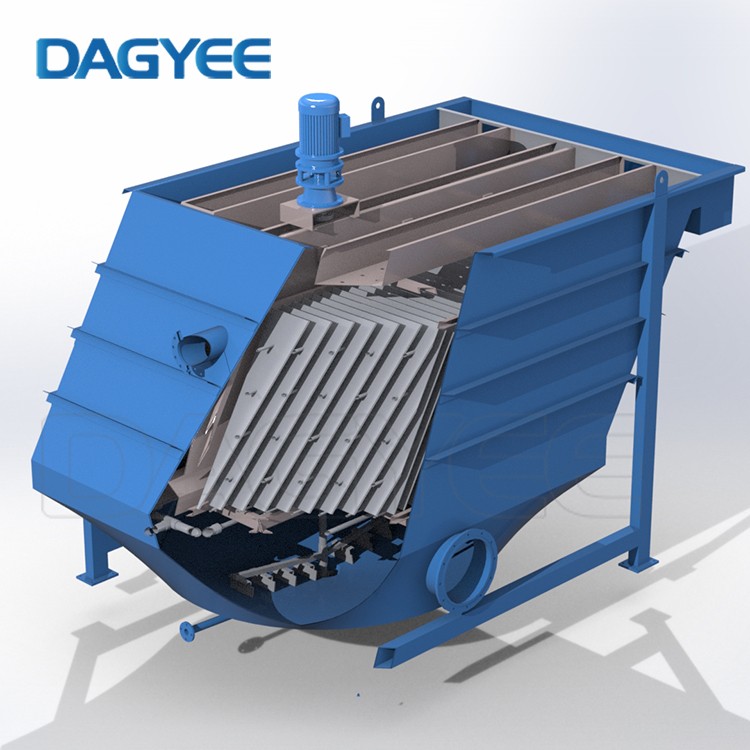

DAGYEE lamella clarifiers are equipped with robust and durable lamella packages.
A wide variety of requirements are met by customizing the lamella packages with different heights, channel spacings, and inclination angles.

The lamella packages are the core element of a lamella clarifier, but the overall performance of the settling system is also determined by the associated components. These include the effluent launders, support structures, sludge scrapers, and the hydraulic design of the tank.

DAGYEE supports planning and design with engineering services on request and supplies all components of a lamella clarifier system.

Lamella clarifier application

These systems are applied across diverse industries due to their efficiency and flexibility. In addition to traditional wastewater applications, lamella clarifiers offer value in more specialized contexts.
