Product description
Industrial Filtration Housings
Also known as filter vessels, housings encase filter bags and cartridges. DAGYEE heavy-duty housings are available in various sizes, materials of construction and custom features for high-level filtration. An ideal choice for stand-alone, manifold or duplex filter systems.
Product function
Unfiltered Fluid Entry: The unfiltered fluid (liquid or gas) enters the inlet port of the housing.
Filtration: The fluid is forced from the outside of the filter cartridge to its core. During this passage, the cartridge's membrane or media traps suspended solids, particles, sediments, bacteria, or other contaminants.
Purified Fluid Exit: The now-cleaned fluid exits through the outlet port and continues into the system.
Contaminant Retention: All captured contaminants remain on the exterior or within the matrix of the filter cartridge, which can be replaced easily when it becomes saturated.
Product technical
Seal type: O-rings and flat gasket
Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber, usually use silicon
Rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI
Filtration accuracy: 1μm - 100 μm
Body material: SS304/SS 316
Single filter Cartridges housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Diameter mm |
|---|---|---|---|---|---|---|
| DYG-1-10" | 0.5 M³/H | 6/120 | Ø65*250 | 1/2" | 380 | Ø89 |
| DYG-1-20" | 1 M³/H | 6/120 | Ø65*500 | 3/4" | 630 | Ø89 |
| DYG-1-30" | 1.5 M³/H | 6/120 | Ø65*750 | 1" | 880 | Ø89 |
| DYG-1-40" | 2 M³/H | 6/120 | Ø65*1000 | 1" | 1130 | Ø89 |
Single microporous filter housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet-Quick Connector | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-C1-10" | 0.5 M³/H | 6/120 | Ø68*250 | 1 1/4" | 608 | Ø102 |
| DYG-C1-20" | 1 M³/H | 6/120 | Ø68*500 | 1 1/4" | 850 | Ø102 |
| DYG-C1-30" | 1.5 M³/H | 6/120 | Ø68*750 | 1 1/4" | 1100 | Ø102 |
| DYG-C1-40" | 2 M³/H | 6/120 | Ø68*1000 | 1 1/4" | 1350 | Ø102 |

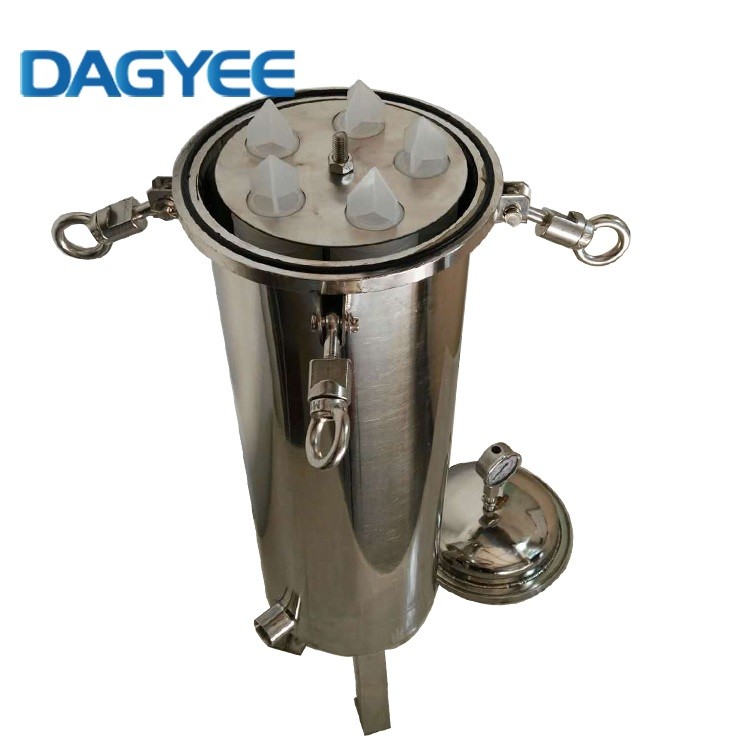

5 Cartridges filter Housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-5-10" | 2.5 M³/H | 6/150 | Ø65*250 | 3/4" | 550 | Ø219 |
| DYG-5-20" | 5 M³/H | 6/150 | Ø65*500 | 1" | 850 | Ø219 |
| DYG-5-30" | 7.5 M³/H | 6/150 | Ø65*750 | 1 1/2" | 1100 | Ø219 |
| DYG-5-40" | 10 M³/H | 6/150 | Ø65*1000 | 2" | 1390 | Ø219 |
5 Cartridges filter Housings with flange
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-5F-10' | 2.5 M³/H | 0-1.0MPa | Ø65*250 | 3/4" | 550 | Ø219 |
| DYG-5F-20' | 5 M³/H | 0-1.0MPa | Ø65*500 | 1" | 850 | Ø219 |
| DYG-5F-30' | 7.5 M³/H | 0-1.0MPa | Ø65*750 | 1 1/2" | 1100 | Ø219 |
| DYG-5F-40' | 10 M³/H | 0-1.0MPa | Ø65*1000 | 2" | 1390 | Ø219 |
Single bag filter housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-1-1S | 18 M³/H | 12/150 | Ø180*410 | 1 1/2" flange | 1040 | Ø219 |
| DYG-1-2S | 36 M³/H | 12/150 | Ø180*810 | 2" flange | 1300 | Ø219 |
| DYG-1-4S | 10 M³/H | 12/150 | Ø105*380 | 1 1/2" BSP female | 850 | Ø133 |
| DYG-1K-1S | 18 M³/H | 12/150 | Ø180*410 | 1 1/2"flange | 1010 | Ø219 |
Multi Bag Filter Housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-2D-2S | 70 M³/H | 12/150 | Ø180*810 | 2" | 1600 | Ø420 |
| DYG-3D-2S | 100 M³/H | 12/150 | Ø180*810 | 3" | 1800 | Ø506 |
| DYG-4D-2S | 130 M³/H | 12/150 | Ø180*810 | 4" | 1800 | Ø506 |
| DYG-6D-2S | 200 M³/H | 12/150 | Ø180*810 | 4" | 2100 | Ø650 |
| DYG-8D-2S | 250 M³/H | 12/150 | Ø180*810 | 5" | 2100 | Ø710 |
| DYG-12D-2S | 400 M³/H | 12/150 | Ø180*810 | 6" | 2100 | Ø910 |
High-Efficiency Processing, Ensures Production: Capable of handling high-flow conditions that single-cartridge housings cannot meet, directly supporting main production lines and boosting overall capacity.
Extended Service Cycles, Reduces Costs: The high dirt-holding capacity significantly extends intervals between cartridge changes, reducing consumable costs and maintenance labor expenses.
System Redundancy, Ensures Operational Reliability: Even if one or several cartridges become clogged or damaged, the remaining cartridges continue to operate, providing a buffer for scheduled maintenance and effectively preventing unplanned downtime.
Contaminant Removal: To effectively remove unwanted particles, sediments, rust, microorganisms, and other impurities from fluids.
System Protection: To protect sensitive downstream equipment (e.g., pumps, valves, nozzles, instruments) from damage and wear caused by particulates.
Product Quality Assurance: To ensure the final product's purity, clarity, and safety in processes like food and beverage production, pharmaceutical manufacturing, and chemical processing.
Process Efficiency: To maintain consistent flow rates and pressure, preventing clogging and downtime in critical systems.
Product application
Chemicals
Electronics
Food and Beverage
Industrial
Oil and Gas
Power and Utilities
Water
