All-in-One Combined Wastewater Pre-Treatment Unit for Industrial Plants

Combined wastewater pretreatment unit description

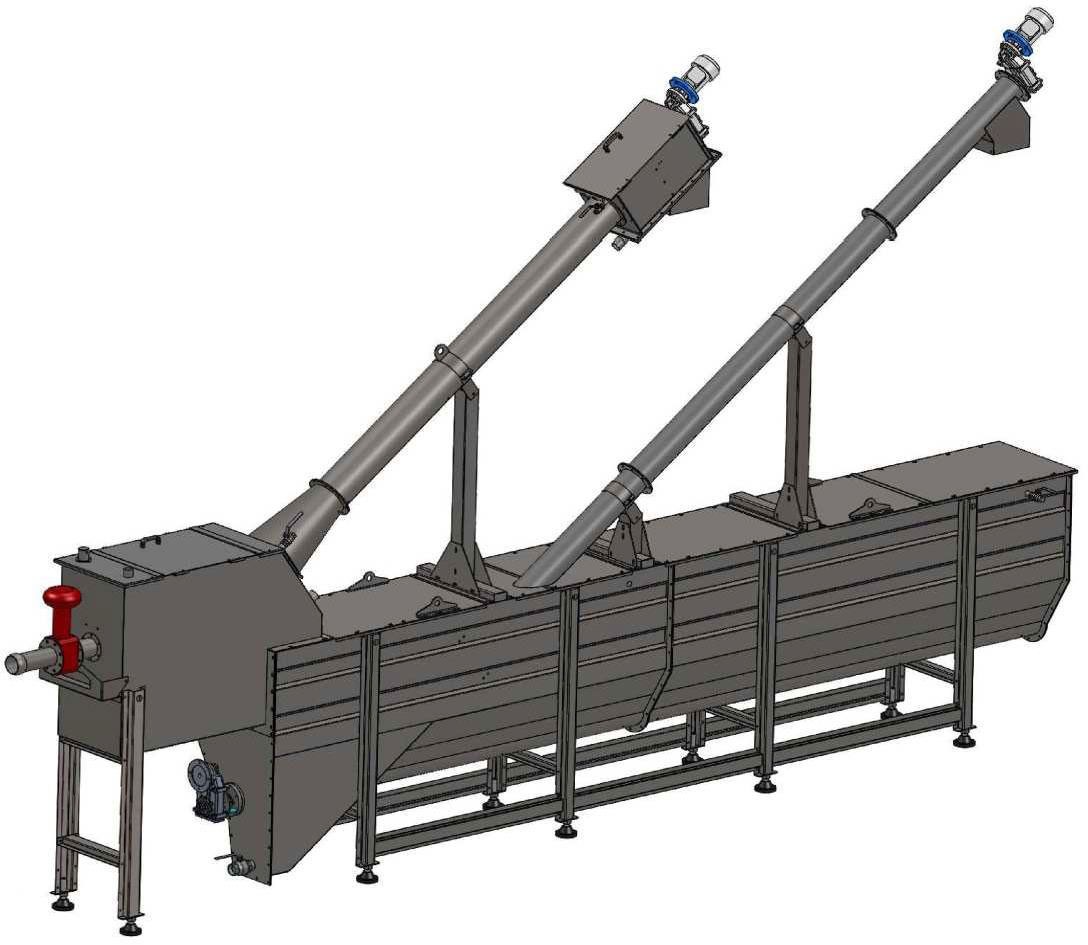

Combined pretreatment system is an answer to the high civil works costs and large footprint required to execute complete pretreatment systems in concrete, screening channel, sedimentation tanks and hoppers FOG removal.  The DAGYEE system is a state-of-the-art combined pretreatment system designed to optimally perform all the effluent pretreatment function, screening, grit removal, FOG removal, in a single  stainless steel machine.

The DAGYEE range consists of for screening and grit removal and the  for screening, grit removal and FOG removal.
Generally supplied with the CFC Screw Screen, but in special execution it is also possible to provide it with the auger rotating drum screen, the step screen, the sub-Vertical bar Screen, or the perforated plate and brush screen.

Combined wastewater pretreatment unit component

Dependable, complete and compact unit Performing the following process steps:

• fine screening
• Screenings dewatering
• Grit separation
• Grit dewatering
• Grease separation and removal (optional)

Combined wastewater pretreatment unit working principle

Combined unit for wastewater pretreatment Introduce sewage treatment plants. they perform Fine screening, grit removal and optional grease removal.Wastewater passes through spiral screen, solids Materials larger than the mesh size,The size is captured and removed from the system. they are compaction at the end of the screen conveyor before unloading.

The wastewater flows into the sedimentation tank. finer solid matter still present in wastewater Settled in a tank and conveyed to a hopper by a horizontal screw conveyor is placed at the bottom of the tank. OneInstallation of inclined screw conveyor for sand removal conveying the sand accumulated in the hopper,Drain into a container. filtered water leaves The system passes through an outlet tube placed on the upper level.Grease removal unit can be integrated into DAGYEE combination units are available upon request.

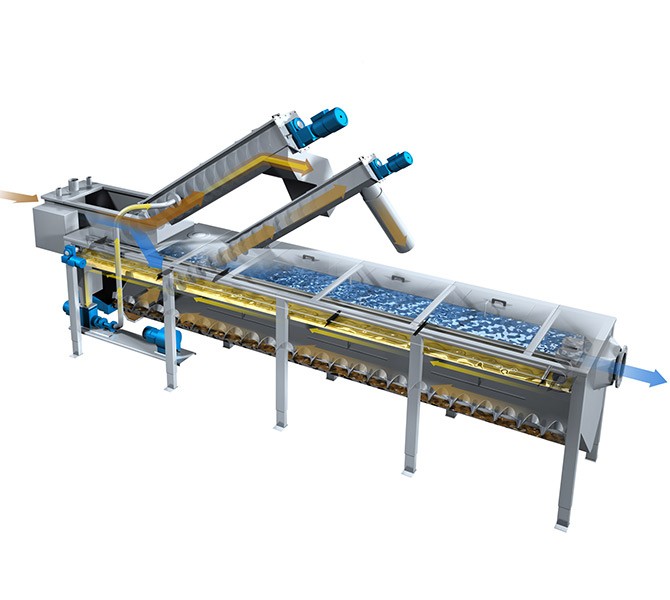

The wastewater firstly enters the tank where a screw screen is placed.

Big size solid materials are filtrated by the screw screen and a screw conveyor moves the solid materials captured up to the discharge point. At the end of the conveyor, they are pressed by the compaction unit before discharge.

The water which has still solid materials in smaller sizes flows through the sedimentation tank. The particles are settled by time and a horizontal screwconveyor transports them to the collection hopper.

Finally, they are conveyed by the grit removal screw conveyor to the discharge point.

Combined wastewater pretreatment unit Parameter

Combined wastewater pretreatment unit advantage

• Combination of high treatment efficiency with reduced installation space;
• Reduction of odors compared to a conventional treatment plant;
• Low investment and maintenance costs;
• Existence of an integrated manual bypass system, which allows for the resolution of breakdowns and/or maintenance of the equipment.

Combined wastewater pretreatment unit feature

• The modular design allows for component additions as conditions change.
• Compact plants are installed primarily above ground although in ground options are available.
• The entire unit can be assembled on site.
• The SPECO compact plant does not limit the end user to just one screen design.
• Screw screens, rotating drum screens, multirake screens and more are easily incorporated.
• Compact plants with flow rates from 200 GPM to 4.8 MGD are available.

Combined wastewater pretreatment unit application

Industrial wastewater treatment plants
