High-Pressure Stainless Steel Static Mixer for Reverse Osmosis Pretreatment

High-Pressure Stainless Steel Static Mixer for Reverse Osmosis Pretreatment

Product Item : SK
Category： Static Mixer
Material:304/316L/PP/PVC/PTFE
Application:Filtration
Size:1-60 inch
Usage:Mixing process
INQUIRY EMAIL

Static mixer description

DAGYEE produces a complete line of custom stainless steel static mixers made from industrial grade schedules 10 through 40 pipe, in sizes ranging from 3/8"- 60" diameter.
All stainless steel metal static mixers are custom designed for each application.
DAGYEE stocks all of the raw materials for the mixer line and can produce a flanged industrial mixer in as little as 1-2 days, if needed.
Standard materials of construction include carbon steel, 304L and 316L stainless steel. Other higher alloys are available upon request for inline static mixers.

Static mixer principle

The mixing elements or fins induce turbulent flow in the mixer housing which mixes chemicals added either ahead of the mixer or through an injection port on the mixer housing.
Static mixers are aimed at 0.5 or 95% mixing at 3D (pipe diameter) of the mixer outlet.
There is no typical static mixer design, a variety of designs are available to suit specific applications.

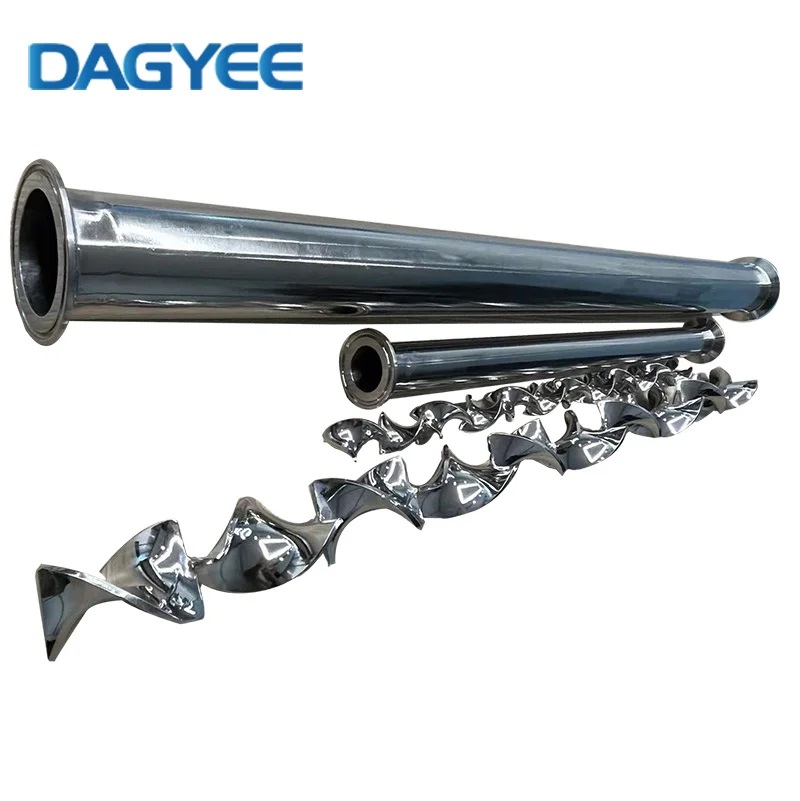

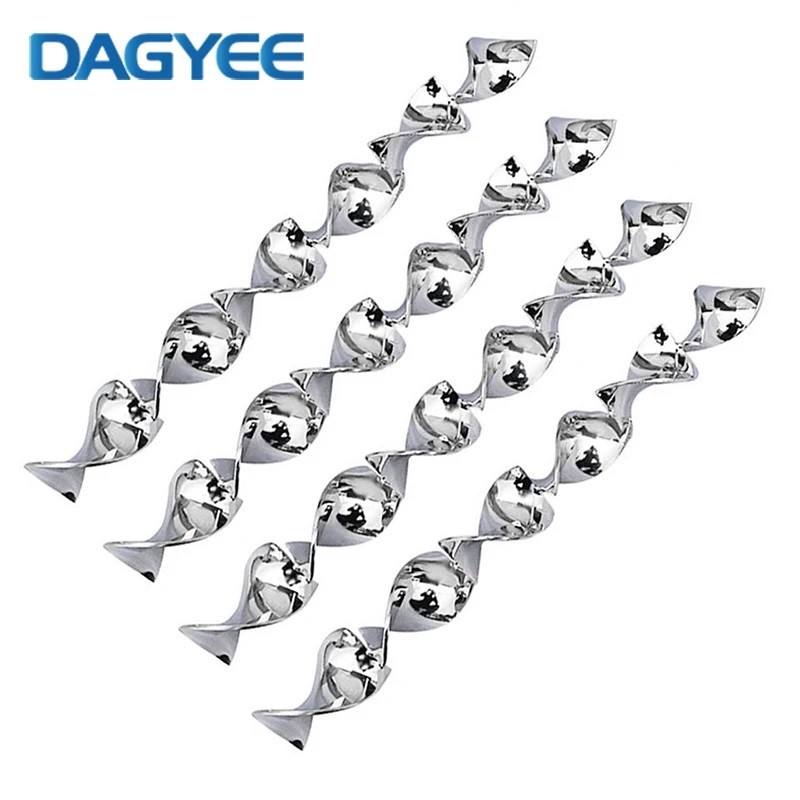

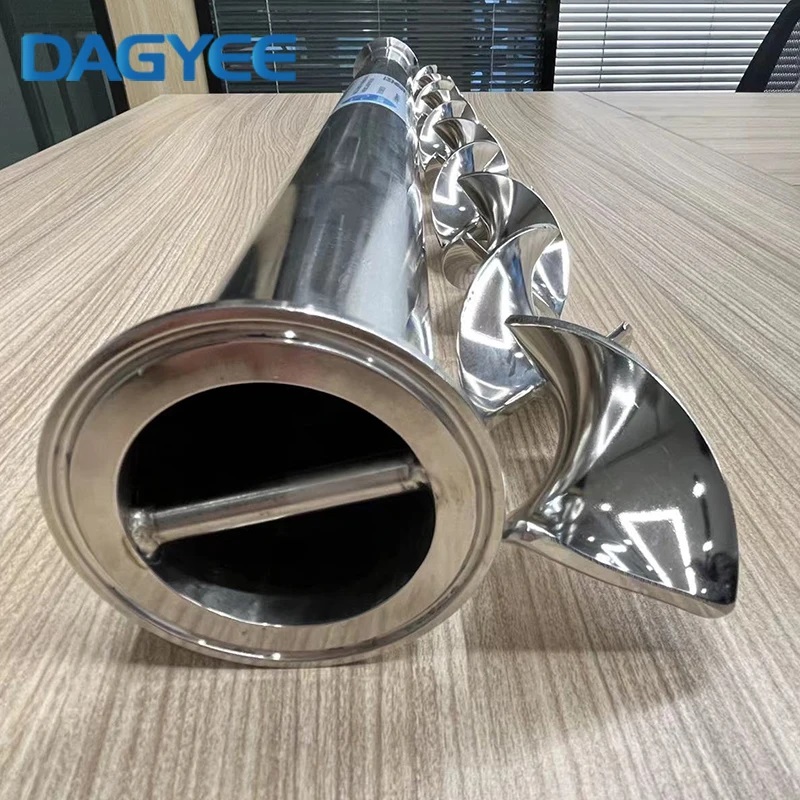

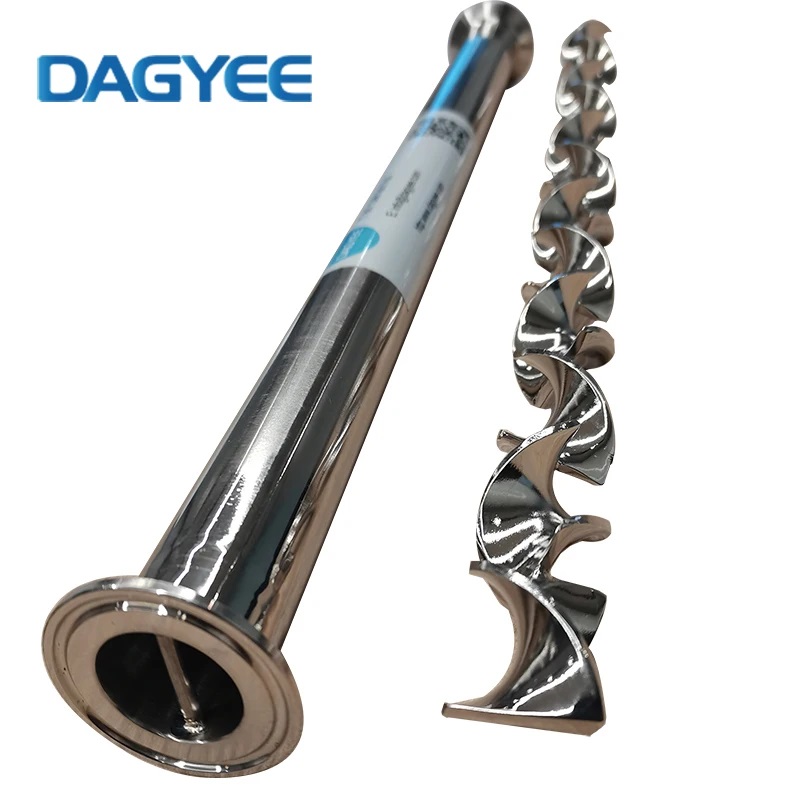

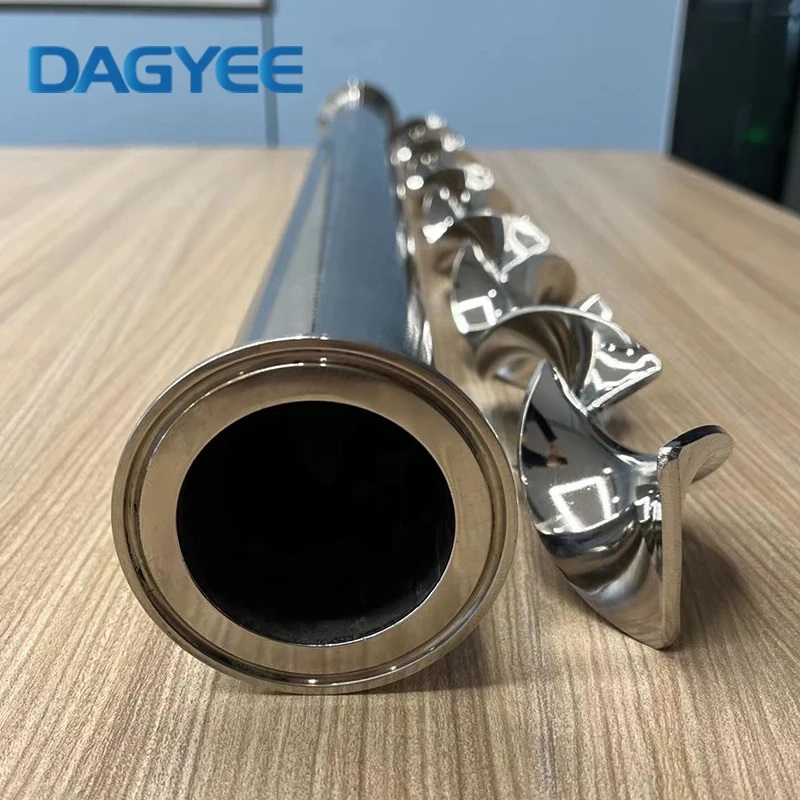

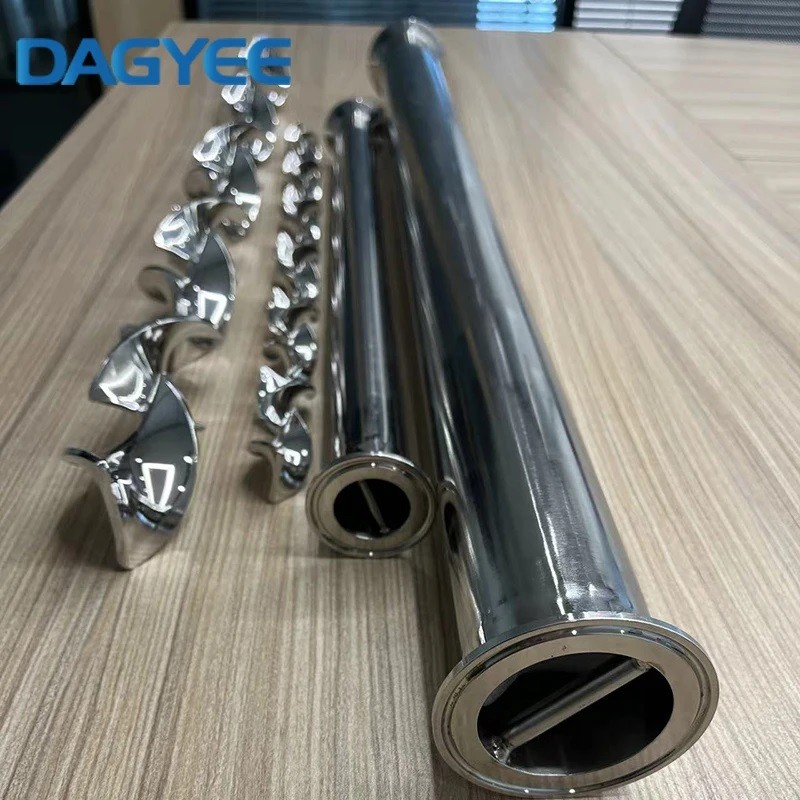

Helical coil mixers for the chemical pharmaceutical and food industries.
Fin mixers for the water industry - Fin mixers The mixing elements (foils) of the mixer are mounted on the walls of the mixer housing and are so-called open designs, which means that they are less likely to clog, they The pressure drop is lower than that of a helical coil mixer.

Static mixer technical

Model	Dg(mm)	dh(mm)	Q(m³/h)
SK-5/10	10	5	0.15-0.3
SK-7.5/15	15	7.5	0.3-0.6
SK-10/20	20	10	0.6-1.2
SK-12.5/25	25	12.5	0.9-1.8
SK-16/32	32	16	1.4-3.2
SK-20/40	40	20	2.2-4.5
SK-25/50	50	25	3.5-7.0
SK-32.5/65	65	32.5	5.9-12
SK-40/80	80	40	9-18
SK-50/100	100	100	14-28
SK-62.5/125	125	125	22-44
SK-75/150	150	150	31-64
SK-100/200	200	200	56-110
SK-125/250	250	250	88-177
SK-150/300	300	300	127-255
SK-175/350	350	350	173-346
SK-200/400	400	400	226-452
SK-250/500	500	500	353-706

Static mixer advantage

Maintenance-Free
Static Mixers are built to last using industrial grade materials specifically tailored to your application.

Low-Cost
Static Mixers are a low-cost alternative to traditional tank mixers both at purchase and during the mixer's lifetime. There are no running costs associated with operating Static Mixer on top of running your existing pipeline.

Low Energy Requirements
Because static mixers are motionless by design, all the energy required to provide a perfect blend is provided by the energy of the flow stream.

Static mixer feature

Our customization capabilities at DAGYEE give our customers a multitude of options for their existing systems. We can design and build custom static mixers for our clients that meet each unique system's demands and requirements to ensure a seamless fit and a top-tier end product is achieved. Customers may customize their industrial static mixer length up to 72", pick of construction material, choice of open or closed channel, element customizations, addition of injection ports, and choice of end connections, including flanged, threaded, plain, and DIN ends.

Static mixer application

Chemical blending

Water treatment
Crude oil blending
Custody transfer
PH control
Liquid/vapor contacting
Produced Water Treatment
Desalination Biofuel blending and catalyst addition
