Product description

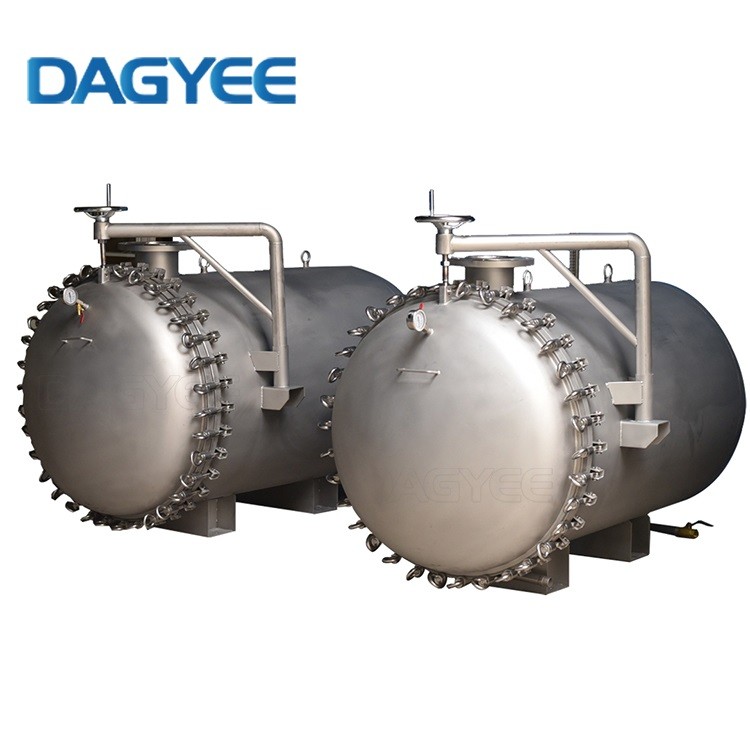

Cartridge filter housings are critical components ensuring efficient and effective filtration. DAGYEE manufactures a broad line of both ASME code vertical and horizontal cartridge housings with standard flow rates of up to 8,000 GPM. Housings are built to meet project specifications. DAGYEE is the custom manufacturer of cartridge filter housings for industrial filtration needs.
Product function
Handles High Flow Rates: Meets the filtration demands of high-velocity applications.
Holds More Contaminants: Extends filtration cycles and reduces change-out frequency.
Built-in System Redundancy: A single cartridge failure does not halt the entire operation.
Integrated Design: Consolidates multiple filtration points into one unit, simplifying the system.
Product technical
Seal type: O-rings and flat gasket
Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber, usually use silicon
Rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI
Filtration accuracy: 1μm - 100 μm
Body material: SS304/SS 316
Single filter Cartridges housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Diameter mm |
|---|---|---|---|---|---|---|
| DYG-1-10" | 0.5 M³/H | 6/120 | Ø65*250 | 1/2" | 380 | Ø89 |
| DYG-1-20" | 1 M³/H | 6/120 | Ø65*500 | 3/4" | 630 | Ø89 |
| DYG-1-30" | 1.5 M³/H | 6/120 | Ø65*750 | 1" | 880 | Ø89 |
| DYG-1-40" | 2 M³/H | 6/120 | Ø65*1000 | 1" | 1130 | Ø89 |
Single microporous filter housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet-Quick Connector | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-C1-10" | 0.5 M³/H | 6/120 | Ø68*250 | 1 1/4" | 608 | Ø102 |
| DYG-C1-20" | 1 M³/H | 6/120 | Ø68*500 | 1 1/4" | 850 | Ø102 |
| DYG-C1-30" | 1.5 M³/H | 6/120 | Ø68*750 | 1 1/4" | 1100 | Ø102 |
| DYG-C1-40" | 2 M³/H | 6/120 | Ø68*1000 | 1 1/4" | 1350 | Ø102 |
5 Cartridges filter Housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-5-10" | 2.5 M³/H | 6/150 | Ø65*250 | 3/4" | 550 | Ø219 |
| DYG-5-20" | 5 M³/H | 6/150 | Ø65*500 | 1" | 850 | Ø219 |
| DYG-5-30" | 7.5 M³/H | 6/150 | Ø65*750 | 1 1/2" | 1100 | Ø219 |
| DYG-5-40" | 10 M³/H | 6/150 | Ø65*1000 | 2" | 1390 | Ø219 |
5 Cartridges filter Housings with flange
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-5F-10' | 2.5 M³/H | 0-1.0MPa | Ø65*250 | 3/4" | 550 | Ø219 |
| DYG-5F-20' | 5 M³/H | 0-1.0MPa | Ø65*500 | 1" | 850 | Ø219 |
| DYG-5F-30' | 7.5 M³/H | 0-1.0MPa | Ø65*750 | 1 1/2" | 1100 | Ø219 |
| DYG-5F-40' | 10 M³/H | 0-1.0MPa | Ø65*1000 | 2" | 1390 | Ø219 |
Single bag filter housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-1-1S | 18 M³/H | 12/150 | Ø180*410 | 1 1/2" flange | 1040 | Ø219 |
| DYG-1-2S | 36 M³/H | 12/150 | Ø180*810 | 2" flange | 1300 | Ø219 |
| DYG-1-4S | 10 M³/H | 12/150 | Ø105*380 | 1 1/2" BSP female | 850 | Ø133 |
| DYG-1K-1S | 18 M³/H | 12/150 | Ø180*410 | 1 1/2"flange | 1010 | Ø219 |
Multi Bag Filter Housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-2D-2S | 70 M³/H | 12/150 | Ø180*810 | 2" | 1600 | Ø420 |
| DYG-3D-2S | 100 M³/H | 12/150 | Ø180*810 | 3" | 1800 | Ø506 |
| DYG-4D-2S | 130 M³/H | 12/150 | Ø180*810 | 4" | 1800 | Ø506 |
| DYG-6D-2S | 200 M³/H | 12/150 | Ø180*810 | 4" | 2100 | Ø650 |
| DYG-8D-2S | 250 M³/H | 12/150 | Ø180*810 | 5" | 2100 | Ø710 |
| DYG-12D-2S | 400 M³/H | 12/150 | Ø180*810 | 6" | 2100 | Ø910 |
High-Efficiency Processing, Ensures Production: Capable of handling high-flow conditions that single-cartridge housings cannot meet, directly supporting main production lines and boosting overall capacity.
Extended Service Cycles, Reduces Costs: The high dirt-holding capacity significantly extends intervals between cartridge changes, reducing consumable costs and maintenance labor expenses.
System Redundancy, Ensures Operational Reliability: Even if one or several cartridges become clogged or damaged, the remaining cartridges continue to operate, providing a buffer for scheduled maintenance and effectively preventing unplanned downtime.
Top-Service Design: Features a large, removable top head or bolted cover for easy access to all cartridges simultaneously, simplifying maintenance.
Integrated Accessories: Often includes accessories like pressure gauges (inlet/outlet), vent valves, and drain valves for operational control and safety.
Scalability: Available in various sizes and cartridge counts (e.g., 3, 7, 12, 21-cartridge models) to match specific flow rate requirements.
Product application
Food & Beverage: Water purification, ingredient filtering, wine and beer stabilization, edible oil processing.
Pharmaceutical & Biotech: Purification of water for injection (WFI), process fluids, solvent filtration, sterile venting.
Chemicals & Petrochemicals: Chemical purification, catalyst recovery, pre-filtration for membranes.
Electronics: Ultra-pure water production for semiconductor and PCB manufacturing.
Metalworking & Plating: Coolant filtration, pre-treatment of plating baths.
General Industrial: Water treatment, hydraulic and lubricating oil protection, compressed air and gas filtration.
