High-Flow Stainless Steel Bag Filter Housing with Vent Valve for Steam Condensate Filtration Systems

Product description

DAGYEE offers a variety of different filter cartridge housings for industrial and food applications. For industrial filtration tasks, our filter cartridge housings are an economical solution for price-sensitive applications. For demanding industrial applications, the cartridge filter housings are the best choice. For food and beverage filtration, filter cartridge housings made of stainless steel are an excellent choice. DAGYEE also manufactures housings for air, steam, and gas filtration applications. Additionally, we produce measuring and testing devices for determining the filterability of liquids and for integrity tests on membrane filter cartridges.

Product function

Robust Construction: Typically made from corrosion-resistant materials like Stainless Steel (SUS 304/316L), carbon steel, or plastic (PP, PVC) to withstand harsh operating conditions and pressures.
Versatile Design: Available in single, dual, or multi-cartridge configurations to meet varying flow rate and redundancy requirements.
Easy Maintenance: Features a quick-release clamp or bolted design for easy opening, allowing for fast and simple cartridge replacement without tools.
Comprehensive Sealing: Equipped with high-quality O-rings and gaskets to prevent leaks and ensure system integrity.
Pressure & Vacuum Ratings: Engineered to operate safely at specific pressure and temperature ranges, often equipped with pressure gauges and relief valves.
Broad Compatibility: Designed to accommodate a wide array of standard filter cartridges (e.g., string-wound, meltblown, pleated, activated carbon).

Product technical

Seal type: O-rings and flat gasket

Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber, usually use silicon

Rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI

Filtration accuracy: 1μm - 100 μm

Body material: SS304/SS 316

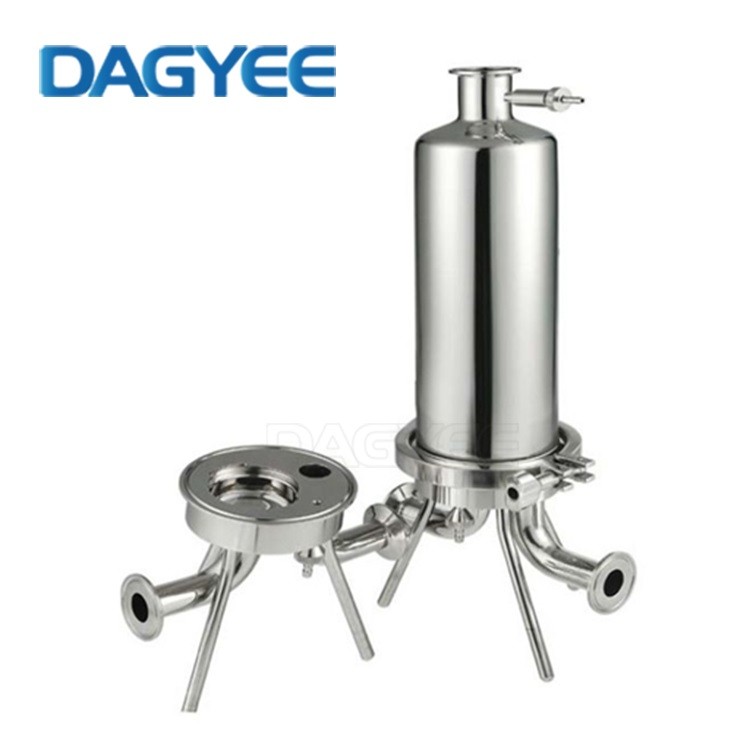

Single filter Cartridges housings

Single microporous filter housings

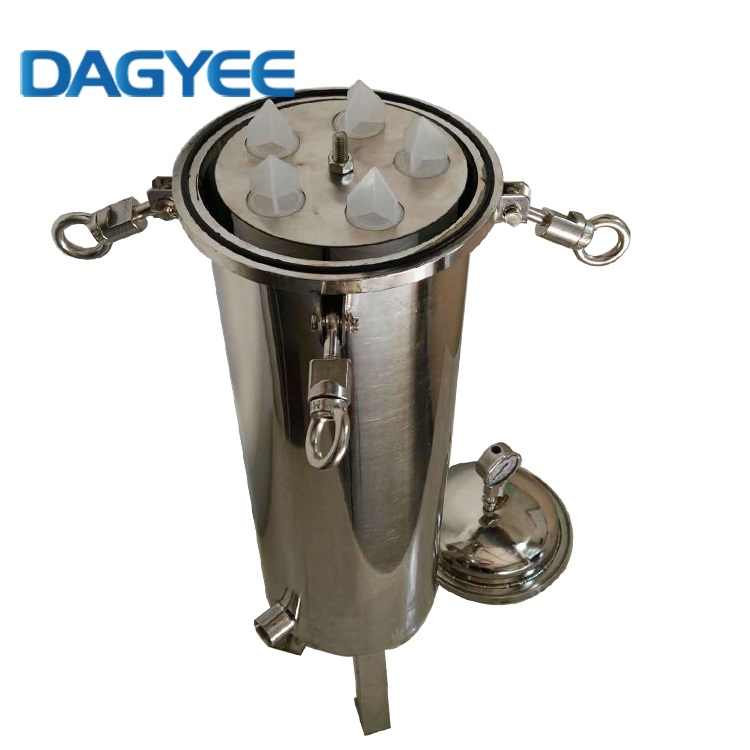

5 Cartridges filter Housings

5 Cartridges filter Housings with flange

Single bag filter housings

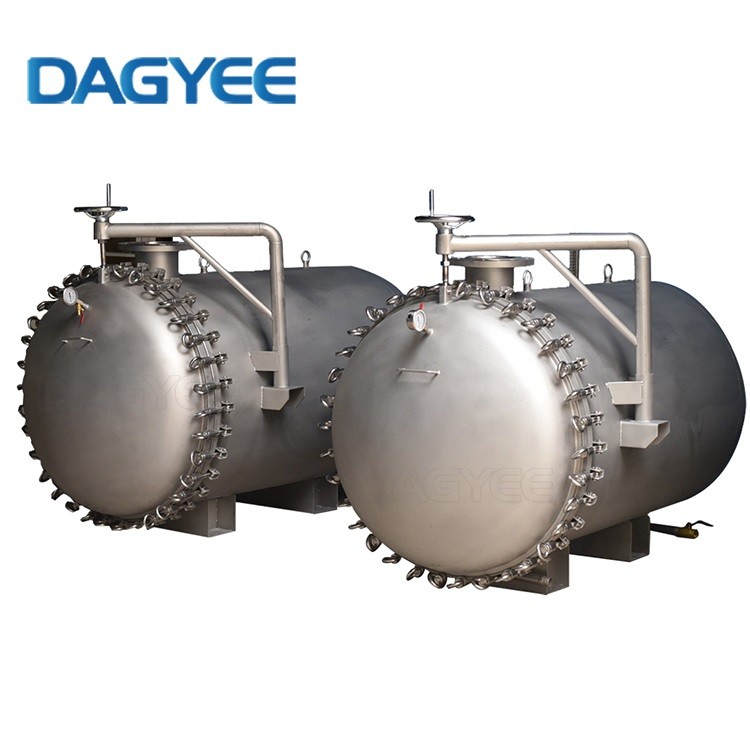

Multi Bag Filter Housings

Product advantage

High-Efficiency Processing, Ensures Production: Capable of handling high-flow conditions that single-cartridge housings cannot meet, directly supporting main production lines and boosting overall capacity.

Extended Service Cycles, Reduces Costs: The high dirt-holding capacity significantly extends intervals between cartridge changes, reducing consumable costs and maintenance labor expenses.

System Redundancy, Ensures Operational Reliability: Even if one or several cartridges become clogged or damaged, the remaining cartridges continue to operate, providing a buffer for scheduled maintenance and effectively preventing unplanned downtime.

Product feature

Top-Service Design: Features a large, removable top head or bolted cover for easy access to all cartridges simultaneously, simplifying maintenance.

Integrated Accessories: Often includes accessories like pressure gauges (inlet/outlet), vent valves, and drain valves for operational control and safety.

Scalability: Available in various sizes and cartridge counts (e.g., 3, 7, 12, 21-cartridge models) to match specific flow rate requirements.

Product application

Water Treatment: In water treatment plants, cartridge filter housings are used to remove suspended solids, bacteria, and other impurities from raw water, ensuring clean water for municipal and industrial use.
Pharmaceuticals: In pharmaceutical manufacturing, cartridge filter housings are used to ensure the purity of process fluids, protecting products from contamination and ensuring compliance with strict quality standards.
Food and Beverage: These housings are used to maintain the purity of ingredients and final products, ensuring compliance with hygiene and safety standards in the food and beverage industry.
Petrochemicals: In the petrochemical industry, cartridge filter housings protect equipment and processes by removing particulates from hydrocarbons, solvents, and other fluids.
Manufacturing: In various manufacturing processes, cartridge filter housings are used to purify process fluids, ensuring the quality of products and protecting equipment from damage.
Electronics: In the electronics industry, cartridge filter housings are used to remove particles and impurities from process fluids, ensuring the quality and reliability of electronic components.
