Standard 10-Inch Single Cartridge Filter Housing with Universal Thread for Basic Water Filtration

Standard 10-Inch Single Cartridge Filter Housing with Universal Thread for Basic Water Filtration

Category： water filter housing
Material: 304/316 Stainless Steel
Filter Elements: Single Bag, Dual Bag, 3-Cartridge, 7-Cartridge
Housing Design: Vertical
Application: Industrial Water Pretreatment
INQUIRY EMAIL

Product description

The filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance.

Product function

Filtration: The fluid enters the housing through the inlet and passes through the filter cartridges. As the fluid flows through the cartridges, contaminants are trapped within the filter media, allowing clean fluid to exit through the outlet.

Accumulation: Over time, contaminants accumulate within the filter cartridges, forming a layer of debris that can reduce filtration efficiency and increase pressure drop.

Replacement: When the differential pressure across the filter cartridges reaches a predetermined threshold, indicating that the cartridges are clogged, they need to be replaced.

This ensures continuous and efficient filtration.

Maintenance: The housing is designed for easy access, allowing for quick and straightforward replacement of filter cartridges. This minimizes downtime and ensures consistent filtration performance.

Product technical

Seal type: O-rings and flat gasket

Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber, usually use silicon

Rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI

Filtration accuracy: 1μm - 100 μm

Body material: SS304/SS 316

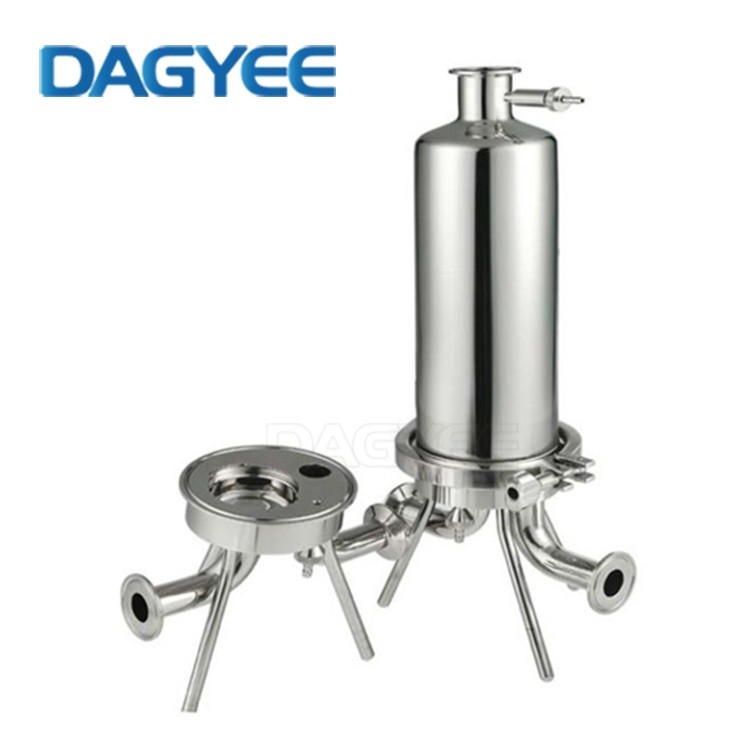

Single filter Cartridges housings

Model	Max. Flow Rate (m³/h)	Max. Operating Conditions (bar/°C)	Filter specifications	Inlet/Outlet	Height mm	Max. Cartridge Diameter mm
DYG-1-10"	0.5 M³/H	6/120	Ø65*250	1/2"	380	Ø89
DYG-1-20"	1 M³/H	6/120	Ø65*500	3/4"	630	Ø89
DYG-1-30"	1.5 M³/H	6/120	Ø65*750	1"	880	Ø89
DYG-1-40"	2 M³/H	6/120	Ø65*1000	1"	1130	Ø89

Single microporous filter housings

Model	Max. Flow Rate (m³/h)	Max. Operating Conditions (bar/°C)	Filter specifications	Inlet/Outlet-Quick Connector	Height mm	Max. Cartridge Outside Diameter
DYG-C1-10"	0.5 M³/H	6/120	Ø68*250	1 1/4"	608	Ø102
DYG-C1-20"	1 M³/H	6/120	Ø68*500	1 1/4"	850	Ø102
DYG-C1-30"	1.5 M³/H	6/120	Ø68*750	1 1/4"	1100	Ø102
DYG-C1-40"	2 M³/H	6/120	Ø68*1000	1 1/4"	1350	Ø102

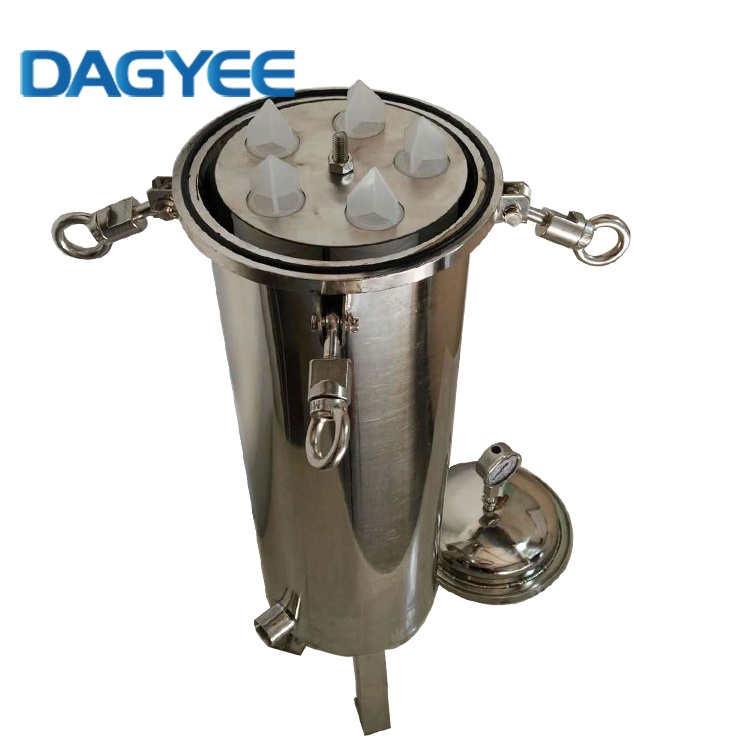

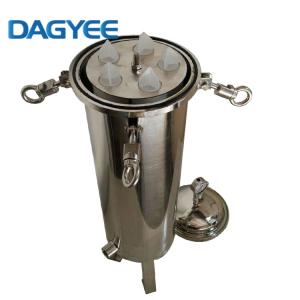

5 Cartridges filter Housings

Model	Max. Flow Rate (m³/h)	Max. Operating Conditions (bar/°C)	Filter specifications	Inlet/Outlet	Height mm	Max. Cartridge Outside Diameter
DYG-5-10"	2.5 M³/H	6/150	Ø65*250	3/4"	550	Ø219
DYG-5-20"	5 M³/H	6/150	Ø65*500	1"	850	Ø219
DYG-5-30"	7.5 M³/H	6/150	Ø65*750	1 1/2"	1100	Ø219
DYG-5-40"	10 M³/H	6/150	Ø65*1000	2"	1390	Ø219

5 Cartridges filter Housings with flange

Model	Max. Flow Rate (m³/h)	Max. Operating Conditions	Filter specifications	Inlet/Outlet	Height mm	Max. Cartridge Outside Diameter
DYG-5F-10'	2.5 M³/H	0-1.0MPa	Ø65*250	3/4"	550	Ø219
DYG-5F-20'	5 M³/H	0-1.0MPa	Ø65*500	1"	850	Ø219
DYG-5F-30'	7.5 M³/H	0-1.0MPa	Ø65*750	1 1/2"	1100	Ø219
DYG-5F-40'	10 M³/H	0-1.0MPa	Ø65*1000	2"	1390	Ø219

Single bag filter housings

Model	Max. Flow Rate (m³/h)	Max. Operating Conditions (bar/°C)	Filter specifications	Inlet/Outlet	Height mm	Max. Cartridge Outside Diameter
DYG-1-1S	18 M³/H	12/150	Ø180*410	1 1/2" flange	1040	Ø219
DYG-1-2S	36 M³/H	12/150	Ø180*810	2" flange	1300	Ø219
DYG-1-4S	10 M³/H	12/150	Ø105*380	1 1/2" BSP female	850	Ø133
DYG-1K-1S	18 M³/H	12/150	Ø180*410	1 1/2"flange	1010	Ø219

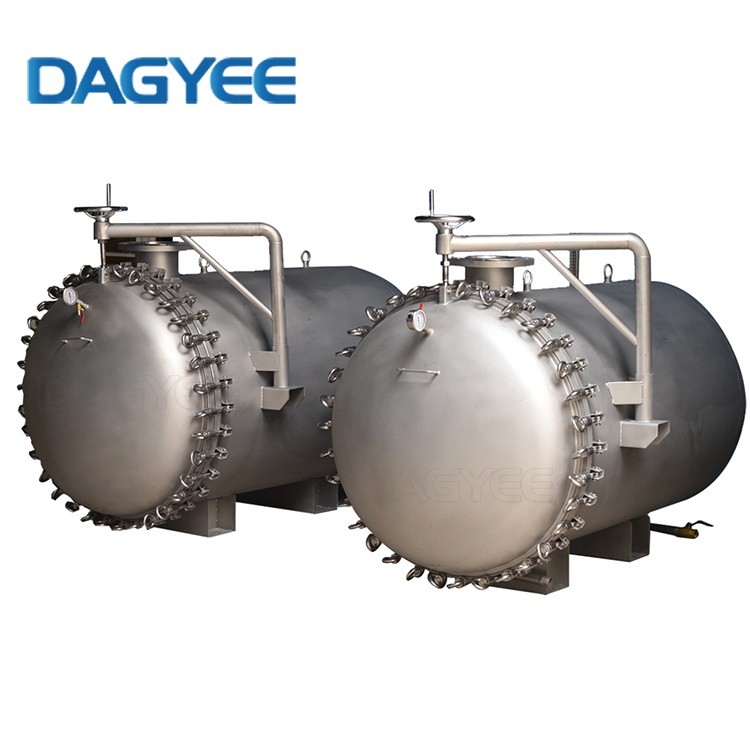

Multi Bag Filter Housings

Model	Max. Flow Rate (m³/h)	Max. Operating Conditions (bar/°C)	Filter specifications	Inlet/Outlet	Height mm	Max. Cartridge Outside Diameter
DYG-2D-2S	70 M³/H	12/150	Ø180*810	2"	1600	Ø420
DYG-3D-2S	100 M³/H	12/150	Ø180*810	3"	1800	Ø506
DYG-4D-2S	130 M³/H	12/150	Ø180*810	4"	1800	Ø506
DYG-6D-2S	200 M³/H	12/150	Ø180*810	4"	2100	Ø650
DYG-8D-2S	250 M³/H	12/150	Ø180*810	5"	2100	Ø710
DYG-12D-2S	400 M³/H	12/150	Ø180*810	6"	2100	Ø910

Product advantage

High-Efficiency Processing, Ensures Production: Capable of handling high-flow conditions that single-cartridge housings cannot meet, directly supporting main production lines and boosting overall capacity.

Extended Service Cycles, Reduces Costs: The high dirt-holding capacity significantly extends intervals between cartridge changes, reducing consumable costs and maintenance labor expenses.

System Redundancy, Ensures Operational Reliability: Even if one or several cartridges become clogged or damaged, the remaining cartridges continue to operate, providing a buffer for scheduled maintenance and effectively preventing unplanned downtime.

Product feature

1. Compact design.
2. Manufactured in stainless steel.
3. No internal moving parts to allow for easy access and reducing the cost of maintenance.
4. Ergonomic and easy-to-use cover closure.
5. Fully drainable filter housing.
6. Suitable for filter cartridges of 10″, 20″, 30″ or 40″ length.
7. Available from stock. DAGYEE can supply four standard sizes in stainless steel from stock. These are available with flanged connections.

Product application

Chemical & Petrochemical: Pre-filtration for membrane systems, catalyst recovery, chemical purification.

Power Generation: Filtration of feed water, condensate, and fuel oil.

Metallurgy & Metalworking: Centralized coolant filtration systems, rolling mill coolant purification.

Water & Wastewater Treatment: Pre-filtration for reverse osmosis (RO) systems, effluent polishing, municipal water treatment.

Food & Beverage: Bulk filtration of process water and solvents in large-scale production.od & Beverage: High-volume pre-filtration for ingredients, process water, and final product polishing.

Pharmaceutical: Bulk filtration of process water and solvents in large-scale production.
