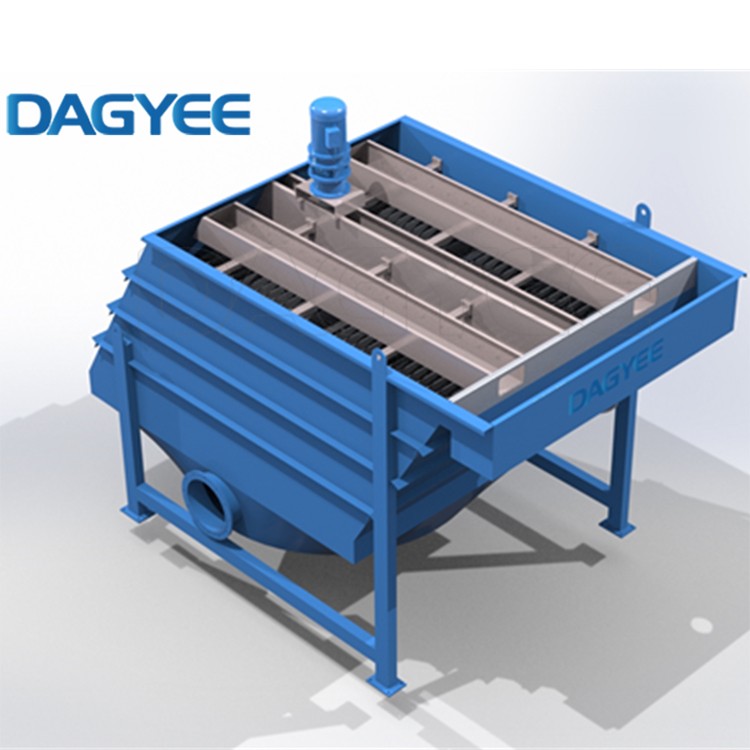

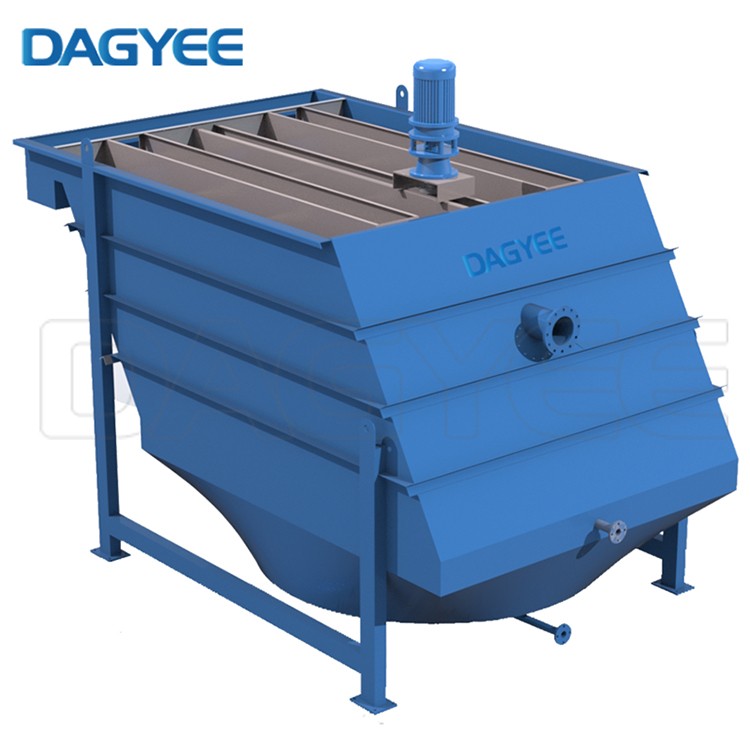

Seawater Desalination Pretreatment Lamella Clarifier

Seawater Desalination Pretreatment Lamella Clarifier

Product Item : DLC-010
Category： Lamella Separator
Certification:CE Certificate
Capacity:1-200 m3/h
Function:High TSS removal
Wastewater Treatment Plants
INQUIRY EMAIL

Lamella clarifier description

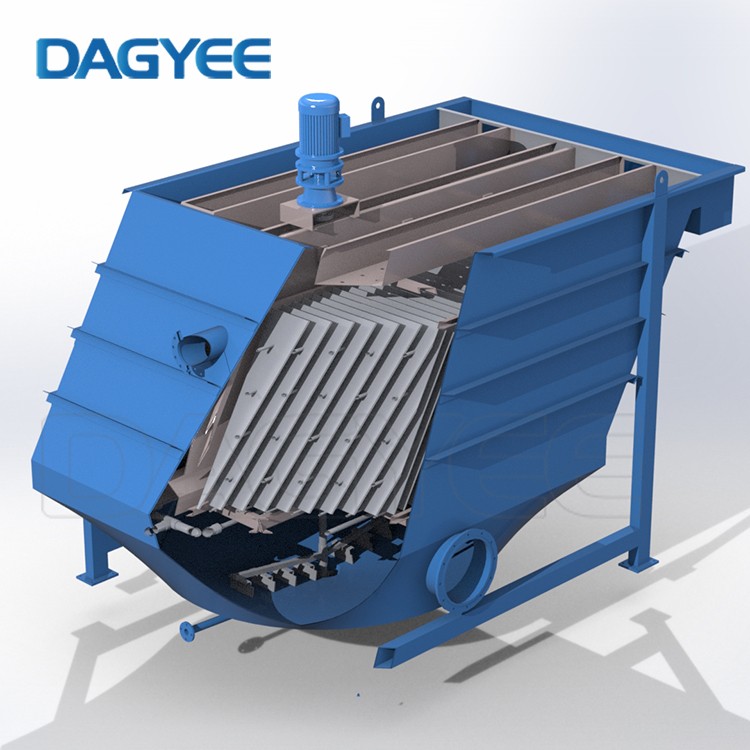

A Lamella Clarifier is a type of sedimentation tank that uses a series of inclined plates to separate solid particles from liquid. These plates, also known as lamella plates, are arranged at an angle to increase the effective settling area while reducing the footprint of the tank. The inclined plates create a flow pattern that allows solids to settle on the plates’ surface and slide down to the bottom of the tank. The clarified liquid exits the tank through a collection system located at the top of the unit.

Lamella clarifier principle

Clarifiers for wastewater treatment, manufactured by DAGYEE are the inclined parallel plate design that are used as part of a wastewater treatment system for solids settling. They are constructed of carbon steel with coal tar epoxy lining on the inside, and epoxy coating on the exterior. Also available in stainless steel and polypropylene. The internal plate packs are set at 60 degrees for optimum settling and are constructed of a coal tar epoxy-coated steel shell with plastic plates.

Lamella clarifier available options

• Flash mixing/flocculation tank with agitator
• Full glass steel or stainless steel structure
• Concrete tank design
• Special coatings and plates
• Integrated mechanical sludge thickener
• Overhaul platforms and ladders
• In-house laboratory analysis to optimize equipment
• Drinking water design
• Gasket and removable cover
• Automatic desilting
• Instrumentation and control
• Chemical feed equipment
• Sludge treatment and dewatering
• Pilot size units for field testing

Lamella clarifier model

DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

DLC Model	Capacities (m³/h)	Piping Connections (mm)				Physical Dimensions (m)
		Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC 5	5	80	80	50	50	2.55	1.6	2.9
DLC 10	10	100	100	50	50	3.35	1.82	3
DLC 15	15	100	100	50	50	3.35	2.02	3
DLC 20	20	100	100	50	50	3.35	2.02	3
DLC 30	30	150	150	50	50	4.2	2.22	3
DLC 40	40	150	150	50	50	4	2.8	3
DLC 50	50	200	200	50	50	4.65	2.82	3
DLC 60	60	200	200	50	50	4.7	3	3
DLC 70	70	250	200	50	50	6.4	2.6	3
DLC 80	80	250	200	50	50	6.8	2.82	3
DLC 100	100	250	250	50	50	7.05	3.02	3

Lamella clarifier advantage

Significantly reduced footprint: The Lamella System’s design reduces its footprint by up to 90% compared to conventional clarifiers, making it an ideal choice for space-constrained areas.
Operational Economy: Known for its low maintenance requirements, the Lamella Clarifier / Settler also eliminates the need for replacement parts, ensuring cost-effective operation over time.
Modular Design: The modular nature of the system facilitates easy expansion, allowing for scalability and adaptability to changing processing requirements.
Cost Efficiency: On a total installed basis, the Lamella Clarifier / Settler proves to be more cost-effective than traditional options, providing economic benefits from installation to operation.

Lamella clarifier feature

Our Lamella Clarifier / Settler is the space efficient settling solution for water and wastewater treatment, including reuse of process and backwash water.

Our system is a complete modular solution that includes a flocculation tank, mixers and a sludge scraper. This comprehensive package ensures a seamless, integrated process from start to finish. The modular design allows for easy installation and adaptability to different requirements, making it a versatile choice for many applications.

Our Lamella settler is commonly used in potable water and sewage treatment works, as well as the pulp and paper, chemical process, food processing, surface treatment, power, mining & minerals, iron and steel industries.

Lamella clarifier application

These systems are applied across diverse industries due to their efficiency and flexibility. In addition to traditional wastewater applications, lamella clarifiers offer value in more specialized contexts.
