Portable Sedimentation Clarifier with Lamella Plates for Emergency Water Treatment

Product Item : DLC-010
Category： Lamella Separator
Material: PP (Polypropylene) / Stainless Steel
Certification:CE Certificate
Function: High TTS Removel
Applications: Industrial & Municipal Water Treatment
INQUIRY EMAIL

Sedimentation Clarifier with Lamella Plates Description

A sedimentation clarifier with lamella plates is a compact, high-efficiency sedimentation device designed to separate suspended solids from water. Compared to traditional settling tanks, these systems use inclined plates to maximize the effective surface area for sedimentation — without occupying large ground space.

Sedimentation Clarifier with Lamella Plates Structures

Structural steel support legs
Epoxy painted carbon steel tank
Individually removable FRP plates
Adjustable effluent weir plates
Standard units can be manufactured for flows from 5 gpm to 3000 gpm and above in a
single above-grade tank
One-piece prefabricated units are available with up to 1,000 sf of effective settling area
Single tank construction with integral flash mix/floc compartments for smaller units
Multiple sample connections

Lamella Gravity Settler

Sedimentation Clarifier with Lamella Plates Model

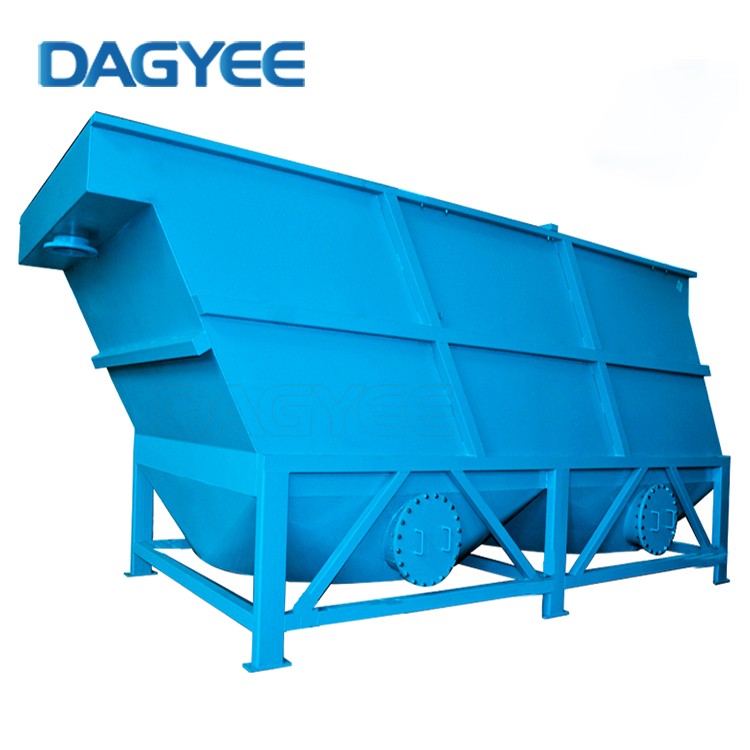

DLC-I Gravity Lamella, V shape mud bucket, simple structure, no energy consumption.

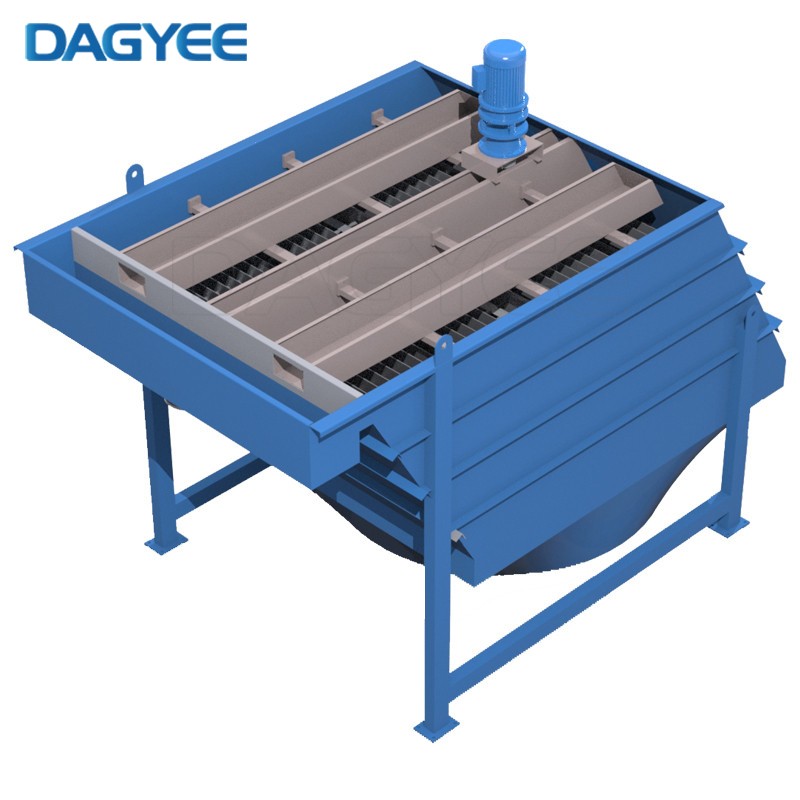

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC Model	Capacities (m³/h)	Piping Connections()				Physical Dimensions(m)
DLC Model	Capacities (m³/h)	Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

Sedimentation Clarifier with Lamella Plates Advantages

Significantly reduced footprint: The Lamella System’s design reduces its footprint by up to 90% compared to conventional clarifiers, making it an ideal choice for space-constrained areas.
Operational Economy: Known for its low maintenance requirements, the Lamella Clarifier / Settler also eliminates the need for replacement parts, ensuring cost-effective operation over time.
Modular Design: The modular nature of the system facilitates easy expansion, allowing for scalability and adaptability to changing processing requirements.
Cost Efficiency: On a total installed basis, the Lamella Clarifier / Settler proves to be more cost-effective than traditional options, providing economic benefits from installation to operation.
