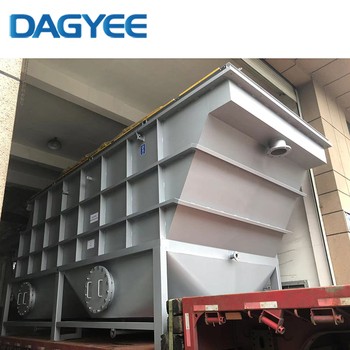

Sludge Removal Automatic Lamella Clarifier

Product Item : DLC-010
Category： Lamella Separator
Material: PP (Polypropylene) / Stainless Steel
Certification:CE Certificate
Function:High TSS removal
Applications: Industrial & Municipal Water Treatment
INQUIRY EMAIL

Automatic Lamella Clarifier Description

DAGYEE a leading Automatic Lamella Plate Vertical Clarifier manufacturer in India, manufactures highly efficient systems designed for the effective removal of solids from a wide variety of wastewater and process liquids. As a leading “Lamella Plate Vertical clarifier manufacturer,” DAGYEE incorporates innovative inclined plate technology, allowing these units to provide significantly greater gravity settling areas—up to ten times the actual floor space occupied by the clarifier. This makes them ideal for plants requiring efficient water treatment in a compact footprint.

Automatic Lamella Clarifier Functions

The DAGYEE clarifier uses the time proven concept of inclined plate clarification. This type of clarifier uses gravity in conjunction with the projected settling area of the 60-degree angle plastic parallel plates to settle solids from the pre-treated liquid flow. This treated liquid flows first to the flocculation tank where a polymer is added to promote floc growth, then down to the bottom of the clarifier and up through the plate pack(s) while the solids settle out to the bottom sludge cone or cones – depending upon the size. The solids are intermittently taken from the bottom cone tank for a further settling of the solids and then, finally to a filter press for final dewatering. (Click Here for Clarifier Frequently Asked Questions)

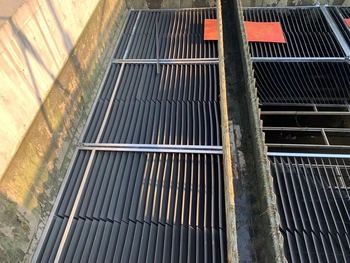

Clarifiers for wastewater treatment, manufactured by DAGYEE are the inclined parallel plate design that are used as part of a wastewater treatment system for solids settling. They are constructed of carbon steel with coal tar epoxy lining on the inside, and epoxy coating on the exterior. Also available in stainless steel and polypropylene. The internal plate packs are set at 60 degrees for optimum settling and are constructed of a coal tar epoxy-coated steel shell with plastic plates.

Lamella Gravity Settler

Automatic Lamella Clarifier Model

DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC Model	Capacities (m³/h)	Piping Connections()				Physical Dimensions(m)
DLC Model	Capacities (m³/h)	Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

Automatic Lamella Clarifier Characteristics

First of all, a lamella clarifier is generally more expensive than a conventional clarifier. This is because of the lamellae inside.

However, since the lamella clarifier is about 10 times more efficient than a conventional clarifier in terms of sludge index and Hazen speed, this is not a decisive argument.

Another issue is the necessity to clean the lamellae. The thin lamellae (less than 2 mm) can collapse under the weight of the sludge, so it is necessary to clean them often. The clarifiers with the automatic lamellae cleaning option are more convenient and do not have this problem.

On the other hand, the inconveniences are somehow negotiable and depend on the needs and criteria of each user.
