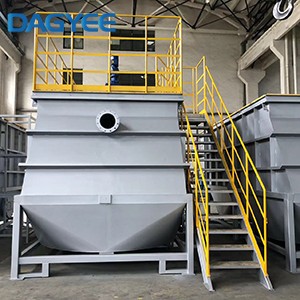

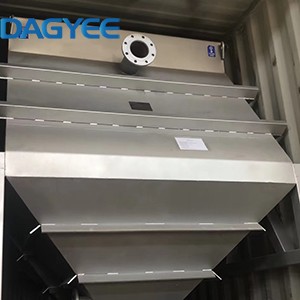

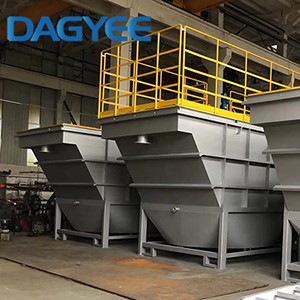

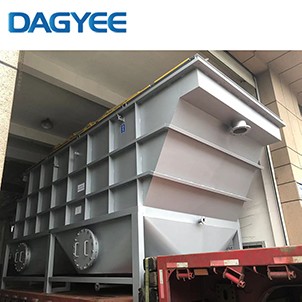

PP Lamella Gravity Settler for Sludge Separation

Lamella Gravity Settler Description

---

The implementation of lamella clarifiers in wastewater treatment is widely recognized due to their numerous advantages, such as their ability to handle high flow rates and their versatility across various industries. They are an essential element in the treatment process, appearing in sectors like municipal sewage treatment, industrial effluent processing, and water recycling. Proper installation and maintenance of lamella clarifiers are crucial for their optimal performance and compliance with environmental regulations. Recent technological advancements have further improved the efficacy of these systems, making them more sustainable and cost-effective solutions for wastewater management.

Available options

---

• Continuous operation.
• Due to its small volume no need to allocate large storage when emptying.
• No drive nor mechanical parts.
• Filling and emptying time is short.
• Small floor area footprint.
• Modular design for future expansions.

 Lamella Gravity Settler Model

---

DLC-I  Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

DLC Model	Capacities (m3/h)	Piping Connections()				Physical Dimensions(m)
		Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

 Lamella Gravity SettlerCharacteristics

---

A lamella clarifier is a compact, high-efficiency sedimentation device designed to separate suspended solids from water. Compared to traditional settling tanks, these systems use inclined plates to maximize the effective surface area for sedimentation — without occupying large ground space.
Main Features:

• Fixed-angle plates (usually 45°–60°)
• Compact design with efficient settling
• Ideal for modern and retrofit installations

Lamella Gravity Settler Applications

---

  These systems are applied across diverse industries due to their efficiency and flexibility. In addition to traditional wastewater applications, lamella clarifiers offer value in more specialized contexts.

• Municipal water & wastewater
• Construction sites
• Industrial process water
• Food & beverage sector
• Pharmaceutical & chemical production
• Oil and gas operations

  Because space is often limited and sedimentation efficiency is vital, lamella clarifiers consistently stand out in these environments.
