High-Efficiency Inclined Plate Clarifier for Wastewater Treatment

High-Efficiency Inclined Plate Clarifier for Wastewater Treatment

Product Item : DLC-010
Category： Lamella Separator
Material: PP (Polypropylene) / Stainless Steel
Certification:CE
Function:High TSS removal
Applications: Industrial & Municipal Water Treatment
INQUIRY EMAIL

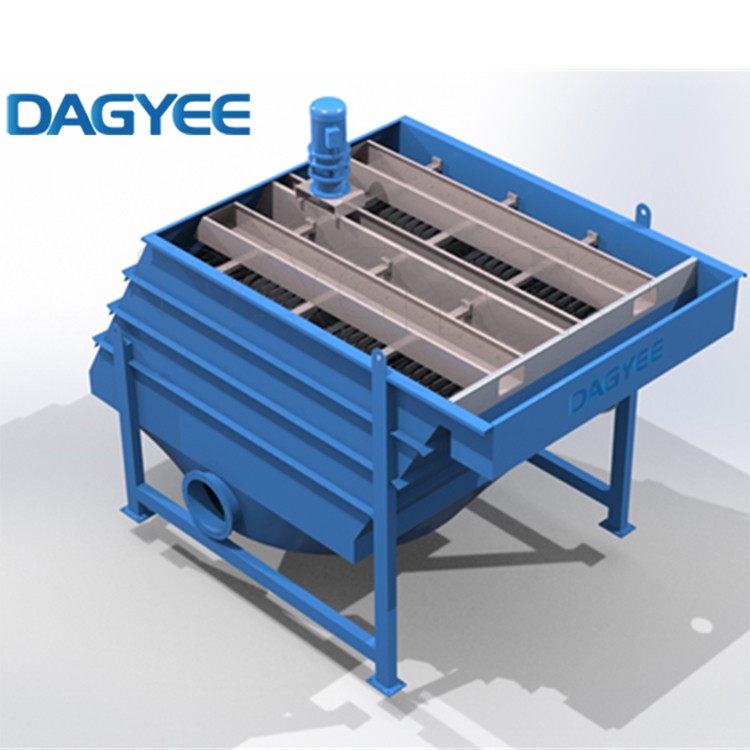

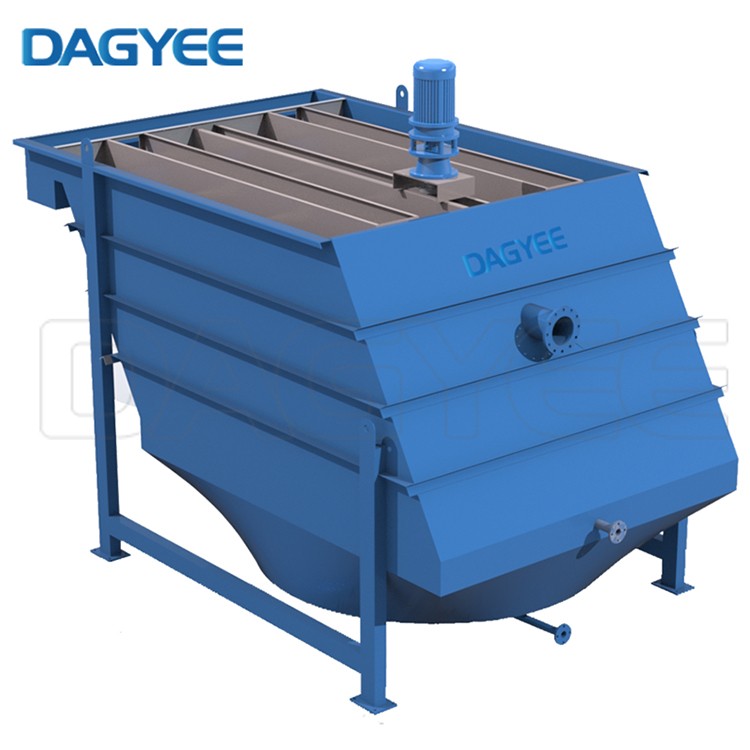

Inclined Plate Clarifier Description

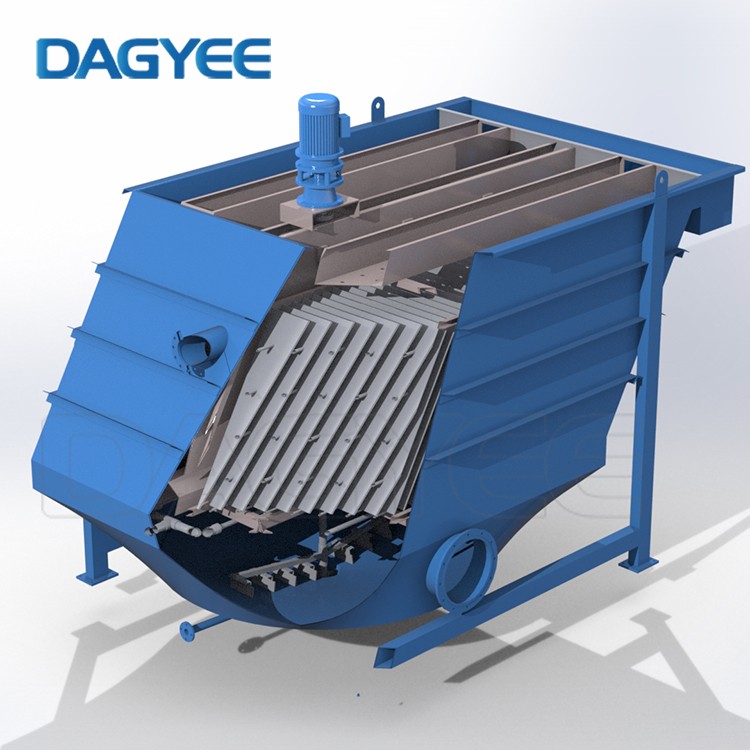

Inclined plate clarifier also called inclined plate sediment tank. It is good at high efficient combined type settling tank; set many dense inclined tube packing in sediment area, to make the suspended impurity in water sediment, water rise flow along inclined tube, the separated sludge down to the tank bottom along the inclined tube by gravity, then discharge it in concentration. Such tank can improve sediment efficiency 60~70%, it can improve treatment capacity 3~5 times in the same area. It can design different flow rate inclined plate sediment device according to raw waste water test report, it need dose flocculant usually.

Available options

Flash mixing/flocculation tank with agitator
Full glass steel or stainless steel structure
Concrete tank design
Special coatings and plates
Integrated mechanical sludge thickener
Overhaul platforms and ladders
In-house laboratory analysis to optimize equipment
Drinking water design
Gasket and removable cover
Automatic desilting
Instrumentation and control
Chemical feed equipment
Sludge treatment and dewatering
Pilot size units for field testing

Lamella Gravity Settler

Inclined Plate Clarifier Model

DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC Model	Capacities (m³/h)	Piping Connections()				Physical Dimensions(m)
DLC Model	Capacities (m³/h)	Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

Inclined Plate Clarifier Advantages

Inclined plate clarifiers present several benefits in wastewater treatment processes. They are designed to maximize settling efficiency while minimizing the footprint required.
Compact Design: Lamella clarifiers utilize inclined plates, which provide a large effective settling area within a compact unit. This design vastly increases the surface area for sedimentation compared to conventional clarifiers.
High Efficiency: Due to the increased surface area from the inclined plate design, settling is more efficient. Suspended particles are effectively removed, making it suitable even for high-flow applications.
Cost-effectiveness: The efficiency of lamella clarifiers can lead to reduced operational costs. They offer better process performance in a smaller space, leading to potential savings in construction and land costs.
Flexibility: These clarifiers can be used in various settings, including both traditional and parallel treatment trains, in new or existing wastewater facilities.
Reduced Sludge Volume: An efficient solid-liquid separation results in less sludge volume, which subsequently reduces the cost associated with sludge handling and disposal.
Low Maintenance: The simplicity of the lamella design often results in lower maintenance needs. Fewer moving parts equate to less wear and tear, as well as lower operational complexity.
By providing advantages such as a compact footprint, efficient processing, and low maintenance, lamella clarifiers have become a favorable option for many wastewater treatment facilities aiming to improve their solid-liquid separation stages.
