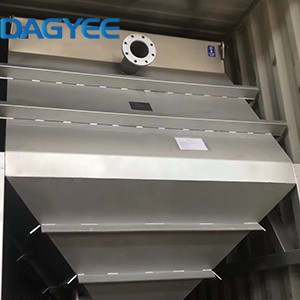

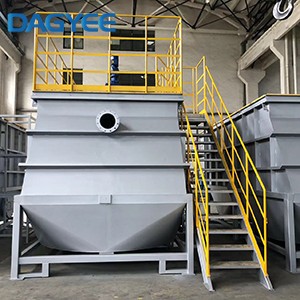

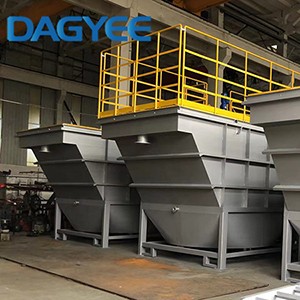

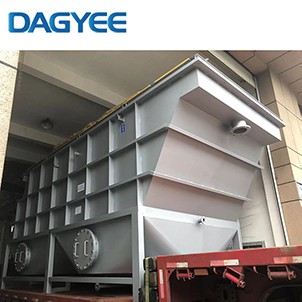

Lamella Settler Description
Lamella Settler Manufacturer DAGYEE manufactures Inclined Plate Lamella Clarifiers designed to fit your needs and budget. We offer a large variety of clarifier sizes and options needed for your industry and application.
Lamella Settler Function
Total Suspended Solids (TSS) will naturally settle over time due to gravity, but this process can be sped up and improved by having an Inclined Plate. Water flows up the plate at a 60° angle. Gravity will force the solids to settle onto the plate. The particles collect on the plates will become heavier and slide back down the plate to the clarifier cone. This process creates a counter flowing pattern, where the solids are separated from the liquid into two lanes of traffic. The water flows in the upward bound lane, and the sludge flows in the downward lane. This method reduces drag and friction creating a faster settling process than if the solids were to settle naturally.
Flocculants and Coagulants are added to improve the settling time. Coagulants neutralize the negative charge particles allowing them to sink faster. Flocculants allow for the small particles to collect and accumulate. This will make the solids heavier and easier to settle.
Lamella Settler Model
DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.
DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.
DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.
DLC
Model
Capacities
(m3/h)
Piping Connections()
Physical Dimensions(m)
Inlet(a)
Effluent(b)
Sludge(c)
Backwash(d)
L
W
H
DLC-
5
80
80
50
50
2.55
1.6
2.9
DLC-
10
100
100
50
50
3.35
1.82
3
DLC-
15
100
100
50
50
3.35
2.02
3
DLC-
20
100
100
50
50
3.35
2.02
3
DLC-
30
150
150
50
50
4.2
2.22
3
DLC-
40
150
150
50
50
4
2.8
3
DLC-
50
200
200
50
50
4.65
2.82
3
DLC-
60
200
200
50
50
4.7
3
3
DLC-
70
250
200
50
50
6.4
2.6
3
DLC-
80
250
200
50
50
6.8
2.82
3
DLC-
100
250
250
50
50
7.05
3.02
3
Lamella Settler Characteristics
Our Lamella Clarifier / Settler is the space efficient settling solution for water and wastewater treatment, including reuse of process and backwash water.
Our system is a complete modular solution that includes a flocculation tank, mixers and a sludge scraper. This comprehensive package ensures a seamless, integrated process from start to finish. The modular design allows for easy installation and adaptability to different requirements, making it a versatile choice for many applications.
Our Lamella settler is commonly used in potable water and sewage treatment works, as well as the pulp and paper, chemical process, food processing, surface treatment, power, mining & minerals, iron and steel industries. Applications include the purification of raw water, primary and secondary effluents, re-use of process and backwash water.
Lamella Settler Applications
Municipal
Industrial
