Automatic Cleaning Internally Rotary Drum Screen for Water Purification Plants

Automatic Cleaning Internally Rotary Drum Screen for Water Purification Plants

Category： Internally Drum Screen
Self-Cleaning: Yes, with High-Pressure Spray Nozzles
Spray Water Pressure: 4 - 6 Bar
Reduced Maintenance: Anti-Clogging Design
Accessory: Integrated Splash Guard & Collection Tray
INQUIRY EMAIL

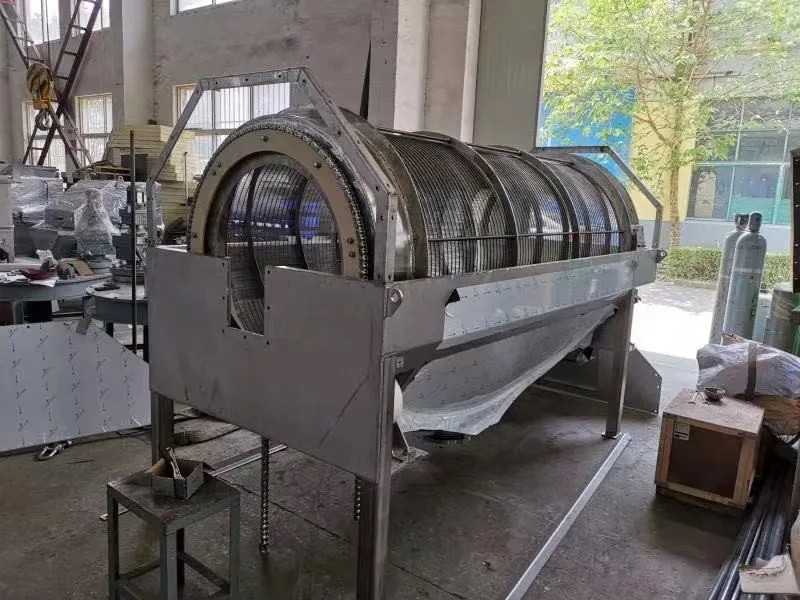

Internally rotary drum screen description

The Internally Fed Rotary Drum Screen utilizes a direct drive system to eliminate the use of belts, chains or sprockets.

A combination of stainless-steel shoes and UHMW polyethylene wear strips replace the use of trunnion wheels reducing labor intensive maintenance.

The screening panels remove easily for regular cleaning and to allow access inside the drum without disassembling the machine.

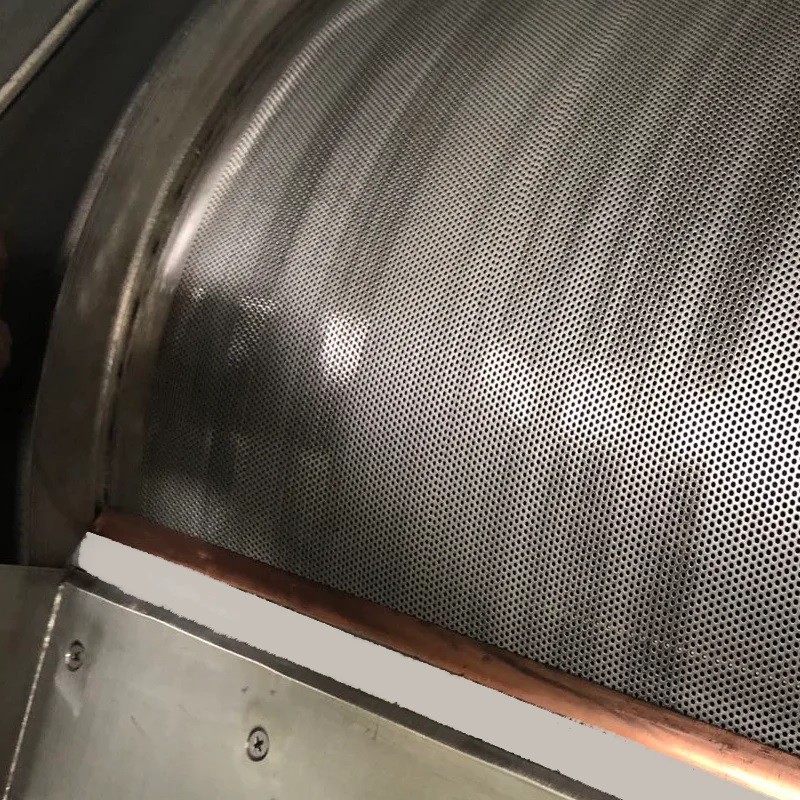

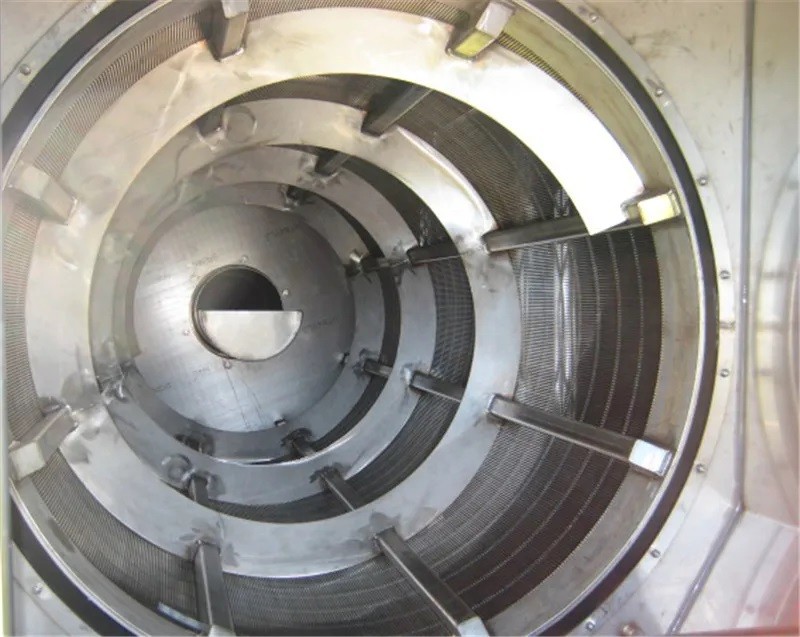

Screening panels are available in wedge wire, perforated plate and wire mesh in various opening sizes to optimize debris removal.

Internally rotary drum screen function

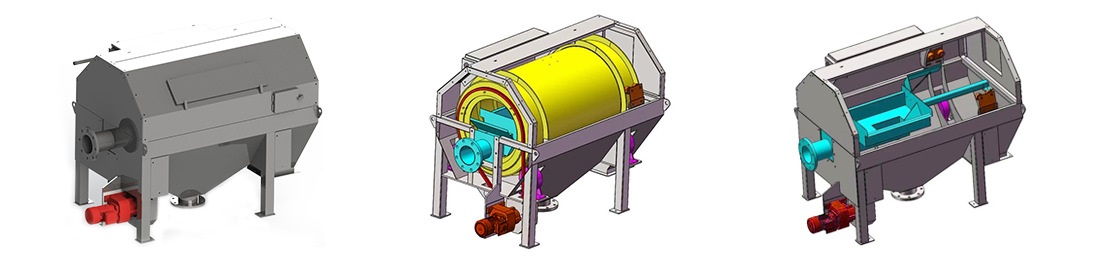

Our internally fed rotary screen operates with minimal attendance.

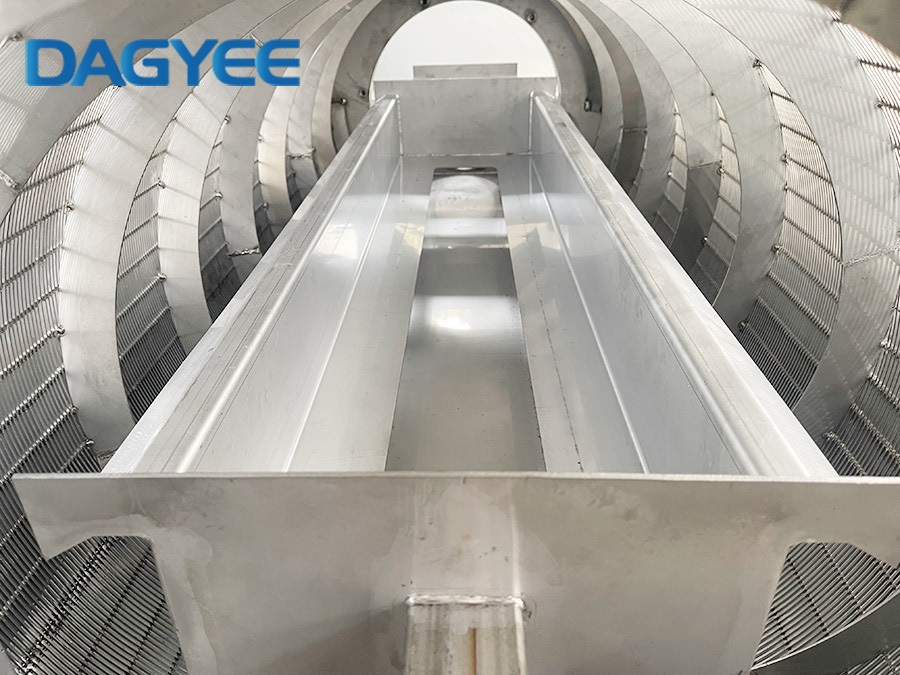

Influent enters through the inlet and flows into a headbox.

The headbox fills and the influent cascades over the weirs and contacts two sides of the rotating cylinder screen.

As the influent hits the turning screen, the solids are caught inside the cylinder and the liquid passes through the screen into the process or on for further treatment.

Diverters on the cylinder move the solids along the length of the screen to discharge.

The unit is equipped with spray bar(s) to clean the screen.

DAGYEE has undergone continual updates to incorporate new design enhancements, and today it represents a complete family of screens.

There are 12 models with custom features specific to various applications.

Opening sizes range from 0.010" to 0.100" (.25 to 2.5 mm) and hydraulic capacities from 450 to over 13,000 GPM (102 to 2955 m3 /h).

The material standard is 304 stainless steel, but 316 and L grades are available, as well.

Heavy-duty models are available for heavy solids loadings.

Internally rotary drum screen model

DIRD Model	Drum size	Physical Dimensions(mm)			Power	Weight (Kg)	Capacities(m³/h)			Sludge height
DIRD Model	Drum size	L	W	H	Power	Weight (Kg)	1mm	2mm	3mm	Sludge height
IRD6-900	Ø600×900	1900	1350	1700	0.55	630	15	25	30	500
IRD6-1200	Ø600×1200	2200	1350	1700	0.55	820	30	50	60	500
IRD6-1500	Ø600×1500	2500	1350	1700	0.75	1000	45	70	85	500
IRD6-1800	Ø600×1800	2800	1350	1700	0.75	1160	60	100	120	500
IRD6-2100	Ø600×2100	3100	1350	1700	1.1	1300	80	135	170	500
IRD9-1200	Ø900×1200	2300	1600	2200	1.1	1200	40	70	85	600
IRD9-1800	Ø900×1800	2900	1600	2200	1.1	1470	80	135	170	600
IRD9-2500	Ø900×2500	3600	1600	2200	1.5	1800	120	200	250	600
IRD9-3000	Ø900×3000	4100	1600	2200	1.5	2100	160	270	350	600

Internally rotary drum screen advantage

1. Internally fed wedgewire drum screen without doctor blade maintenance reduces maintenance costs and hours.
2. Proven design with over 1000 installations.
3. Different headbox designs and flighting provide variety for wide-ranging solids loadings and solids types.

Internally rotary drum screen feature

1. No lube chain decreases operator maintenance.
2. Optional drain pan and discharge end enclosure provides installation flexibility.
3. External and optional internal spray bars keep unit self-cleaning to reduce downtime and maintenance.
