Universal Filter Cartridge Housings for Replacement Applications

Filter Cartridge Housings Description

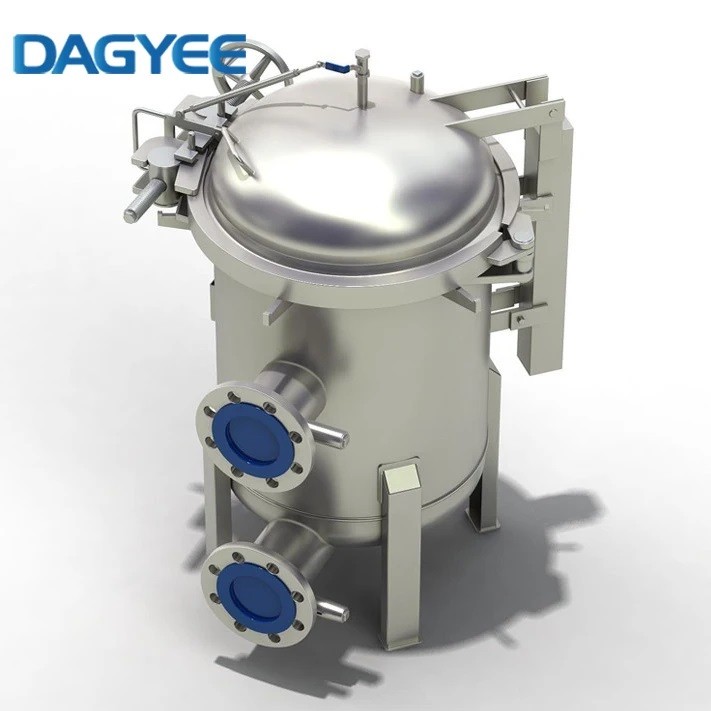

Cartridge filter housings are critical components ensuring efficient and effective filtration. DAGYEE manufactures a broad line of both ASME code vertical and horizontal cartridge housings with standard flow rates of up to 8,000 GPM.  Housings are built to meet project specifications. DAGYEE is the custom manufacturer of cartridge filter housings for industrial filtration needs.

Filter Cartridge Housings Function

Robust Construction: Typically made from corrosion-resistant materials like Stainless Steel (SUS 304/316L), carbon steel, or plastic (PP, PVC) to withstand harsh operating conditions and pressures.

Versatile Design: Available in single, dual, or multi-cartridge configurations to meet varying flow rate and redundancy requirements.

Easy Maintenance: Features a quick-release clamp or bolted design for easy opening, allowing for fast and simple cartridge replacement without tools.

Comprehensive Sealing: Equipped with high-quality O-rings and gaskets to prevent leaks and ensure system integrity.

Pressure & Vacuum Ratings: Engineered to operate safely at specific pressure and temperature ranges, often equipped with pressure gauges and relief valves.

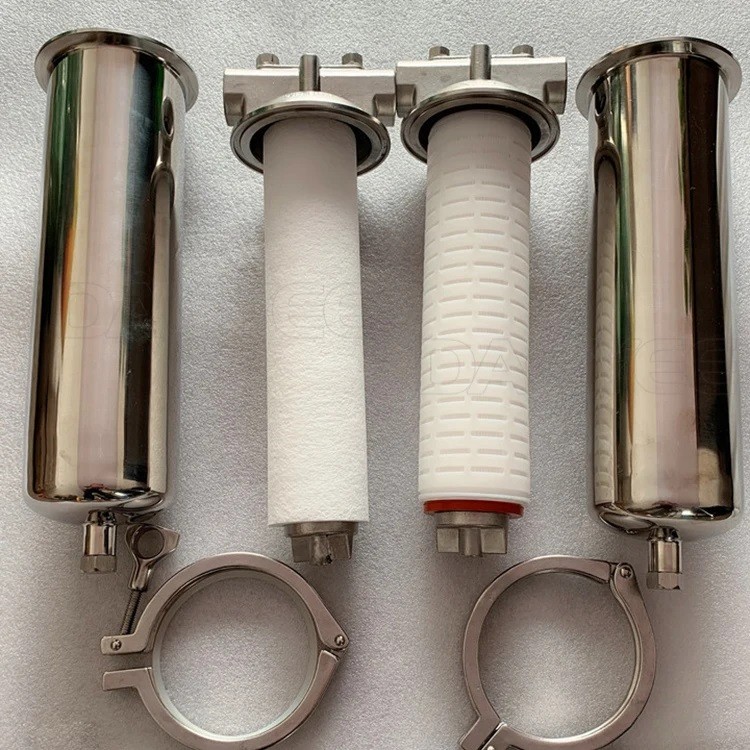

Broad Compatibility: Designed to accommodate a wide array of standard filter cartridges (e.g., string-wound, meltblown, pleated, activated carbon).

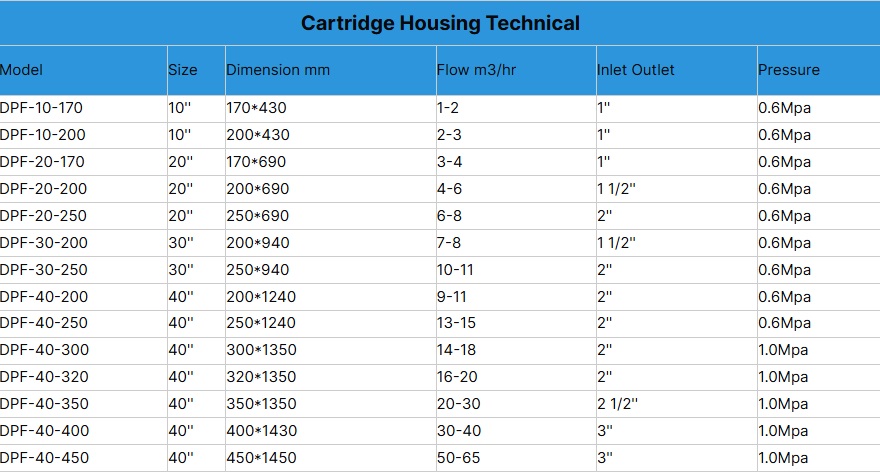

Filter Cartridge Housings Parameter

Filter Cartridge Housings Advantage

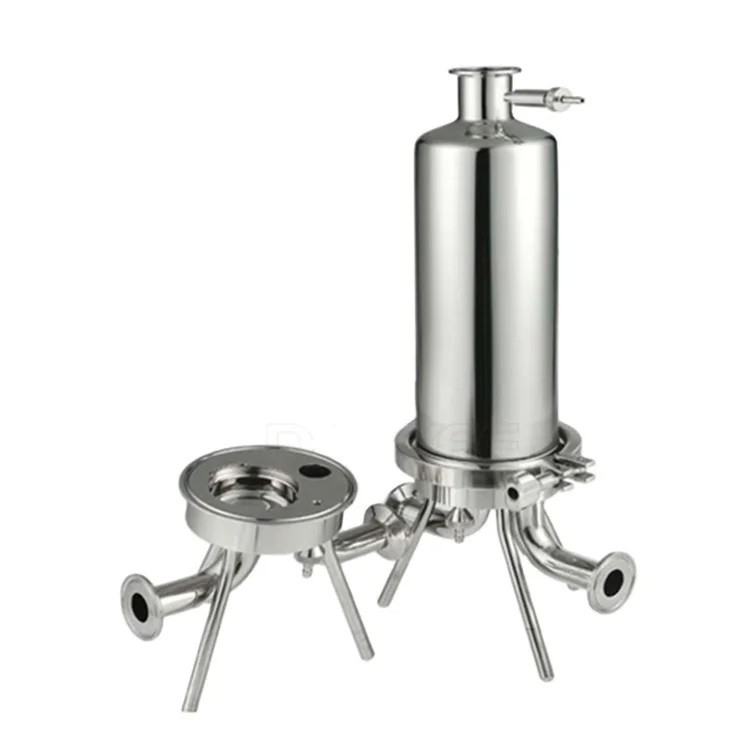

Single cartridge design

Patented Up-flow design
Coated option available
Flow rates to 150 GPM (WB) and to 600 GPM (WB 5x170FL)
Offered in 304 / 316 stainless steel

Filter Cartridge Housings Characteristics

Combination cyclone separator and cartridge filter in a single design

Patented Up-flow design
Flow rates to 2,400GPM (SBHF), 1,200GPM (SB), 150GPM (HP)

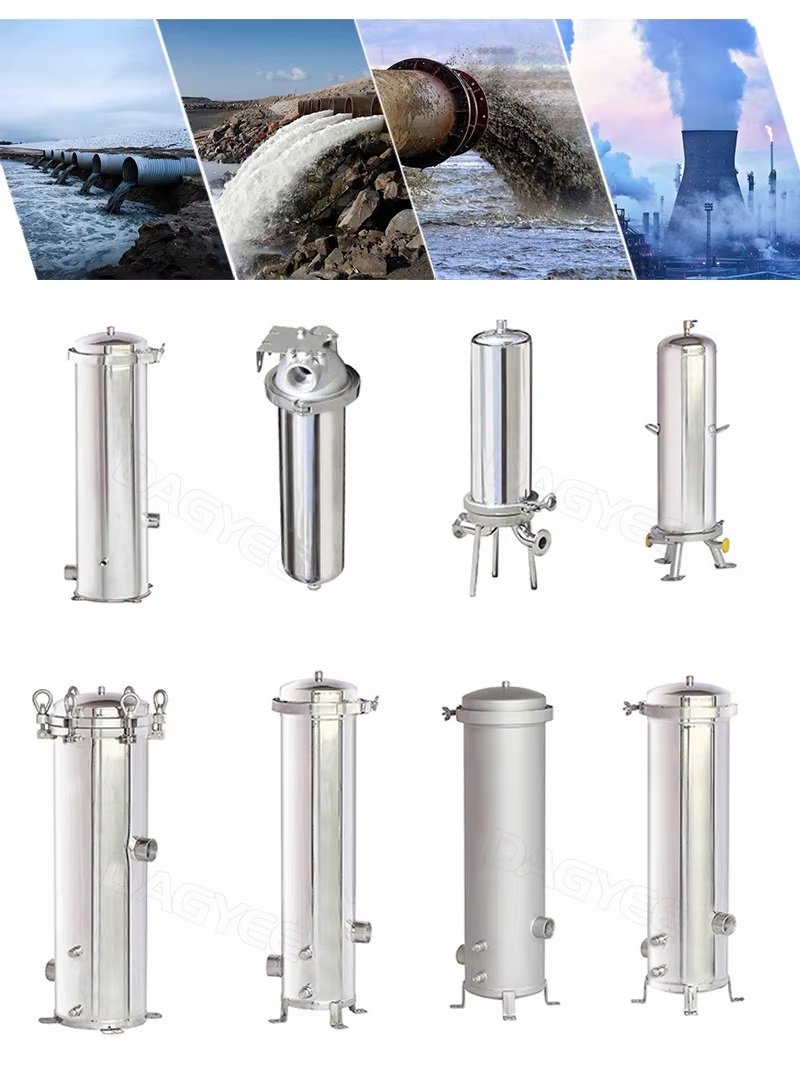

Filter Cartridge Housings Application

Water Treatment: In water treatment plants, cartridge filter housings are used to remove suspended solids, bacteria, and other impurities from raw water, ensuring clean water for municipal and industrial use.

Pharmaceuticals: In pharmaceutical manufacturing, cartridge filter housings are used to ensure the purity of process fluids, protecting products from contamination and ensuring compliance with strict quality standards.

Food and Beverage: These housings are used to maintain the purity of ingredients and final products, ensuring compliance with hygiene and safety standards in the food and beverage industry.

Petrochemicals: In the petrochemical industry, cartridge filter housings protect equipment and processes by removing particulates from hydrocarbons, solvents, and other fluids.
Manufacturing: In various manufacturing processes, cartridge filter housings are used to purify process fluids, ensuring the quality of products and protecting equipment from damage.

Electronics: In the electronics industry, cartridge filter housings are used to remove particles and impurities from process fluids, ensuring the quality and reliability of electronic components.
