Product description
Industrial Filtration Housings
Also known as filter vessels, housings encase filter bags and cartridges. Fil-Trek heavy-duty housings are available in various sizes, materials of construction and custom features for high-level filtration. An ideal choice for stand-alone, manifold or duplex filter systems.
Product function
Inflow: The unfiltered liquid enters the common inlet chamber of the housing.
Parallel Distribution: The flow is evenly distributed across all the filter cartridges housed within the vessel.
Simultaneous Filtration: The fluid passes from the outside to the inside of each cartridge simultaneously. Contaminants are trapped on the exterior surface or within the depth of the cartridge media.
Consolidated Outflow: The purified fluid from each cartridge converges into a common outlet chamber before exiting the housing.
High Capacity: This parallel design allows the system to handle large volumes of fluid while capturing a significant amount of contaminants before maintenance is required.
Product technical
Seal type: O-rings and flat gasket
Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber, usually use silicon
Rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI
Filtration accuracy: 1μm - 100 μm
Body material: SS304/SS 316

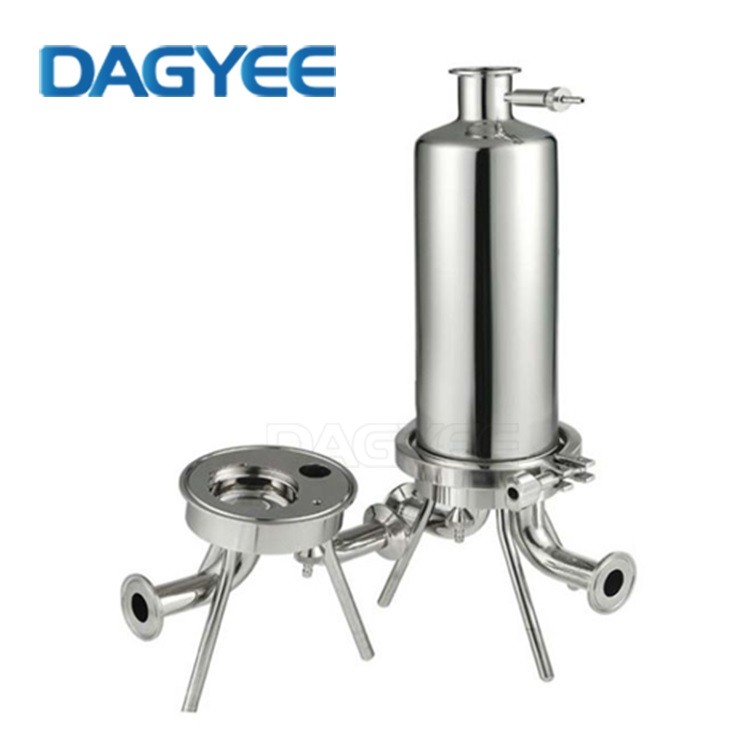

Single filter Cartridges housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Diameter mm |
|---|---|---|---|---|---|---|
| DYG-1-10" | 0.5 M³/H | 6/120 | Ø65*250 | 1/2" | 380 | Ø89 |
| DYG-1-20" | 1 M³/H | 6/120 | Ø65*500 | 3/4" | 630 | Ø89 |
| DYG-1-30" | 1.5 M³/H | 6/120 | Ø65*750 | 1" | 880 | Ø89 |
| DYG-1-40" | 2 M³/H | 6/120 | Ø65*1000 | 1" | 1130 | Ø89 |
Single microporous filter housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet-Quick Connector | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-C1-10" | 0.5 M³/H | 6/120 | Ø68*250 | 1 1/4" | 608 | Ø102 |
| DYG-C1-20" | 1 M³/H | 6/120 | Ø68*500 | 1 1/4" | 850 | Ø102 |
| DYG-C1-30" | 1.5 M³/H | 6/120 | Ø68*750 | 1 1/4" | 1100 | Ø102 |
| DYG-C1-40" | 2 M³/H | 6/120 | Ø68*1000 | 1 1/4" | 1350 | Ø102 |

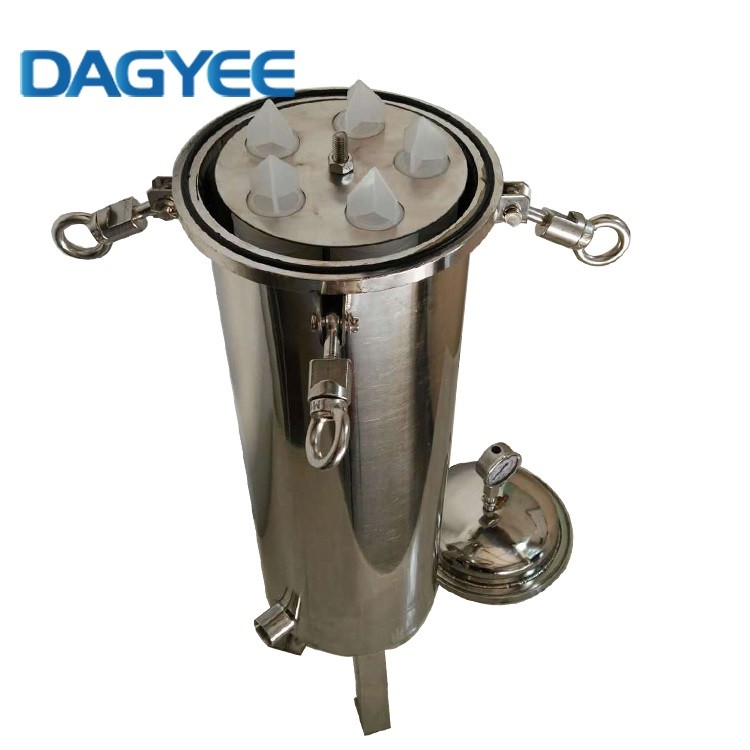

5 Cartridges filter Housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-5-10" | 2.5 M³/H | 6/150 | Ø65*250 | 3/4" | 550 | Ø219 |
| DYG-5-20" | 5 M³/H | 6/150 | Ø65*500 | 1" | 850 | Ø219 |
| DYG-5-30" | 7.5 M³/H | 6/150 | Ø65*750 | 1 1/2" | 1100 | Ø219 |
| DYG-5-40" | 10 M³/H | 6/150 | Ø65*1000 | 2" | 1390 | Ø219 |
5 Cartridges filter Housings with flange
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-5F-10' | 2.5 M³/H | 0-1.0MPa | Ø65*250 | 3/4" | 550 | Ø219 |
| DYG-5F-20' | 5 M³/H | 0-1.0MPa | Ø65*500 | 1" | 850 | Ø219 |
| DYG-5F-30' | 7.5 M³/H | 0-1.0MPa | Ø65*750 | 1 1/2" | 1100 | Ø219 |
| DYG-5F-40' | 10 M³/H | 0-1.0MPa | Ø65*1000 | 2" | 1390 | Ø219 |
Single bag filter housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-1-1S | 18 M³/H | 12/150 | Ø180*410 | 1 1/2" flange | 1040 | Ø219 |
| DYG-1-2S | 36 M³/H | 12/150 | Ø180*810 | 2" flange | 1300 | Ø219 |
| DYG-1-4S | 10 M³/H | 12/150 | Ø105*380 | 1 1/2" BSP female | 850 | Ø133 |
| DYG-1K-1S | 18 M³/H | 12/150 | Ø180*410 | 1 1/2"flange | 1010 | Ø219 |

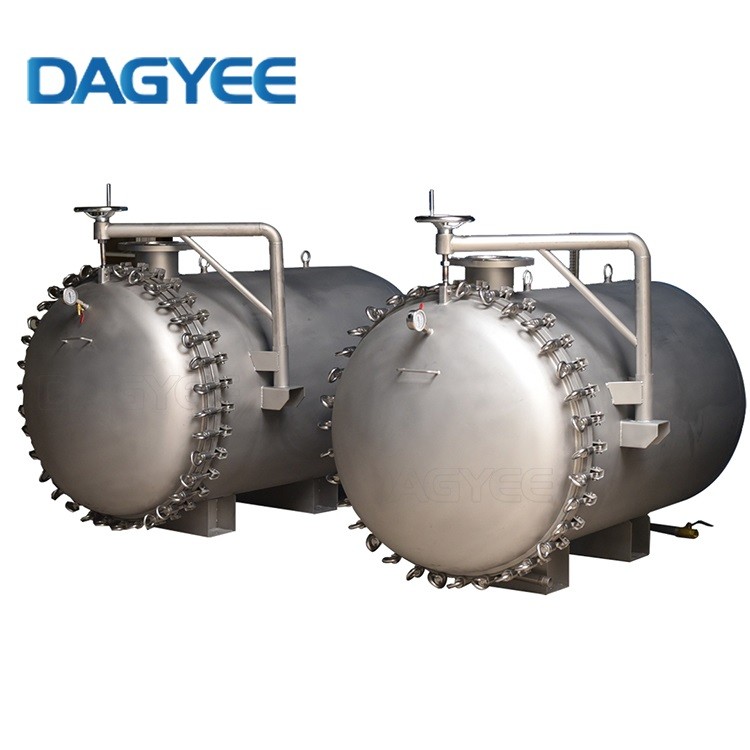

Multi Bag Filter Housings
| Model | Max. Flow Rate (m³/h) | Max. Operating Conditions (bar/°C) | Filter specifications | Inlet/Outlet | Height mm | Max. Cartridge Outside Diameter |
|---|---|---|---|---|---|---|
| DYG-2D-2S | 70 M³/H | 12/150 | Ø180*810 | 2" | 1600 | Ø420 |
| DYG-3D-2S | 100 M³/H | 12/150 | Ø180*810 | 3" | 1800 | Ø506 |
| DYG-4D-2S | 130 M³/H | 12/150 | Ø180*810 | 4" | 1800 | Ø506 |
| DYG-6D-2S | 200 M³/H | 12/150 | Ø180*810 | 4" | 2100 | Ø650 |
| DYG-8D-2S | 250 M³/H | 12/150 | Ø180*810 | 5" | 2100 | Ø710 |
| DYG-12D-2S | 400 M³/H | 12/150 | Ø180*810 | 6" | 2100 | Ø910 |
High-Efficiency Processing, Ensures Production: Capable of handling high-flow conditions that single-cartridge housings cannot meet, directly supporting main production lines and boosting overall capacity.
Extended Service Cycles, Reduces Costs: The high dirt-holding capacity significantly extends intervals between cartridge changes, reducing consumable costs and maintenance labor expenses.
System Redundancy, Ensures Operational Reliability: Even if one or several cartridges become clogged or damaged, the remaining cartridges continue to operate, providing a buffer for scheduled maintenance and effectively preventing unplanned downtime.
Top-Service Design: Features a large, removable top head or bolted cover for easy access to all cartridges simultaneously, simplifying maintenance.
Integrated Accessories: Often includes accessories like pressure gauges (inlet/outlet), vent valves, and drain valves for operational control and safety.
Scalability: Available in various sizes and cartridge counts (e.g., 3, 7, 12, 21-cartridge models) to match specific flow rate requirements.
Product application
Chemicals
Electronics
Food and Beverage
Industrial
Oil and Gas
Power and Utilities
Water
