Static screen wastewater description

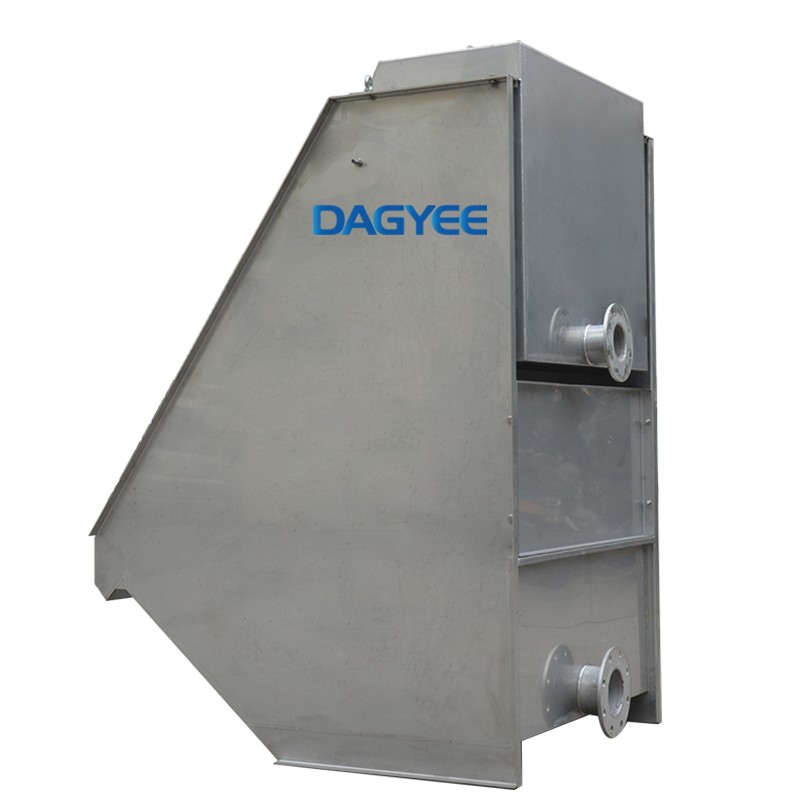

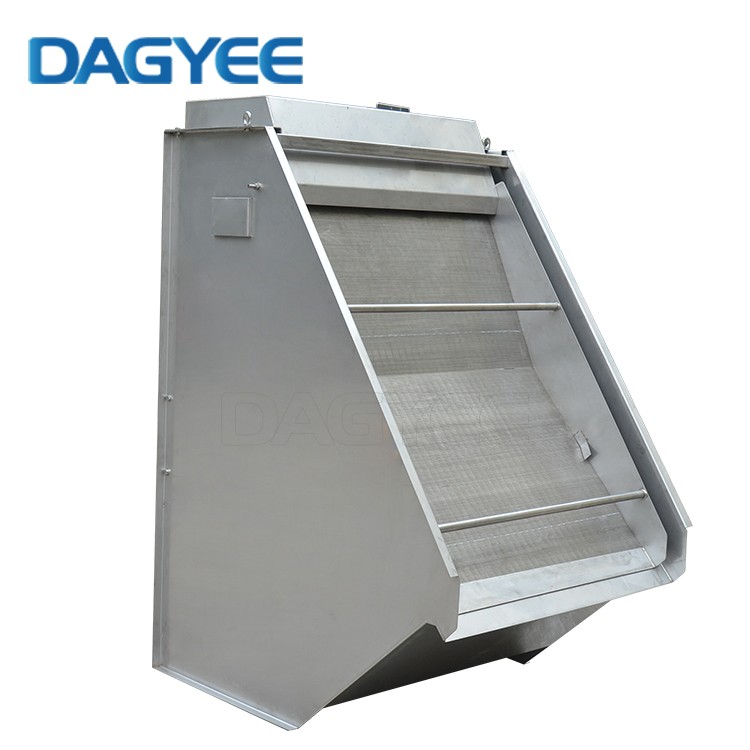

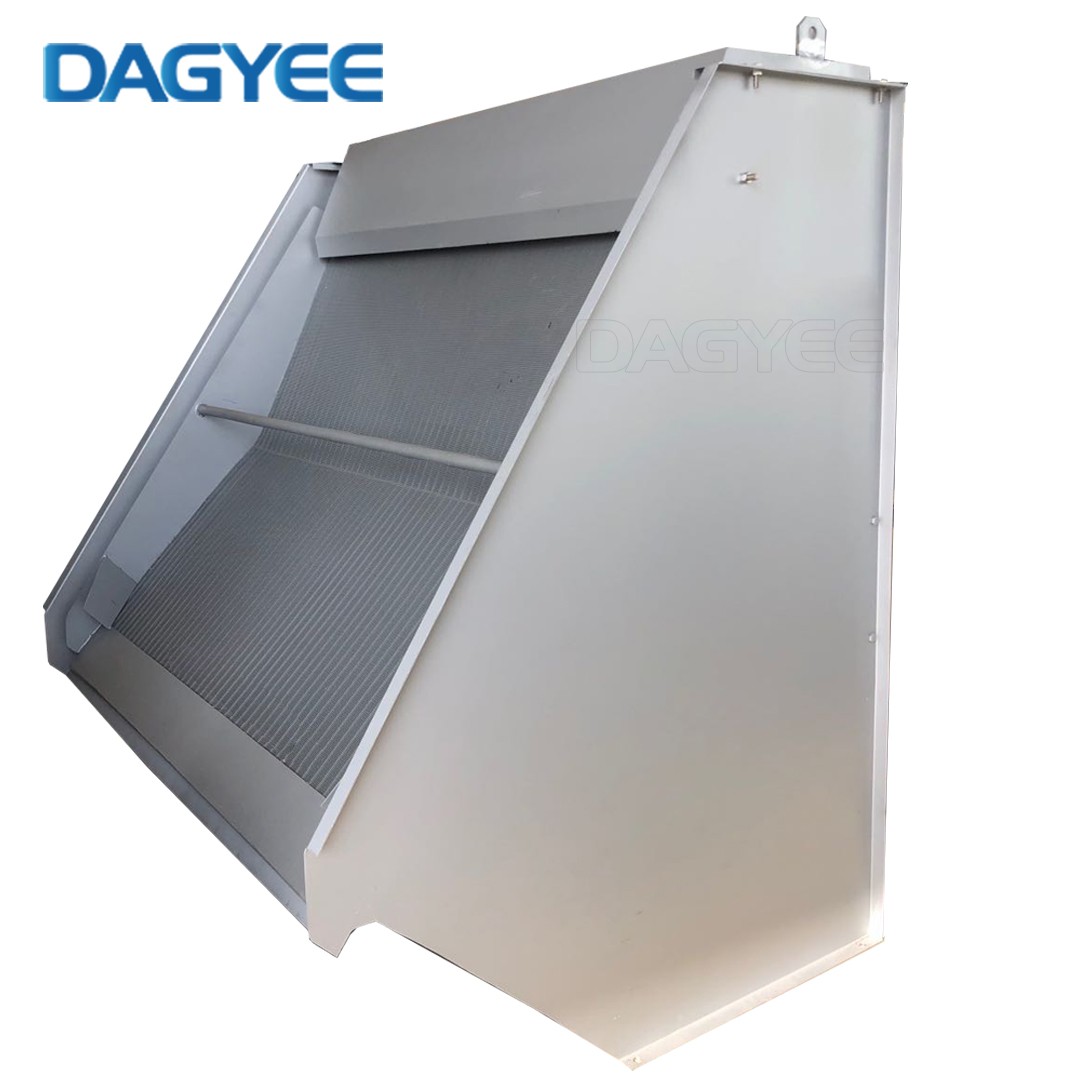

The main body of the static screen is made up of wedge-type stainless steel or screen face.
The sewage will be distributed on the screen face via overflow weir.
Because of the smooth screen face with small gap, the static screen can drain out water easily without blocking.
Under the effect of Hydraulic , the solid matters will be pushed into the hopper (optional parts) for solid-liquid separation.
Static screen wastewater works
The operation of the Static Screen is based on the Coanda effect meaning that the liquid to be screened forms a hydraulic attachment to the wedge wire (bars) of the screen.
The water goes through the slots while the separated solids stay on the front face of the screen plate.
The screen plate has a design with three distinct angles to increase the separation efficiency.
Static screen wastewater model
| HS Model |
Piping Connections Inlet(a) | Effluent(b) |
Physical Dimensions(m) L | W | H |
Weight (Kg) |
Capacities(m³/h) 0.5mm | 1mm | 1.5mm |
|---|---|---|---|---|
| HS-300 | 80 | 80 | 1.43 | 0.43 | 2 | 150 | 6 | 13 | 16 |
| HS-500 | 100 | 100 | 1.43 | 0.63 | 2 | 180 | 10 | 22 | 35 |
| HS-700 | 100 | 100 | 1.43 | 0.83 | 2 | 200 | 15 | 30 | 50 |
| HS-800 | 100 | 125 | 1.43 | 0.93 | 2 | 250 | 16 | 35 | 55 |
| HS-1000 | 150 | 150 | 1.43 | 1.13 | 2 | 280 | 20 | 45 | 70 |
| HS-1500 | 150 | 150 | 1.43 | 1.63 | 2 | 300 | 30 | 65 | 100 |
| HS-2000 | 200 | 200 | 1.43 | 2.13 | 2 | 400 | 40 | 75 | 120 |
Static screen wastewater advantage
Get economical, effective CSO screening
The Hydro-Static Screen provides effective gross solids and floatables capture and works with small flows and small budgets.
Mesh screen panels are coated in a non-stick polymer and corrugated to increase flow-through capacity.
Reduce maintenance requirements
The Hydro-Static Screen has no moving parts and requires no power to operate. Patented flow-modifying components provide partial cleansing of the screen, and a polymer
coated mesh reduces the risk of blinding.
Installs quickly and easily
Components can be pre-installed in a precast concrete chamber to enable swift installation on site.
Static screen wastewater feature
1. Material : AISI304 / 316 Stainless Steel.
2. Screen Range : 0.5 mm – 3 mm.
3. Cleaning : Manuel / Automatic (Optional).
4. Waste Hopper: Optional.
Static screen wastewater application
Vegetable, fruit and potato processing industry
Sugar industry
Meat and poultry processing / abattoirs / rendering industry
Fish and shellfish processing industry
Brewing, malting and beverage industry / distilleries
Starch and gluten processing industry
Food ingredients and hydrocolloids industry
Pharmaceutical industry
Horticulture industry
Zoos
Textile industry / laundries
Paper and pulp industry
Chemical and petrochemical industry
Mining and minerals industry
Exhaust gas cleaning
Tanneries
Waste recycling industry
Bioenergy industry
Sewage water treatment
Drinking water plants
