Energy Saving Internally Rotary Drum Screen for Environmental Protection Engineering

Energy Saving Internally Rotary Drum Screen for Environmental Protection Engineering

Category： Internally Drum Screen
Duty Rating: Heavy-Duty / Abrasion Resistant
Target Industry: Mining, Mineral Processing, Sludge Thickening
Frame Construction: Reinforced Carbon Steel with Abrasion-Resistant Lining
Warranty: 1 Year on Mechanical Parts
INQUIRY EMAIL

Internally rotary drum screen description

The Internally Fed Rotary Drum Screen utilizes a direct drive system to eliminate the use of belts, chains or sprockets.

A combination of stainless-steel shoes and UHMW polyethylene wear strips replace the use of trunnion wheels reducing labor intensive maintenance.

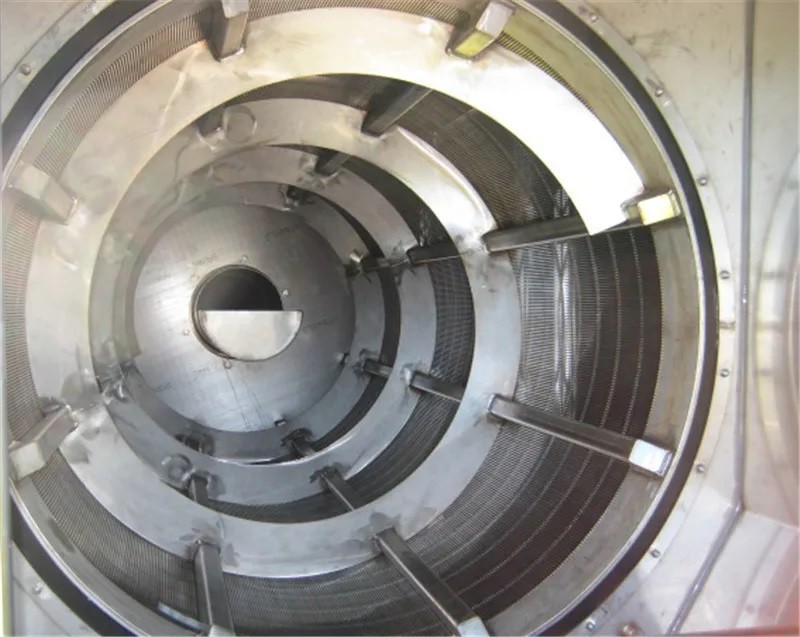

The screening panels remove easily for regular cleaning and to allow access inside the drum without disassembling the machine.

Screening panels are available in wedge wire, perforated plate and wire mesh in various opening sizes to optimize debris removal.

Internally rotary drum screen function

The internal inlet rotary screen operates with minimal foot traffic.

Influent enters through the inlet and flows into the flow-through slurry tank.

The flow slurry tank fills and the influent forms a waterfall over the weir and touches the sides of the rotating cylindrical screen.

As the inflow hits the rotating screen, the solids are trapped in the cylinder and the liquid passes through the screen into the process or continues for further treatment.

A diverter on the cylinder moves the solids along the length of the screen for discharge.

The unit is equipped with a spray bar for cleaning the screen.

The screen is equipped with a bypass nozzle to prevent filter overflow.

Internally rotary drum screen model

DIRD Model	Drum size	Physical Dimensions(mm)			Power	Weight (Kg)	Capacities(m³/h)			Sludge height
DIRD Model	Drum size	L	W	H	Power	Weight (Kg)	1mm	2mm	3mm	Sludge height
IRD6-900	Ø600×900	1900	1350	1700	0.55	630	15	25	30	500
IRD6-1200	Ø600×1200	2200	1350	1700	0.55	820	30	50	60	500
IRD6-1500	Ø600×1500	2500	1350	1700	0.75	1000	45	70	85	500
IRD6-1800	Ø600×1800	2800	1350	1700	0.75	1160	60	100	120	500
IRD6-2100	Ø600×2100	3100	1350	1700	1.1	1300	80	135	170	500
IRD9-1200	Ø900×1200	2300	1600	2200	1.1	1200	40	70	85	600
IRD9-1800	Ø900×1800	2900	1600	2200	1.1	1470	80	135	170	600
IRD9-2500	Ø900×2500	3600	1600	2200	1.5	1800	120	200	250	600
IRD9-3000	Ø900×3000	4100	1600	2200	1.5	2100	160	270	350	600

Internally rotary drum screen advantage

Exceptional Filtration Efficiency

They remove even small solids, protecting downstream systems and improving effluent quality.

Low Maintenance Requirements

Our rugged construction and simplified cleaning mechanisms reduce downtime and labor costs.

Multi-Industry Compatibility

You can use them in municipal, food, paper, textile, or agricultural processes.

Space-Saving Design

Their compact form allows easy integration, even in retrofitted facilities.

Smart Automation

Advanced control panels enable hands-free operation and quick monitoring.

Internally rotary drum screen feature

Long product life

The unique design eliminates the need for trunnion wheels, sprockets and chains, which reduces the wear and tear points and increases the product’s lifespan.

Trouble-free maintenance

All routine maintenance is done at chest level. Removal of the drum is not required to perform maintenance and manual clean in place (CIP).

Designed for duty

Engineered to perform in fine screening applications that have high flows and high solids loading.

Flexible design

Quick change-out screening panels available in various opening sizes, allows for improved debris management.

Low cost of ownership

With few wear parts, a fractional horsepower motor and minimal maintenance required, Duperon equipment is easy to install, own, and operate.

Customizable

The water inlet can be designed on either side of the drum screen, providing options for difficult installation scenarios.
