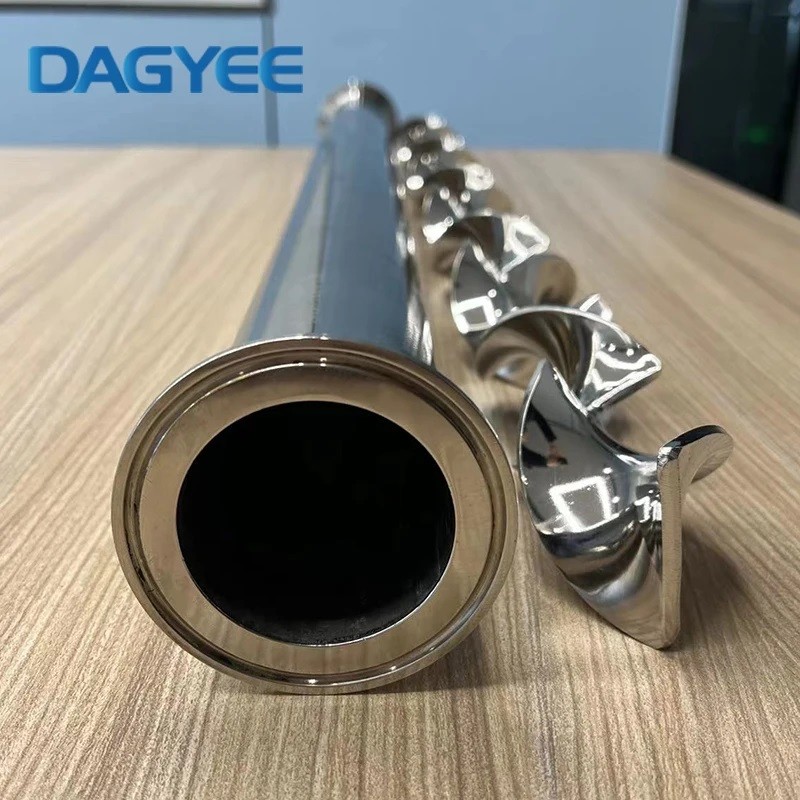

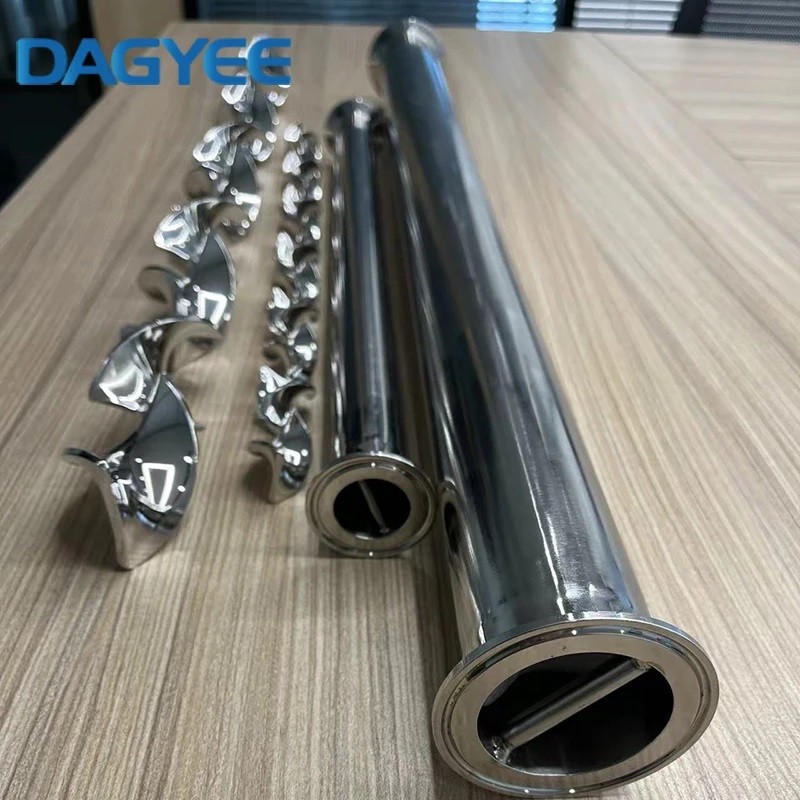

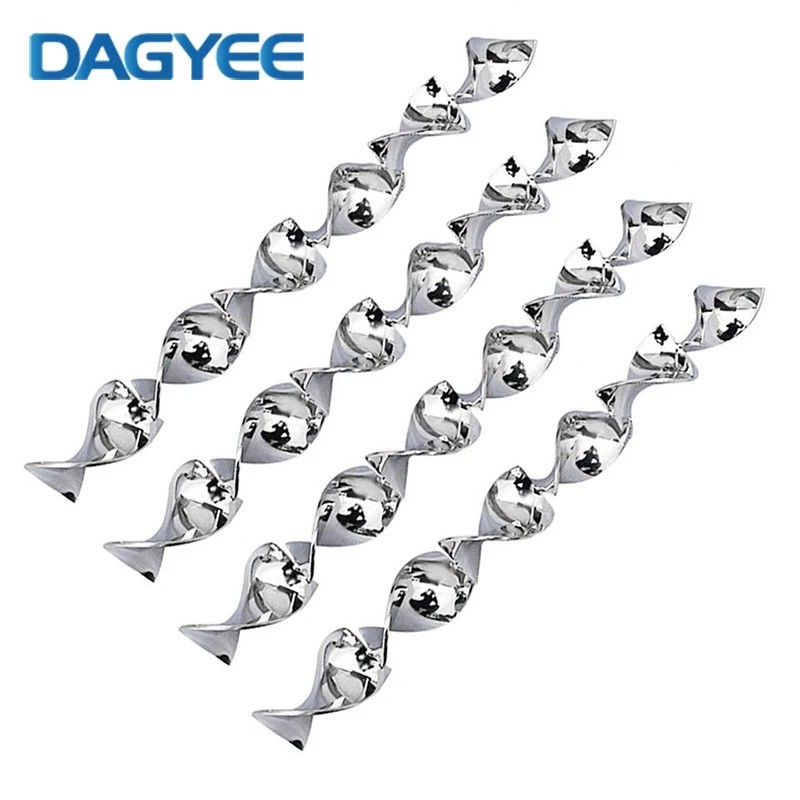

Static Mixers are highly-engineered motionless mixing devices that allow for the continuous blending of fluids within a pipeline. With no moving parts, static mixers utilize the energy of the flow stream to generate consistent, cost-effective, and reliable mixing. DAGYEE static mixers are available in-stock for direct purchase or custom designed to meet your specific mixer requirements. Meeting a range of flow rates for a variety of applications, DAGYEE static inline mixers are the reliable, durable, and efficient solution to your motionless, continuous mixing needs.
Static mixers serve to put liquid in motion in order to achieve homogeneity of composition and avoid the sedimentation process. They are driven by auxiliary equipment, such as a shaft, speed reducer or electric motor, to sluice the product over the static mixer elements, to provide mixing action. Static mixers function by forcing sediment to flow in one direction and overcome the resistance during a liquid circulation flow in open reservoirs, ditches and canals.
Static mixer technical
| Model | Dg(mm) | dh(mm) | Q(m³/h) |
|---|---|---|---|
| SK-5/10 | 10 | 5 | 0.15-0.3 |
| SK-7.5/15 | 15 | 7.5 | 0.3-0.6 |
| SK-10/20 | 20 | 10 | 0.6-1.2 |
| SK-12.5/25 | 25 | 12.5 | 0.9-1.8 |
| SK-16/32 | 32 | 16 | 1.4-3.2 |
| SK-20/40 | 40 | 20 | 2.2-4.5 |
| SK-25/50 | 50 | 25 | 3.5-7.0 |
| SK-32.5/65 | 65 | 32.5 | 5.9-12 |
| SK-40/80 | 80 | 40 | 9-18 |
| SK-50/100 | 100 | 100 | 14-28 |
| SK-62.5/125 | 125 | 125 | 22-44 |
| SK-75/150 | 150 | 150 | 31-64 |
| SK-100/200 | 200 | 200 | 56-110 |
| SK-125/250 | 250 | 250 | 88-177 |
| SK-150/300 | 300 | 300 | 127-255 |
| SK-175/350 | 350 | 350 | 173-346 |
| SK-200/400 | 400 | 400 | 226-452 |
| SK-250/500 | 500 | 500 | 353-706 |
The energy required for mixing is efficiently extracted as pressure drop from the fluid flow through the elements. Mixers are invariably installed in existing systems without reducing the capacity of existing pumps.
The installation is very easy; no special skills are required other than normal engineering skills.
Mixers have no moving parts and are virtually maintenance free.
Static Mixers are available in all standard pipe sizes and, in the case of open channel designs, are available in any size with no upper limit.
Each Static Mixer is carefully designed to meet the specific requirements of each application.
Our customization capabilities at DAGYEE give our customers a multitude of options for their existing systems. We can design and build custom static mixers for our clients that meet each unique system's demands and requirements to ensure a seamless fit and a top-tier end product is achieved. Customers may customize their industrial static mixer length up to 72", pick of construction material, choice of open or closed channel, element customizations, addition of injection ports, and choice of end connections, including flanged, threaded, plain, and DIN ends.
Static mixer application
Typical applications seen in the water/wastewater industries are mixing of polymer, sodium permanganate, potassium permanganate, sodium hypochlorite, aqueous chemicals, alum, coagulant, chlorine, acid, aluminum sulphate, CO2 gas, NaOH, NaOCI, HCL, antiscalant, flocculant, oily sludge, polyelectrolyte.
