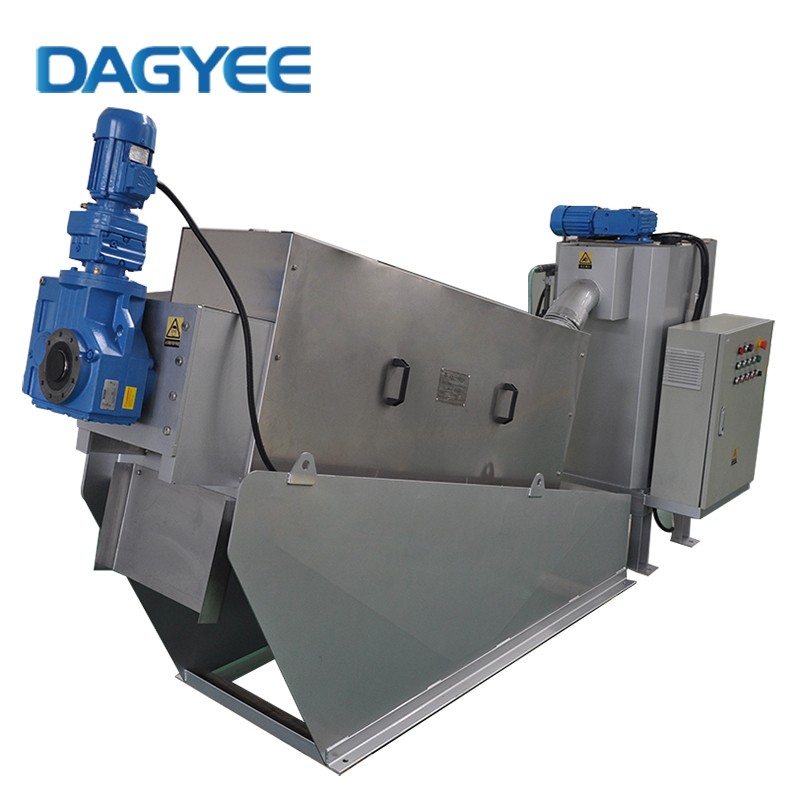

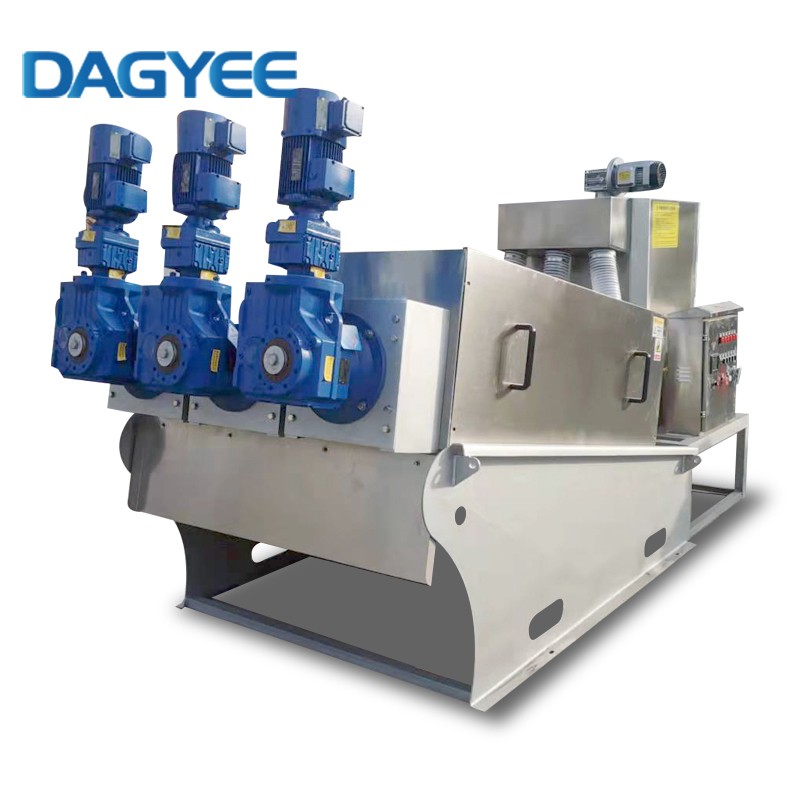

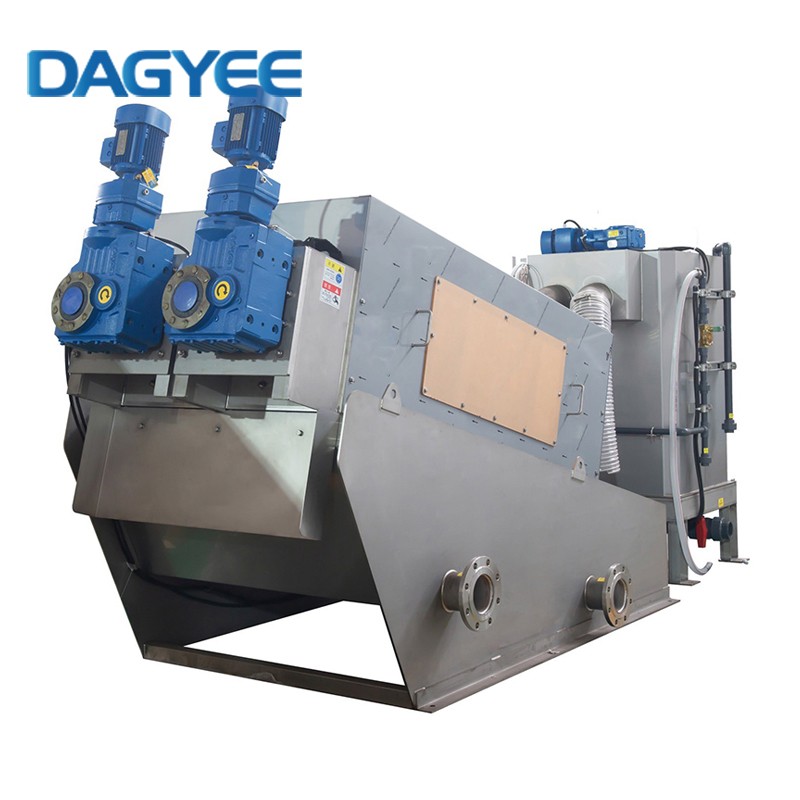

Energy-Efficient Stainless Steel Screw Type Sludge Dewatering Press

Energy-Efficient Stainless Steel Screw Type Sludge Dewatering Press

Product Item : DL-301
Category： Sludge Dehydrator
Material: SS304/SS316L
Productivity: 30-50KG/H
Machinery Test Report: Provided
Certification: CE /ISO9001
INQUIRY EMAIL

Sludge dehydrator descriptions

A screw press (SP) provides sludge dewatering by conveying the sludge along the inside of a permeable cylinder. It is based on a slowly-rotating (~5 RPM) Archimedean screw within a cylindrical screen (otherwise termed drum filter/screen or basket). It is normally inclined by ~20° to the horizontal to assist with the draining of water into the sump. The screen generally has an aperture rating below 0.5 mm and is based on wedge-wire or occasionally perforated metal.

Sludge dehydrator process

Mechanical Preliminary Treatment

DAGYEE Solutions for mechanical wastewater pre.treatment: Contaminants and solids contained inwastewater are removed by screens and fine

screening systems as well as through sedimentationand separation processes.

Advanced Wastewater Treatment

The aim of advanced wastewater treatment is thereduction of one or more of the following pollu-tants: solids,COD, BOD, phosphorus, nitrate, mi-cropollutants and germs.

Elimination of Trace substances

DAGYEE offers solutions for the elimination of trasubstances and micropollutants from wastewatelwith qranulated activated carbon(GAC) and povdered activated carbon(PAC).

Sludge Treatment

DAGYEE offers highly efficient and comprehensivesolutions for sludge treatment, from mechanicalpre-treatment with screens to drying andincineration.

Screening in Pumping stations

Reliable screening and solids removal for pumpsand lifting units at combined and separate sewersystems. HUBER pumping station screens maintainthe operating stability of the pumps and protectthem against interfering substances.

Sludge dehydrator model

Model	DS capacity(g/h)		Sludge capacity (m³/h)		Sludge treatment capacity						Spiral diameter	Discharge Distance	Size(mm)			Net.Kg	Run Kg	Power	Washing Q
Model	Min	Max	2g/L	5g/L	2g/L	5g/L	10g/L	20g/L	25g/L	50g/L	Spiral diameter	Discharge Distance	L	W	H	Net.Kg	Run Kg	Power	Washing Q
DL101	3	5	1.5	0.6	1.5	0.6	0.5	0.25	0.2	0.1	Φ100×1	215	1816	756	1040	200	290	0.2	24
DL131	6	10	3	1.2	3	1.2	1	0.8	0.4	0.2	Φ130×1	260	1969	756	1040	220	315	0.36	24
DL132	12	20	6	2.4	6	2.4	2	1	0.8	0.4	Φ130×2	250	2069	910	1040	275	450	0.62	48
DL202	18	30	9	3.6	9	3.6	3	1.5	1.2	0.6	Φ200×2	350	2500	935	1270	470	730	1.11	64
DL301	30	50	15	6	15	6	5	2.5	2	1	Φ310×1	495	3255	905	1600	850	1320	0.74	40
DL302	60	100	30	12	30	12	10	5	4	2	Φ310×2	495	3455	1285	1600	1500	2230	1.11	80
DL303	90	150	45	18	45	18	15	7.5	6	3	Φ310×2	495	3055	1690	1600	1520	3080	1.86	120
DL352	120	200	60	24	60	24	20	10	8	4	Φ350×2	580	4240	1550	2190	1950	3400	3.75	144
DL353	180	300	60	36	60	36	30	15	12	6	Φ350×3	580	4460	2100	2160	2600	4850	6	216
DL402	120	200	60	24	60	24	20	10	8	4	Φ410×2	585	4140	1550	2250	2450	3400	3.75	144
DL403	180	300	60	36	60	36	30	15	12	6	Φ410×3	585	4420	2100	2250	3350	4850	6	216

Sludge dehydrator advantages

Patented Power Tubes for enhanced efficiency and reduced power consumption.

SuperPond Design for optimal space utilization and improved separation performance.

Durable Wear-Resistant Materials used in critical components for extended lifespan and reliability.

Fully Open Feed Zone for superior separation and smooth operation.

360° Solids Discharge to prevent blockages and ensure continuous performance.

Baffle Disc Technology for higher capacity and drier cake solids.

Flexible Cone Configuration (Steep or Shallow) for effective separation of all types of slurry.

Customizable Conveyor Designs tailored for different slurry types.

Advanced Wear Protection Options for conveyor flights, catering to various processing requirements.

Complete, fully enclosed Cleaning-in-Place (CIP) system for easy maintenance.

Sludge dehydrator key features

This series of screw press machines are suitable for the pressing and dewatering of solid materials like sludge and other solids, such as some waste food materials and other industrial wastes.

The main body of the sludge dewatering machine can be divided into two parts: in the first part where gravity concentration occurs, the screw will rotate downward and push out a mixture of water and solid materials that are below it.

In the second part where there is no gravity concentration, but with pressure generated by the rotating screw, pressure is applied to keep the solid materials pressed between rings so that they can get dehydrated by moisture vaporization during operation.
