Compact Polymer Mixing & Dosing System

Category： PAM Polymer Preparation unit
Capacity:300-10000L
Material: SS304,SS316,PP,FRP,Carbon
Motor: SEW/Nord
Application: Industrial wastewater, food processing, oil removal
INQUIRY EMAIL

polymer preparation unit description

For effective coagulation and flocculation in water-treatment applications requiring solid separation, DAGYEE polymer preparation units provide cost-effective automatic or manual batching of liquid and powdered polymers.

Polyelectrolyte and/or powdered type chemicals are prepared and mixed with water to be dosed to the system. These units are operated automatically, hence guarantees the continuous dosage. These equipments could be manufactured from epoxy coated, galvanized steel or stainless steel.

From single-chamber Polymer Preparation Systems to three-chamber polymer preparation systems, our solutions include compact, space-saving designs that facilitate the treatment of wastewater and more.

Polymer preparation unit principle

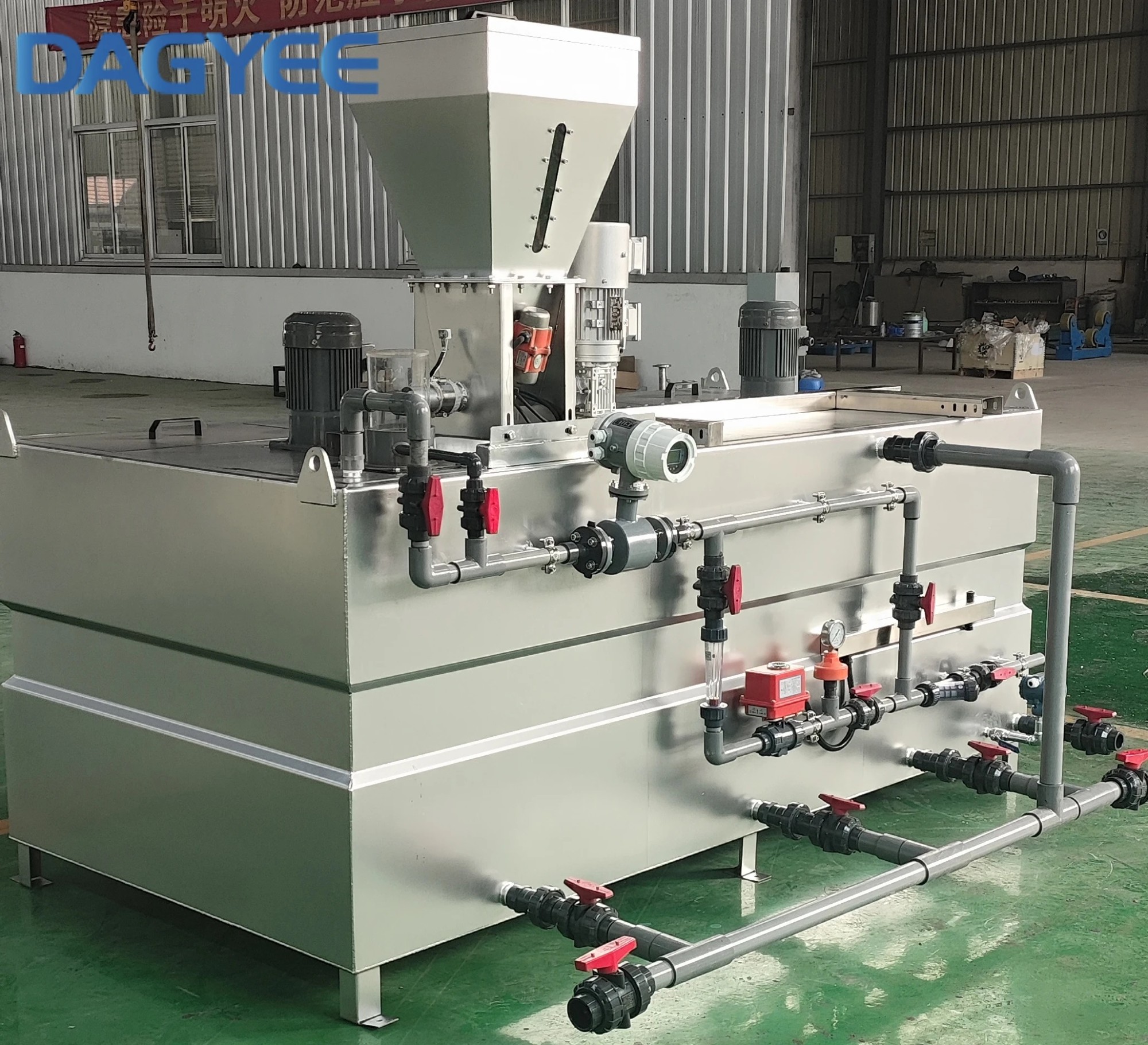

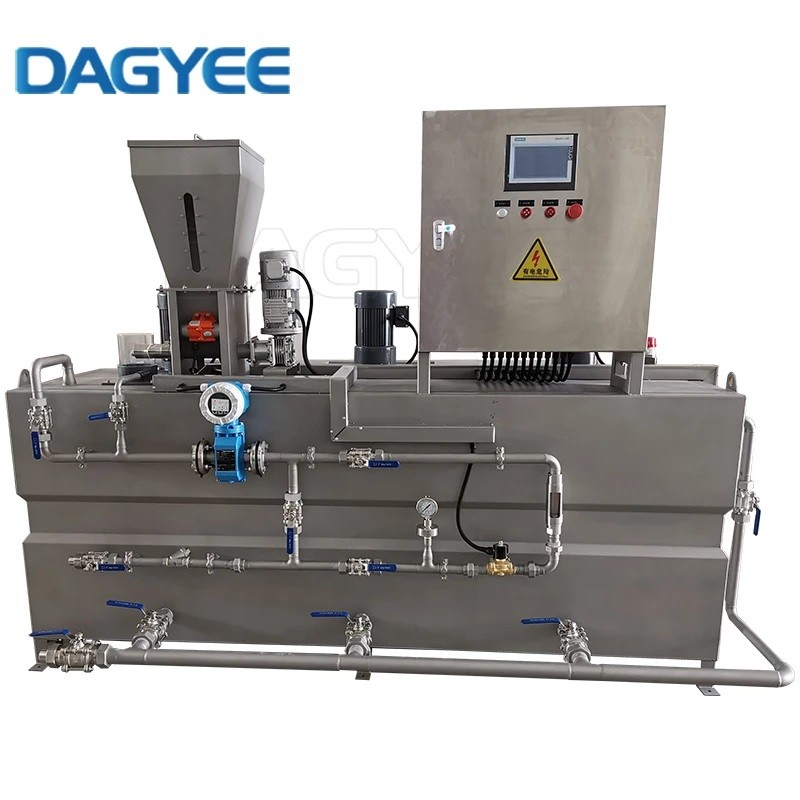

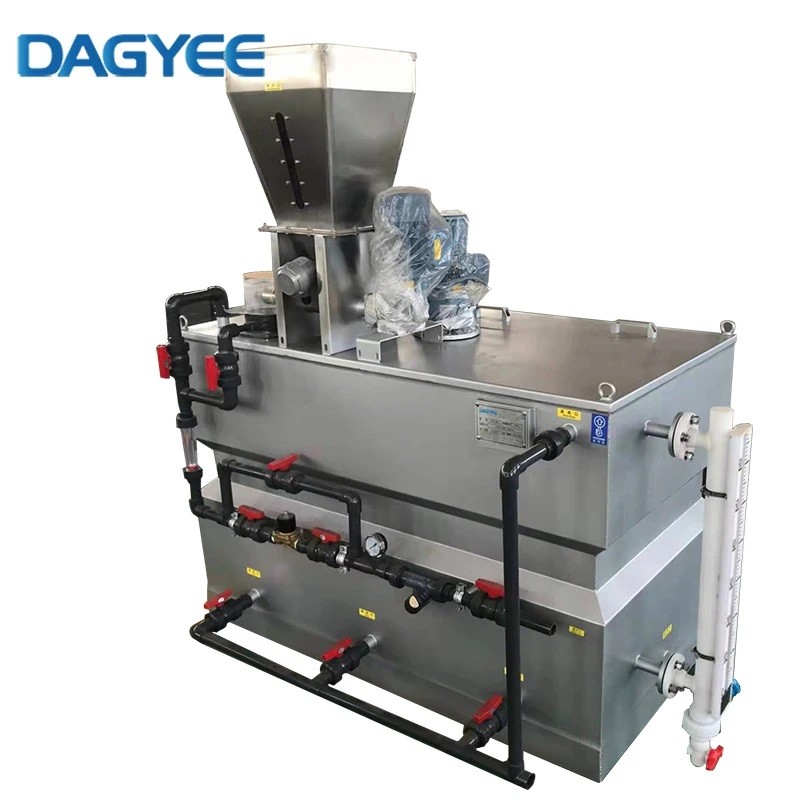

The integrated polymer preparation unit is mainly composed of solution tank, mixer, filter, metering pump, connecting pipe valve, bracket and other components.

The solution tank is made of high-quality stainless steel plates rolled and welded, and the upper part spans the working bridge to install the mixer.

The mixer uses a vertical motor reducer to directly drive the mixing shaft and paddle, with high power transmission efficiency.

There is a filter screen at the dosing point on the inner wall of the tank, which is easy to disassemble and clean, and a Y-shaped dosing device is installed in the pipeline to prevent obstruction of the metering pump.

Polymer preparation unit model

Model	Capacity L/H	Volume L	Timing H	Dimensions MM	Weight KG	Power KW
DT300	300	450	0.6-1	15001000500	300	1.8
DT500	500	750	0.6-1	15001000650	420	1.8
DT1000	1000	1500	0.6-1	20001000900	500	2.8
DT1500	1500	2250	0.6-1	20001200900	620	3
DT2000	2000	3000	0.6-1	250012001000	800	3.9
DT3000	3000	4500	0.6-1	300015001000	950	5.3
DT5000	5000	7500	0.6-1	500015001000	1250	7
DT10000	10000	15000	0.6-1	480018002000	3600	7

Polymer preparation unit advantage

1. Easy installation, high degree of automation and simple operation;

2. Stable performance, long service life, easy maintenance, low operation and total investment;

3. The dosage of pharmaceuticals can be accurately adjusted to avoid unnecessary waste of pharmaceuticals;

4. The dosing barrel has strong resistance to chemical corrosion and good acid and alkali resistance;

5. Beautiful appearance, small footprint and compact structure.

Polymer preparation unit feature

Each chamber is fitted with a tightly-secured inspection cover and emptying valve

User-guided input of solvent concentration

Minimal product carry over

Programmable logic controller (PLC)

Control cabinet for automatic control of the entire system

Optional automatic control panel version with proportional polymer dosage

Version with terminal box available on request

Polymer preparation unit application

The Polymer Preparation Unit (PPU) by Enviroflex is a fully automatic system designed for the continuous preparation and dosing of polymer (flocculant) solution used in a wide range of applications, including:

Municipal and industrial wastewater treatment

Mining and mineral processing (tailings, thickening)

Oil & gas operations (drilling fluid conditioning, produced water treatment)

Chemical and food processing industries

Contact us for customized polymer preparation unit solutions

If you are interested in learning more about our polymer preparation unit or need a customized solution for your water treatment project, please contact our sales team. Our experts will work with you to assess your requirements and recommend the perfect equipment to meet your goals.
