Fully Automatic Polymer Dosing Equipment

polymer preparation unit description

DAGYEE is a customized fully automatic machine for batch preparation. Its unique design allows for the dosing of powdered and/or liquid emulsion polymer.

DAGYEE is, in the basic version, equipped with a three-step mixing system to efficiently mix the polymer into a homogeneous and fully activated polymer solution. Different types of mixing systems for different types of applications can be offered. DAGYEE stepwise mixing systems enable an efficient polymer solution to be obtained. This results in a very low polymer consumption.

Polymer preparation unit principle

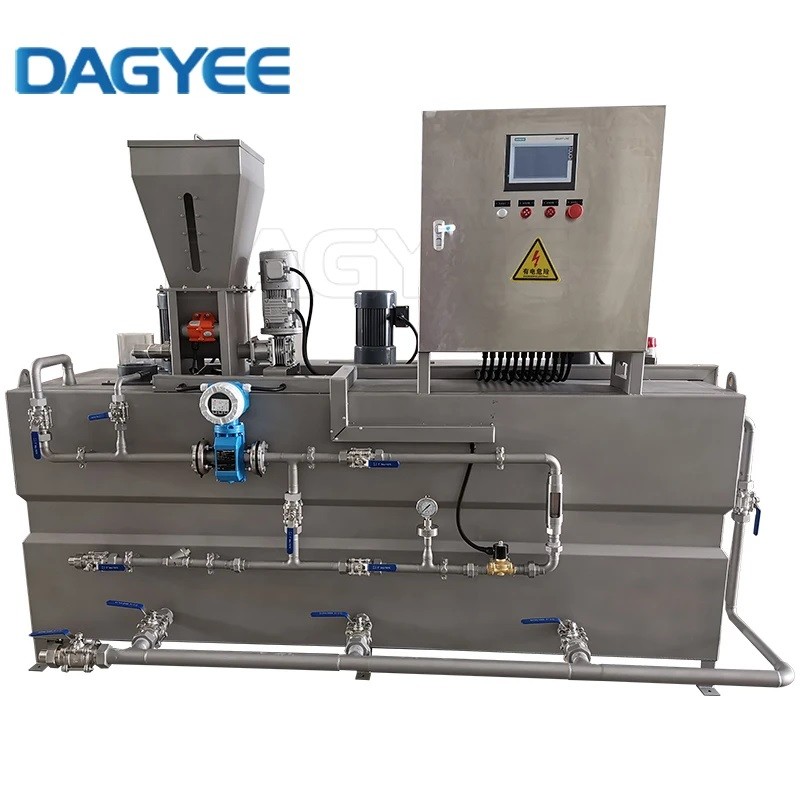

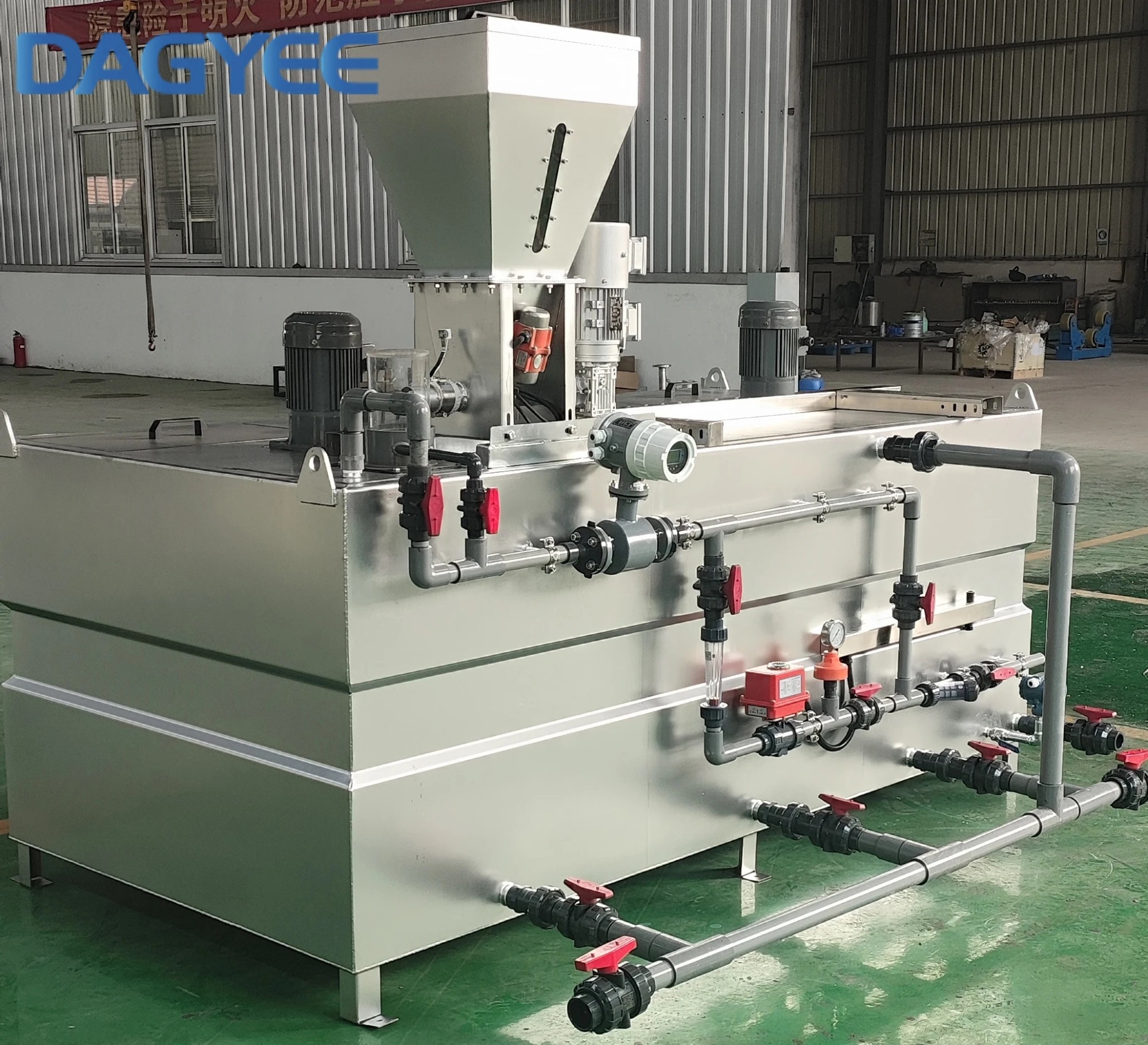

Polymer Dosing System is a compact unit that automatically feeds the process, as needed, using a regulated ultrasonic level switch. Unit has treee comparments. The first one is preparation compart- ment, the second one is ageing department and the last one is storage compartment. These three parts are seperated from easch orher by welded plates. Polymer Storage and feeding hooper is a steel small tank in which polyelectrolyte is stored. Polyelectrolyte in this hoop- er doses by the mounted feeding screw bottom of the hooper. There are two mixers in the unit. In the first compartment, there is a rapid mixer used for polyelectrolyte prepration and in the second compartment, slow mixer for ageing. Units can be manufactured in different capacities depending on the requirements. Polyelectrolyte Preparation Units is made up of the following componentsPolyelectrolyte Preparation Units

Tank

Tank Equipment

Powder Dosing System

Mixer

Control Unit

Polymer preparation unit model

Polymer preparation unit advantage

High efficiency mixers: Provide a low flow mixing for a homogeneous flocculant polymerisation without mechanical deterioration.

Optimised process: Visual access to the process and alarms, fieldbus distributed control (optional) provides informative and easy to access equipment and status application updates, controlled costs. Intelligent system that feeds the process when needed, regulated by an ultrasonic level switch.

Option dual: Two-in-one solution, to prepare powder or Liquid Polymers. Ideal solution for wastewater plants located in areas subject to population changes, such as tourist areas, or locations subject to rainy season that have to adapt their process according to the population equivalent or the season.

Polymer preparation unit feature

1. Fully automatic operation including automatic dosing, dissolving and feeding

2. The highly precise dry polymer dosing device and the well-designed heater device can prevent the polymer from caking

3. The dosage of dry powder and water can be adjustable, so the solution with any concentration can be prepared

4. Optional: Vacuum feeding machine

5. Optional: on-line dilution system

6. Tank material: SS304 or SS316l, Polypropylene PP, FRP etc

Polymer preparation unit application

Sludge treatment conditioning and dehydration

Wastewater treatment plants

Municipal purification plants

Industrial purification plants

Agri-food industries

Beverage industries

Livestock farms

Meat processing

Fish processing

Paper industries

Textile industries

Contact us for customized polymer preparation unit solutions

If you are interested in learning more about our polymer preparation unit or need a customized solution for your water treatment project, please contact our sales team. Our experts will work with you to assess your requirements and recommend the perfect equipment to meet your goals.
