Automated Combined Wastewater Pre-Treatment System with pH Control

Combined wastewater pretreatment unit description

Combined pretreatment system is an answer to the high civil works costs and large footprint required to execute complete pretreatment systems in concrete, screening channel, sedimentation tanks and hoppers FOG removal.  The DAGYEE system is a state-of-the-art combined pretreatment system designed to optimally perform all the effluent pretreatment function, screening, grit removal, FOG removal, in a single  stainless steel machine.

The DAGYEE range consists of for screening and grit removal and the  for screening, grit removal and FOG removal.
Generally supplied with the CFC Screw Screen, but in special execution it is also possible to provide it with the auger rotating drum screen, the step screen, the sub-Vertical bar Screen, or the perforated plate and brush screen.

Combined wastewater pretreatment unit component

Dependable, complete and compact unit Performing the following process steps:

• fine screening
• Screenings dewatering
• Grit separation
• Grit dewatering
• Grease separation and removal (optional)

Combined wastewater pretreatment unit working principle

Combined unit for wastewater pretreatment Introduce sewage treatment plants. they perform Fine screening, grit removal and optional grease removal.Wastewater passes through spiral screen, solids Materials larger than the mesh size,The size is captured and removed from the system. they are compaction at the end of the screen conveyor before unloading.

The wastewater flows into the sedimentation tank. finer solid matter still present in wastewater Settled in a tank and conveyed to a hopper by a horizontal screw conveyor is placed at the bottom of the tank. OneInstallation of inclined screw conveyor for sand removal conveying the sand accumulated in the hopper,Drain into a container. filtered water leaves The system passes through an outlet tube placed on the upper level.Grease removal unit can be integrated into DAGYEE combination units are available upon request.

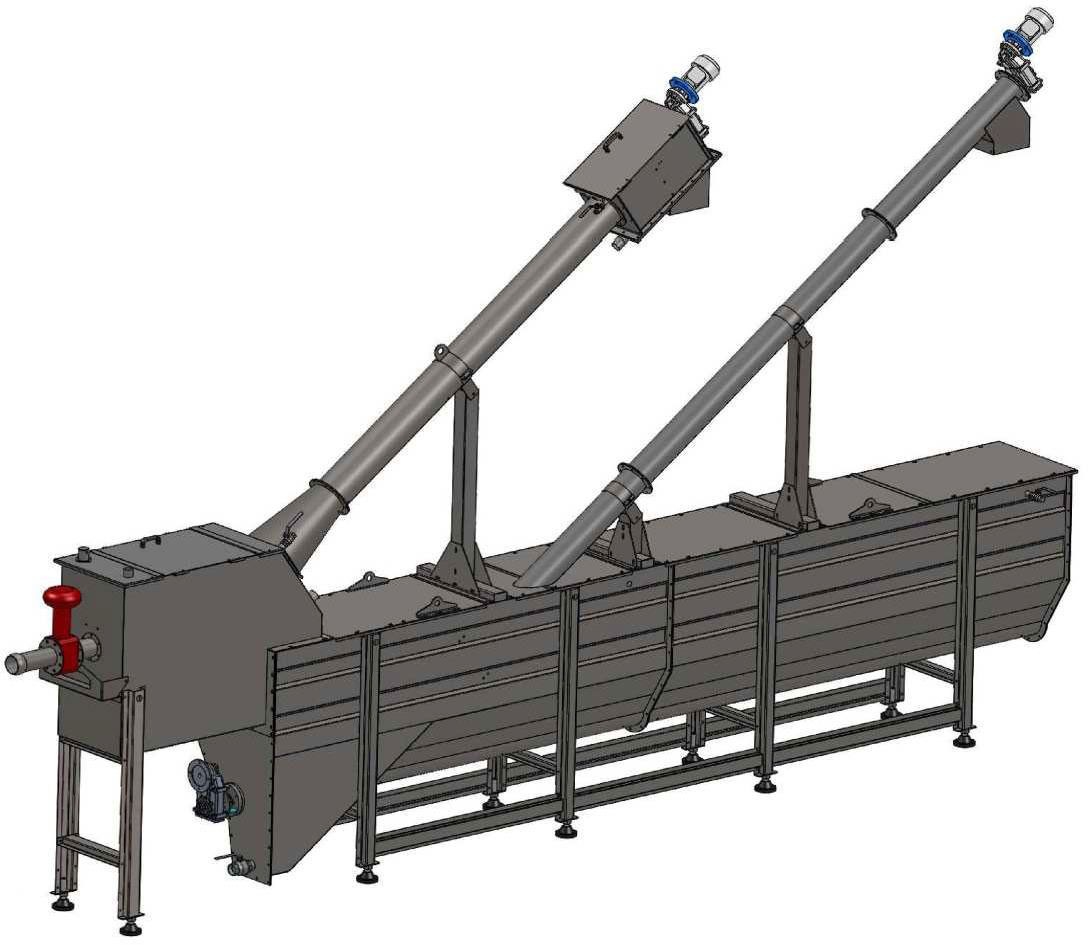

The wastewater firstly enters the tank where a screw screen is placed.

Big size solid materials are filtrated by the screw screen and a screw conveyor moves the solid materials captured up to the discharge point. At the end of the conveyor, they are pressed by the compaction unit before discharge.

The water which has still solid materials in smaller sizes flows through the sedimentation tank. The particles are settled by time and a horizontal screwconveyor transports them to the collection hopper.

Finally, they are conveyed by the grit removal screw conveyor to the discharge point.

Combined wastewater pretreatment unit Parameter

Combined wastewater pretreatment unit advantage

• No odor
• Low operating costs and maintenance
• Reduced space requested
• Building work is not necessary
• Ease of installation and management
• Low organic matter in the solid residue extracted
• Reduction up to 40% in volume of solids removed

Combined wastewater pretreatment unit feature

• Compact design
• No odour or clogging problems
• Low investment cost
• Low maintenance and operation costs
• No civil works required
• Easy to install and operate
• Volume reduction of the washed out solid
• Low residual organic content in the washed out solid

Combined wastewater pretreatment unit application

The compact preatreatment unit EnviroPrep are designed for urban and industrial raw effluents. Such simple and efficient solution fits perfectly with projects looking after minimizing the concrete and reducing the preatreatment operating costs of urban and industrial sewage treatment plants.
