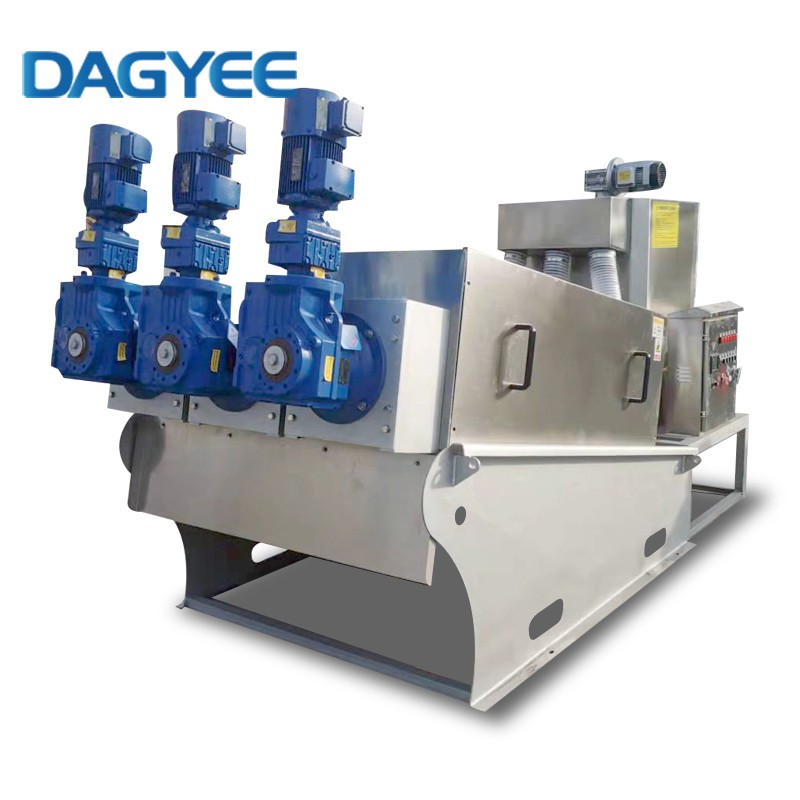

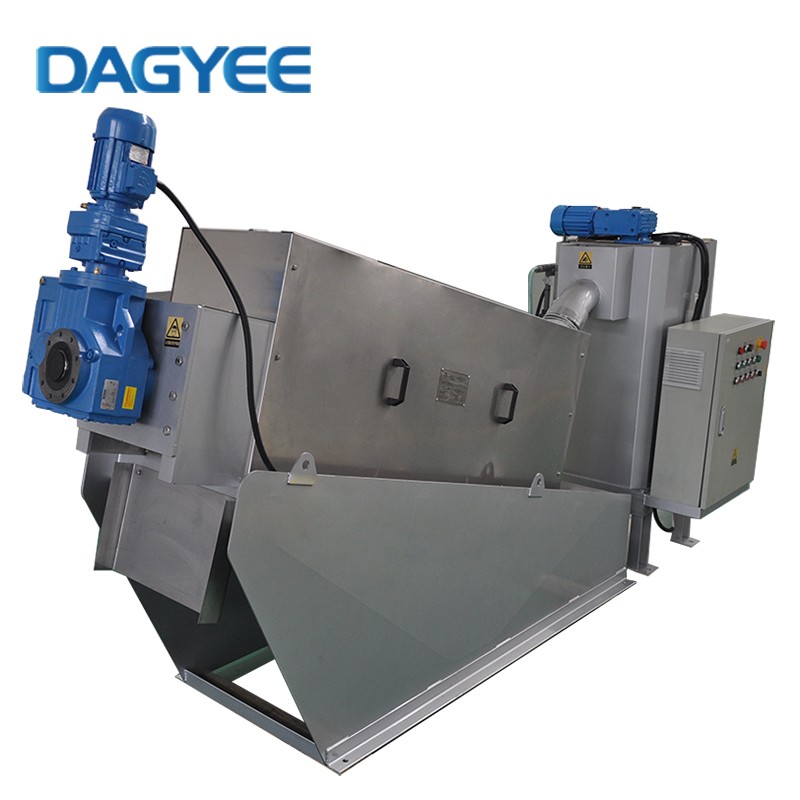

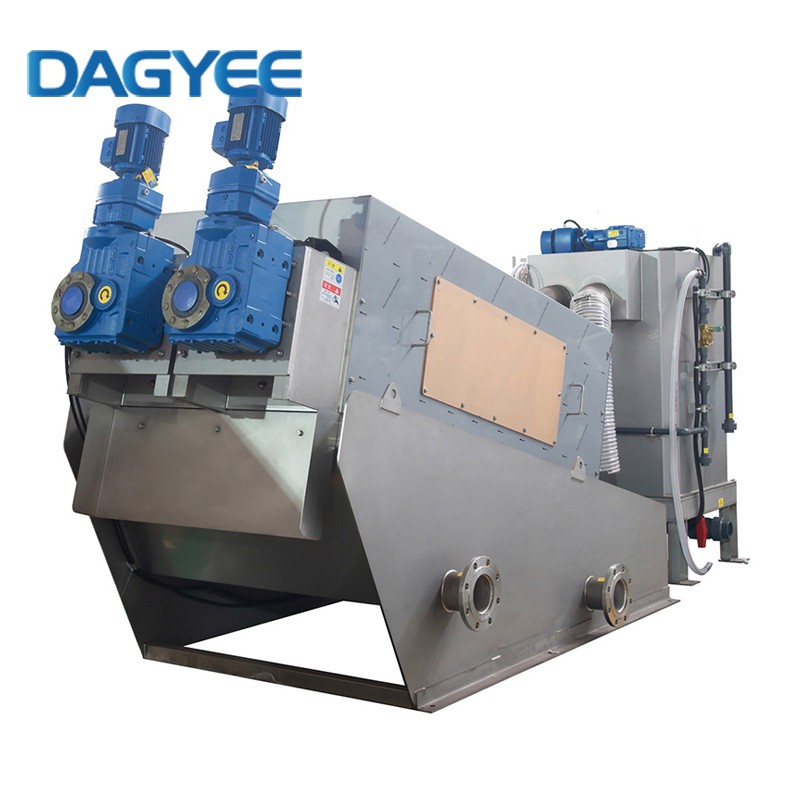

Massive 400m³/d Industrial Stainless Steel 304 Twin-Screw Sludge Dewatering Press

Massive 400m³/d Industrial Stainless Steel 304 Twin-Screw Sludge Dewatering Press

Product Item : DL-301
Category： Sludge Dehydrator
Material: SS304/SS316L
Productivity: 30-50KG/H
Machinery Test Report: Provided
Certification: CE /ISO9001
INQUIRY EMAIL

Sludge dehydrator descriptions

Sludge dewatering is the process of separation of components of solid and liquid sludge to minimize the sludge disposal.

Sludge dewatering equipment is not intended to treat the sludge or liquid but; it only separates the liquid components & solid components so it will get easier & cost-effective to handle the separate phases of the disposal. Once the Final sludge has been dewatered, then the liquid is treated in ETP/STP & solid sludge is disposed.

The main purpose of the Sludge dewatering machine is to minimize handling and disposal. Sludge dewateringpress is the most cost-effective method of dewatering and hence helps to sustain the environmental objectives of the company.

Sludge dehydrator process

In contrast to manure dewatering manure, sludge dewatering needs to add flocculant to the sludge before pumping it into the dewatering machine. Then the sludge is transported by the rotating screw along a cylindrical screen at a slow rotating speed (1-4 RPM). As the sludge moves through the press, the pressure and compression is gradually increase, effectively extracting water from the sludge. The water flows out through the screen and is collected, while the solid sludge particles are retained. The solids continue to move along the screw, gradually compacting into drier sludge cake, which is discharged at the end of the screw press. The water content of the dewatered sludge cake is about 75%.

Sludge dehydrator model

Model	DS capacity(g/h)		Sludge capacity (m³/h)		Sludge treatment capacity						Spiral diameter	Discharge Distance	Size(mm)			Net.Kg	Run Kg	Power	Washing Q
Model	Min	Max	2g/L	5g/L	2g/L	5g/L	10g/L	20g/L	25g/L	50g/L	Spiral diameter	Discharge Distance	L	W	H	Net.Kg	Run Kg	Power	Washing Q
DL101	3	5	1.5	0.6	1.5	0.6	0.5	0.25	0.2	0.1	Φ100×1	215	1816	756	1040	200	290	0.2	24
DL131	6	10	3	1.2	3	1.2	1	0.8	0.4	0.2	Φ130×1	260	1969	756	1040	220	315	0.36	24
DL132	12	20	6	2.4	6	2.4	2	1	0.8	0.4	Φ130×2	250	2069	910	1040	275	450	0.62	48
DL202	18	30	9	3.6	9	3.6	3	1.5	1.2	0.6	Φ200×2	350	2500	935	1270	470	730	1.11	64
DL301	30	50	15	6	15	6	5	2.5	2	1	Φ310×1	495	3255	905	1600	850	1320	0.74	40
DL302	60	100	30	12	30	12	10	5	4	2	Φ310×2	495	3455	1285	1600	1500	2230	1.11	80
DL303	90	150	45	18	45	18	15	7.5	6	3	Φ310×2	495	3055	1690	1600	1520	3080	1.86	120
DL352	120	200	60	24	60	24	20	10	8	4	Φ350×2	580	4240	1550	2190	1950	3400	3.75	144
DL353	180	300	60	36	60	36	30	15	12	6	Φ350×3	580	4460	2100	2160	2600	4850	6	216
DL402	120	200	60	24	60	24	20	10	8	4	Φ410×2	585	4140	1550	2250	2450	3400	3.75	144
DL403	180	300	60	36	60	36	30	15	12	6	Φ410×3	585	4420	2100	2250	3350	4850	6	216

Sludge dehydrator advantages

Screw press sludge dehydrator, also known as multi disc volute screw press, with its advantages of energy saving, stability and high degree of automation, occupies a place in the sludge dewatering operation of the current sewage treatment industry, and is still rapidly recognized. And it was accepted by the market.

It is a new type of sludge extrusion dehydrating equipment, using the screw extrusion principle, through the screw diameter and pitch changes produced by the strong extrusion pressure, as well as the small gap between the floating ring and the fixed ring, to achieve solid-liquid separation. The dewatering screw press is composed of automatic control cabinet, flocculation modulation box, sludge concentration and dewatering device and liquid collecting tank. The automatic control technology can realize the automatic operation of flocculation, continuously complete the sludge concentration and extrusion, and finally return or discharge the collected filtrate.

Sludge dehydrator key features

Liquid outlet with pond depth regulation and energy recovery

PowerTubes adjustable outlets are designed to release the liquid tangential to the rotating direction, supporting the bowl rotation and thereby recovering energy, and minimizing power consumption.

Increased separation performance and energy efficiency

Increasing the pond depth inside the bowl creates a larger volume, leading to longer retention time and improved separation performance. The SuperPond design features a deeper pond and smaller solids outlet diameter, resulting in high solids dryness and clean centrate at high flow rates, as well as low energy consumption.

Rotating feed zone

Low turbulence in the decanter centrifuge bowl is essential for high separation performance and low power consumption. The VecFlow™ rotating feed zone gives you maximum performance with minimal turbulence.

Robust wear protection for conveyor flights

FlightGuard wear protection consists of tiles welded to the conveyor of your decanter centrifuge, providing robust wear resistance and prolonged uptime in highly abrasive applications.

Feed zone with replaceable wear protection

The uniquely designed FeedProtect feed zone ensures gentle product acceleration and minimal turbulence, resulting in low abrasion and power consumption. The FeedProtect design is equipped with replaceable wear-protection liners, ensuring high uptime of your decanter centrifuge.
