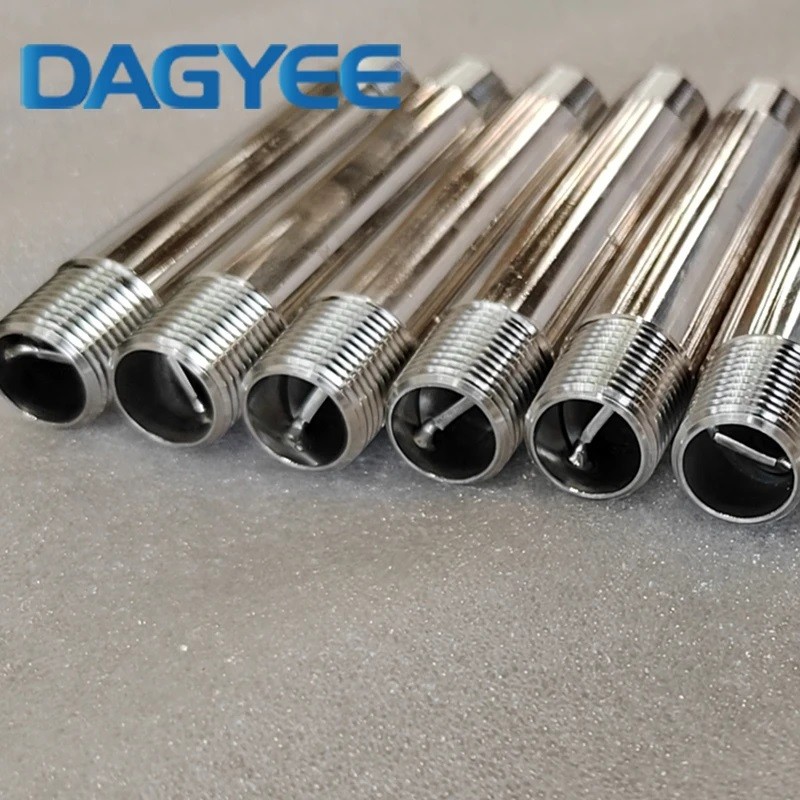

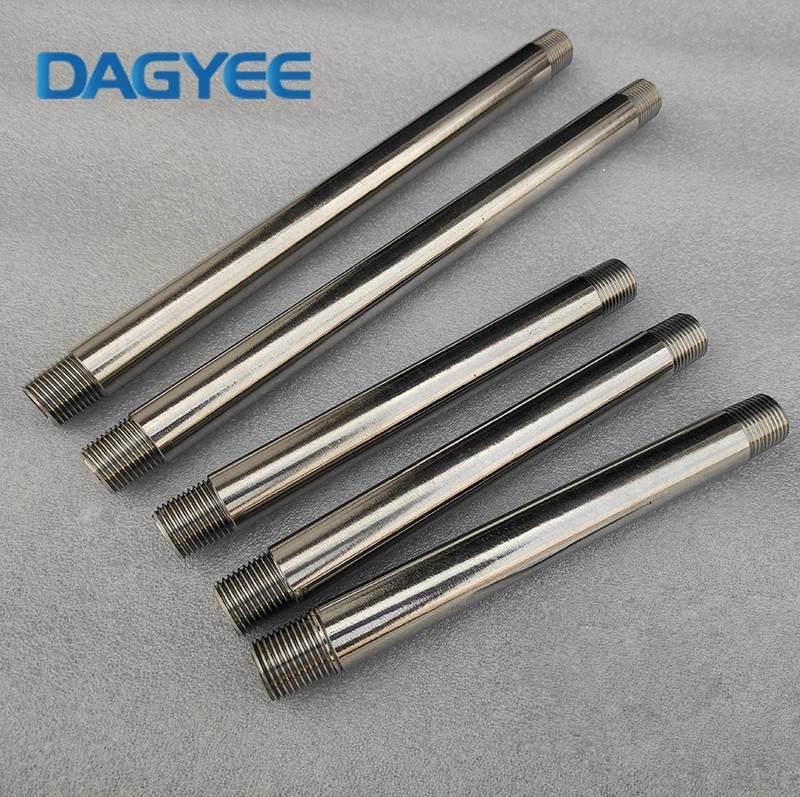

Corrosion-Resistant 316 Stainless Steel Static Mixer for Sanitary Applications

Corrosion-Resistant 316 Stainless Steel Static Mixer for Sanitary Applications

Product Item : SK
Category： Static Mixer
Material Grade: 316 Stainless Steel, 304 Stainless Steel
Surface Finish: Electro-polished, Sanitary Finish
Pressure Rating: 150 PSI, 300 PSI
Industry Use: Food & Beverage, Pharmaceutical, Biotech
INQUIRY EMAIL

Static Mixers

Static Mixers are highly-engineered motionless mixing devices that allow for the continuous blending of fluids within a pipeline. With no moving parts, static mixers utilize the energy of the flow stream to generate consistent, cost-effective, and reliable mixing. DAGYEE static mixers are available in-stock for direct purchase or custom designed to meet your specific mixer requirements. Meeting a range of flow rates for a variety of applications, DAGYEE static inline mixers are the reliable, durable, and efficient solution to your motionless, continuous mixing needs.

Static Mixer Structure

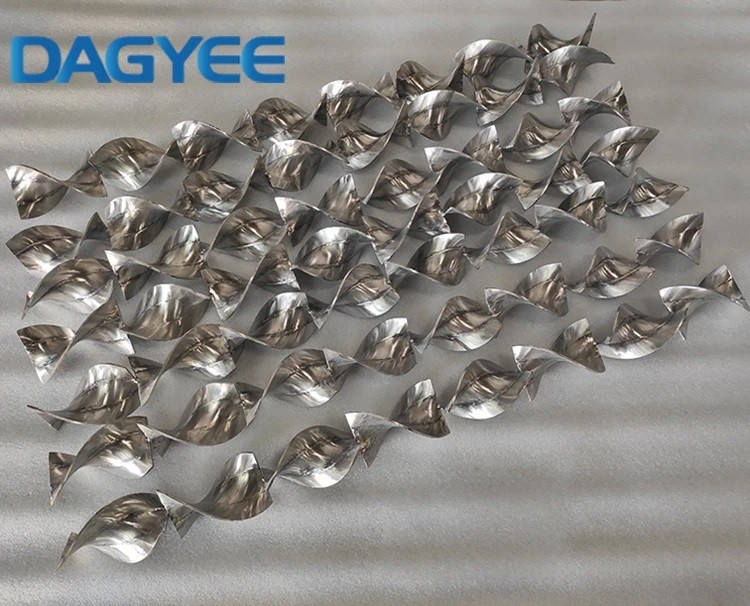

In the housed-elements design the static mixer elements consist of a series of baffles made of metal or a variety of plastics. Similarly, the mixer housing can be made of metal or plastic. The housed-elements design incorporates a method for delivering two streams of fluids into the static mixer. As the streams move through the mixer, the non-moving elements continuously blend the materials. Complete mixing depends on many variables including the fluids' properties, tube inner diameter, number of elements and their design. The housed-elements mixer's fixed, typically helical elements can simultaneously produce patterns of flow division and radial mixing:

Flow division: In laminar flow, a processed material divides at the leading edge of each element of the mixer and follows the channels created by the element shape. At each succeeding element, the two channels are further divided, resulting in an exponential increase in stratification. The number of striations produced is 2n where 'n' is the number of elements in the mixer.
Radial mixing: In either turbulent flow or laminar flow, rotational circulation of a processed material around its own hydraulic center in each channel of the mixer causes radial mixing of the material. Processed material is intermixed to reduce or eliminate radial gradients in temperature, velocity and material composition.

Static Mixer SK Series Model

Model	Dg(mm)	dh(mm)	Q(m3/h)
SK-5/10	10	5	0.15-0.3
SK-7.5/15	15	7.5	0.3-0.6
SK-10/20	20	10	0.6-1.2
SK-12.5/25	25	12.5	0.9-1.8
SK-16/32	32	16	1.4-3.2
SK-20/40	40	20	2.2-4.5
SK-25/50	50	25	3.5-7.0
SK-32.5/65	65	32.5	5.9-12
SK-40/80	80	40	9-18
SK-50/100	100	100	14-28
SK-62.5/125	125	125	22-44
SK-75/150	150	150	31-64
SK-100/200	200	200	56-110
SK-125/250	250	250	88-177
SK-150/300	300	300	127-255
SK-175/350	350	350	173-346
SK-200/400	400	400	226-452
SK-250/500	500	500	353-706

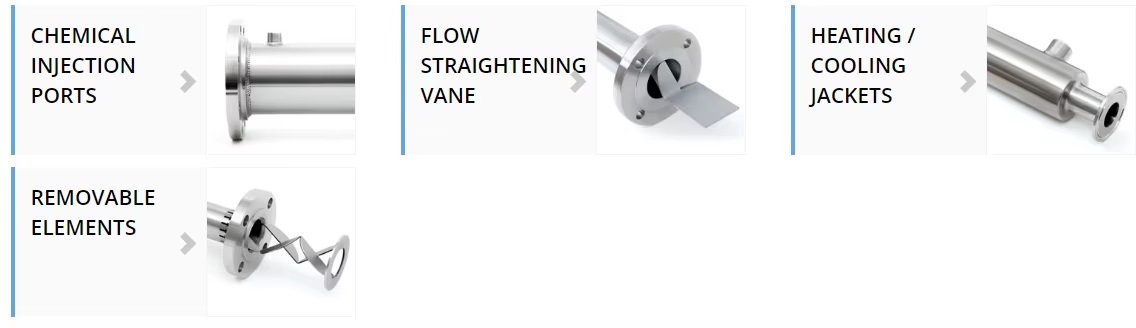

Static Mixer Options

Static Mixer Features

Our customization capabilities at DAGYEE give our customers a multitude of options for their existing systems. We can design and build custom static mixers for our clients that meet each unique system's demands and requirements to ensure a seamless fit and a top-tier end product is achieved. Customers may customize their industrial static mixer length up to 72", pick of construction material, choice of open or closed channel, element customizations, addition of injection ports, and choice of end connections, including flanged, threaded, plain, and DIN ends.

Static Mixer Applications

The DAGYEE static mixer, known as the Triple Action Static Mixer, can be found in water/wastewater treatment, chemical industries, biofuels, oil and gas pipelines and custody transfer stations, mineral mining process, pulp and paper industries, desalination plants, food and beverage processing, plastics processing, power generation, and petrochemical industries.
