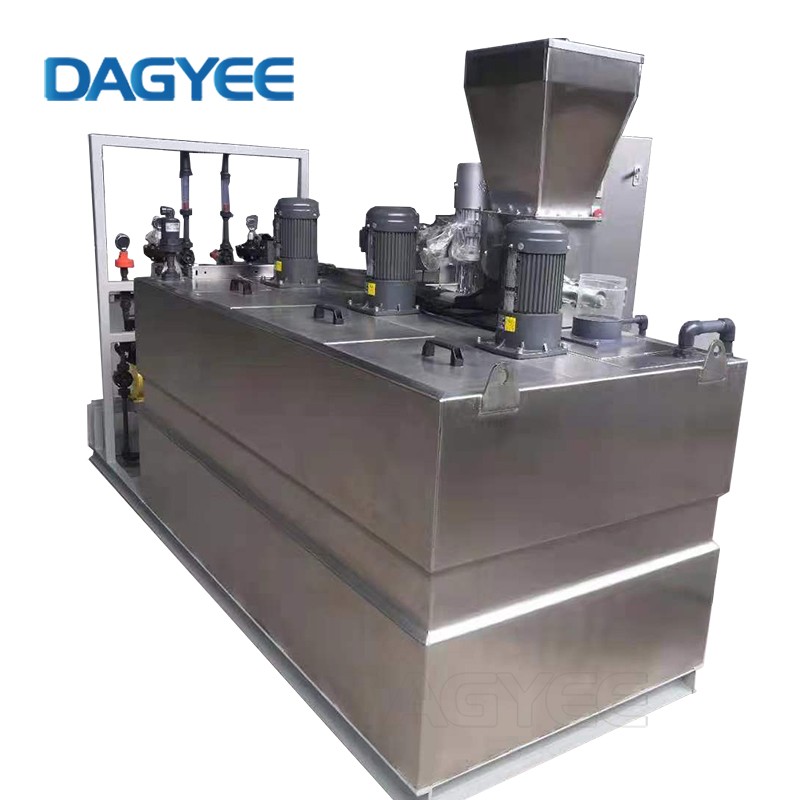

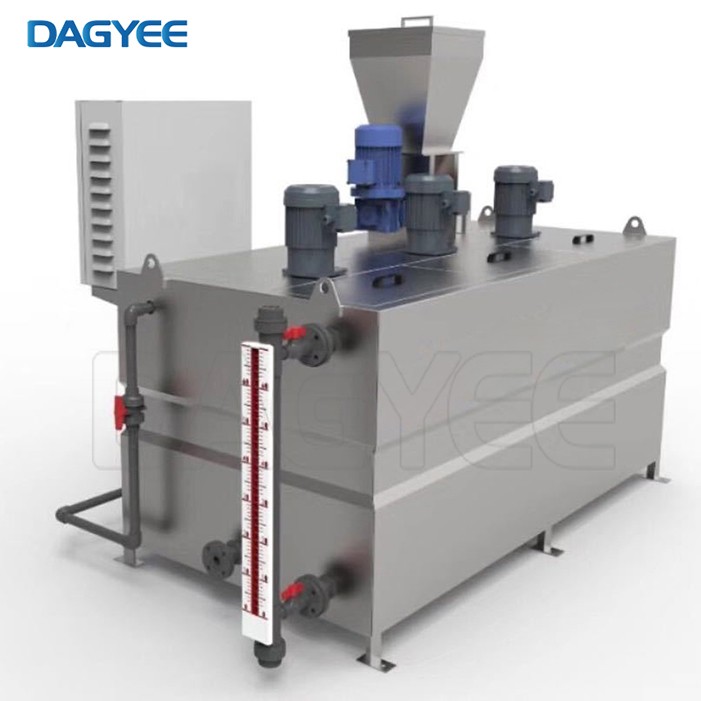

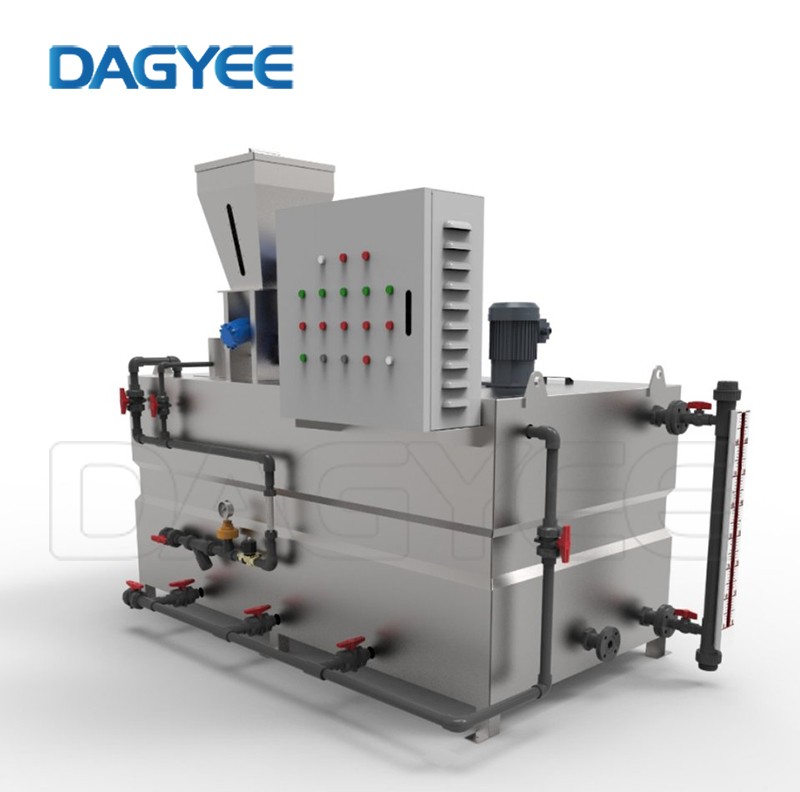

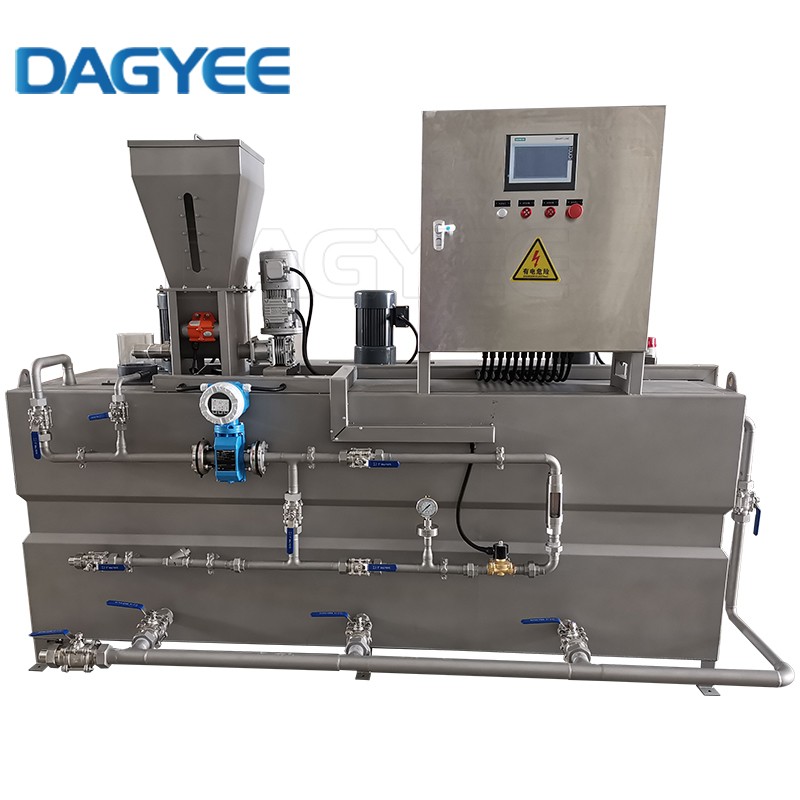

Compact Polymer Preparation Station for Educational Use

PAM polymer preparation unit Description

It is a pre-engineered polymer mixing system made for the water and wastewater markets. Designed as an in-line unit, it can be customized to meet most liquid polymer applications utilizing tubing or diaphragm pump technologies depending on the application requirement or customer preference. The unique mixing chamber allows for complete makedown of the neat or diluted polymer to guarantee a problem-free injection.

Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.

Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.

Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.

PAM Polymer Preparation Unit Model

PAM Polymer Preparation Feature

• Consistent high-quality flocculant solution

PAM Polymer Preparation Application

• Chemical Treatment Systems
• Industrial Wastewater Treatment Systems
• Grease Industries
• Sugar Industries
• Leather Industries
• Wastewater Treatment Systems
• Filtration Systems
• Sludge Dewatering
• Conditioning Chemical or Excess Biological Sludge
