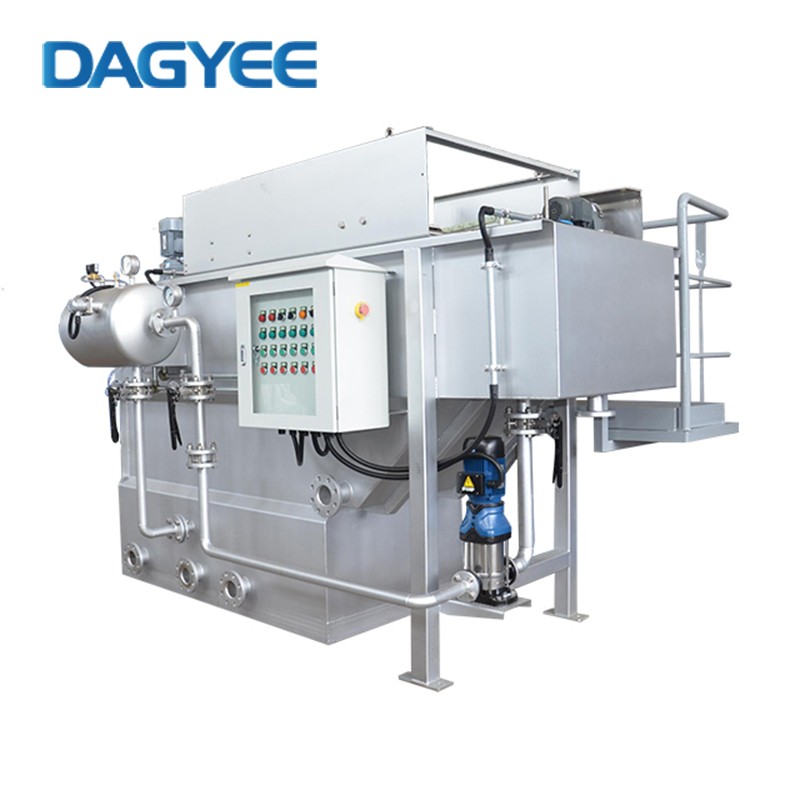

Dissolved Air Flotation Description
Dissolved Air Flotation (DAF) units play a pivotal role in modern wastewater treatment processes. These units are designed to remove suspended solids, oils, and other contaminants from wastewater by injecting air into the water under pressure. Once the pressure is released, tiny air bubbles interact with the suspended particles, causing them to float to the surface where they can be easily skimmed off. This process results in the production of clarified water which is then directed to the bottom of the flotation chamber and collected at an effluent control weir. By efficiently separating impurities, DAF units enhance the quality of treated water and ensure compliance with stringent environmental regulations.
Dissolved Air Flotation Feature
The continuous evolution of DAF technology is driven by the need for greater efficiency and sustainability.
-
Energy Efficiency: Advances focus on reducing energy consumption through improved aeration systems and optimized flotation models. The development of ultra-fine bubble generators enables more efficient bubble-particle aggregation.
-
Chemical Dosing Optimization: Use of coagulant and flocculant aids in improving the agglomeration of particles prior to flotation, enhancing the removal efficiency and reducing chemical usage.
-
Automation and Control Systems: Modern DAF units often incorporate sophisticated control systems for optimizing operation, facilitating real-time monitoring and adjustment of process parameters to ensure optimal performance.
Dissolved Air Flotation Available Options
-
Access platforms with ladder or stairs
-
Automatic sludge pump out packages
-
Chemical pretreatment systems
-
Concrete tank designs for large in ground installations
-
Duplex systems for redundancy
-
Effluent monitoring
-
Effluent sampling
-
Explosion-proof design
-
Flash mix/flocculation tanks with mixers
-
Full FRP or stainless steel construction
-
Influent equalization
-
Influent / effluent lift stations
-
Instrumentation and controls
-
Removable covers with gaskets
-
Integral mechanical sludge thickener
-
On board reagent storage (day tanks)
-
Pilot size units for on-site testing
-
Potable water design
-
Special coatings
-
Sludge handling and dewatering
Dissolved Air Flotation Applications
DAF systems find applicability across multiple industrial sectors, addressing specific water treatment needs.
1. Municipal Wastewater Treatment
In municipal settings, DAF systems are utilized for primary treatment to remove floatable solids. They play a key role in reducing BOD (Biological Oxygen Demand) and TSS (Total Suspended Solids) concentrations, ensuring the water meets regulatory discharge standards.
2. Industrial Water Treatment
Various industries employ DAF technology to manage their wastewater:
Food and Beverage Industry: Efficiently removes FOG and other organic solids from food processing wastewater, thereby protecting subsequent treatment processes.
Pulp and Paper Industry: Essential in reducing chemical oxygen demand (COD), DAF units help remove cellulose fibers and other suspended materials from wastewater streams.
Oil and Gas Industry: DAF is crucial for separating hydrocarbons from produced water, ensuring compliance with environmental regulations and facilitating safer disposal or reuse.
3. Pretreatment for Membrane Filtration
DAF systems are often used as a pretreatment step before membrane filtration. By significantly reducing suspended solids, DAF improves membrane lifespan and performance in processes like ultrafiltration and reverse osmosis.
