Inline Static Strainer Screen - Pipeline Debris Filtration System

Static screen wastewater description

Static Screens – Screens installed above the ground, the wastewater taken in from the inlet structure rises and flows over the perforated sheet produced at a special angle, by

attraction, the solid materials and particles in the waste water are kept on the sieve.

Waste water free of solids continues to the treatment system with the outlet line from the bottom of the screen.

Solid matter and particles remaining on the sieve are removed from the screen surface by gravity (angle grid) or automatic brush cleaning system (Optional).

Static screen wastewater works

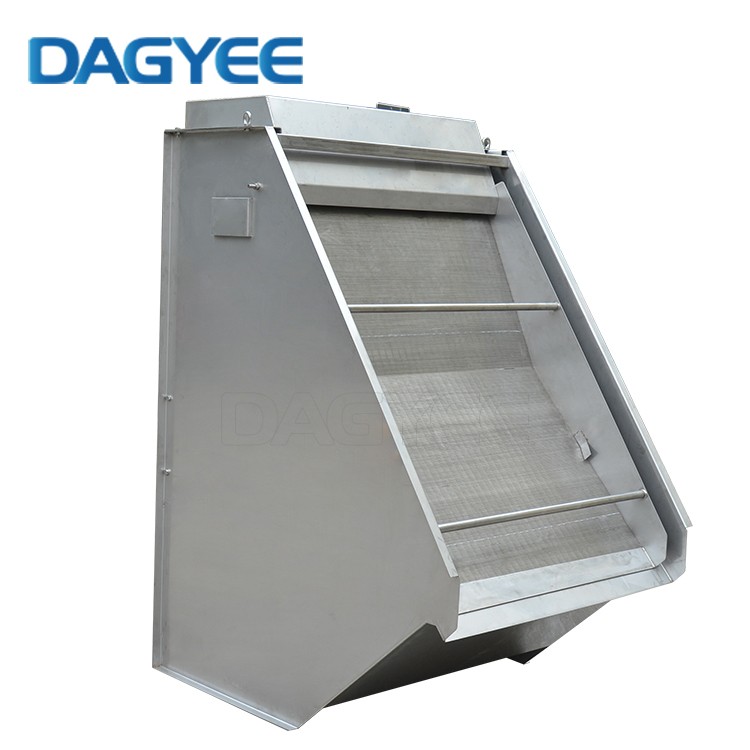

Static Screen head box reduces turbulence of wastewater or processed slurry and delivers flow to the wire.

A swing baffle distributes flow across the width of the screen surface and the liquid is then separated out of the slurry as it passes across the upper part of the screen panel.

Most of the solids are captured on the curved face of the screen while the liquid is drained to the bottom part via the back of the screen.

This screen provides excellent liquid/solid separation at a low capital cost and low maintenance.

Static screen wastewater model

Static screen wastewater advantage

1. Upflow screen arrangement less prone to blinding.
2. Corrugated wave panel gives more screening surface area.
3. Non-stick polymer coating discourages ragging.
4. Flow-modifying baffles on the under side of screen discourage "preferential loading"wherein one part of the screen gets an disproportionate loading of screenings in the flow.
5. No power requirements or replacement parts.

Static screen wastewater feature

A mild steel painted or galvanised carcass can be provided for our Parabolic Rundown Screens to accommodate low budgets and client specific applications.

1. 304 or 316 Grade Stainless Steel on all wetted parts.

2. Efficient separation of liquids & solids.

3. Non-mechanical and low maintenance.

4. Widths to suit flow rate & bow screen slot gap requirements.

5. No moving parts.

Static screen wastewater application

Wastewater Treatment: Ideal for removing suspended solids from industrial wastewater.

Food and Beverage Processing: Ensures purity and safety in the production of beverages and food products.

Pulp and Paper Industry: Efficiently separates fibers and particles in the pulp and paper manufacturing process.

Chemical Processing: Provides reliable filtration in various chemical processing applications.
