Industrial-Grade Precision Water Filter Housing for German Market

Product description

---

Industrial Filtration Housings, Also known as filter vessels, housings encase filter bags and cartridges. Fil-Trek heavy-duty housings are available in various sizes, materials of construction and custom features for high-level filtration. An ideal choice for stand-alone, manifold or duplex filter systems.

Dagyee heavy-duty housings for bag and cartridge filters are available in various sizes, materials of construction and custom features. Our stainless steel filter cartridge housings are designed for the use in beverage, air, steam and gas filtration applications.

DAGYEE offers a variety of different filter cartridge housings for industrial and food applications. For industrial filtration tasks, our filter cartridge housings are an economical solution for price-sensitive applications. For demanding industrial applications, the cartridge filter housings are the best choice. For food and beverage filtration, filter cartridge housings made of stainless steel are an excellent choice. DAGYEE also manufactures housings for air, steam, and gas filtration applications.

Additionally, we produce measuring and testing devices for determining the filterability of liquids and for integrity tests on membrane filter cartridges.

Cartridge filter housings are protective enclosures that hold filter cartridges, facilitating the filtration of liquids or gases by trapping contaminants within the cartridges. These housings are used in a wide range of industries, including water treatment, pharmaceuticals, food and beverage, petrochemicals, and manufacturing. They are valued for their versatility, ease of maintenance, and ability to handle different filtration requirements.

Product structure

---

Housing Body: The housing body is the main structure that encloses the filter cartridges. It is typically made from materials such as stainless steel, carbon steel, or durable plastics to withstand high pressures and corrosive environments.

Filter Cartridges: The filter cartridges are the primary filtration elements, available in various materials such as pleated polypropylene, cellulose, or activated carbon. The choice of cartridge depends on the specific application and the type of contaminants to be removed.

Inlet and Outlet Ports: These ports allow fluid to enter and exit the housing. They are designed to accommodate various pipe sizes and connection types, ensuring compatibility with different systems.

Closure Mechanism: The closure mechanism secures the housing body and ensures a tight seal to prevent leaks. It can include clamps, bolts, or swing bolts, depending on the design.

Gaskets and Seals: Gaskets and seals are used to ensure a leak-proof connection between the housing body and the closure mechanism. They are typically made from materials such as silicone, EPDM, or Viton.

Pressure Gauges: Pressure gauges monitor the differential pressure across the filter cartridges, providing an indication of when the cartridges need to be replaced.

Vent and Drain Ports: Vent and drain ports are used to remove air and accumulated debris from the housing during maintenance and cartridge replacement.

Product technical

---

Seal type: O-rings and flat gasket

Sealing material: nitrile rubber(chemitum), silicone, fluorine rubber, usually use silicon

Rubber seal Filter interface: the threaded, clamp(hoop), GB, HG, DIN, ANSI

Filtration accuracy: 1μm - 100 μm

Body material: SS304/SS 316

Single filter Cartridges housings

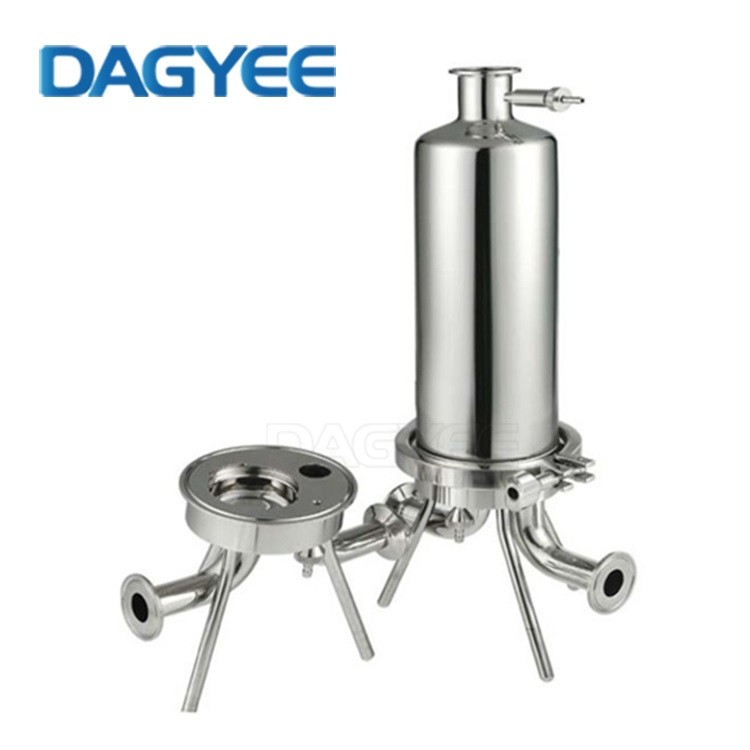

Single microporous filter housings

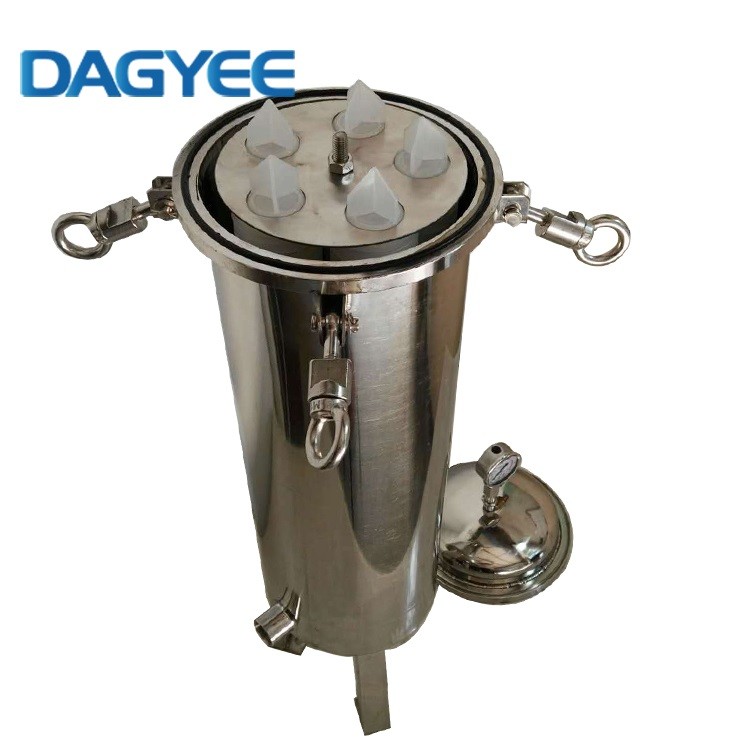

5 Cartridges filter Housings with flange

Single bag filter housings

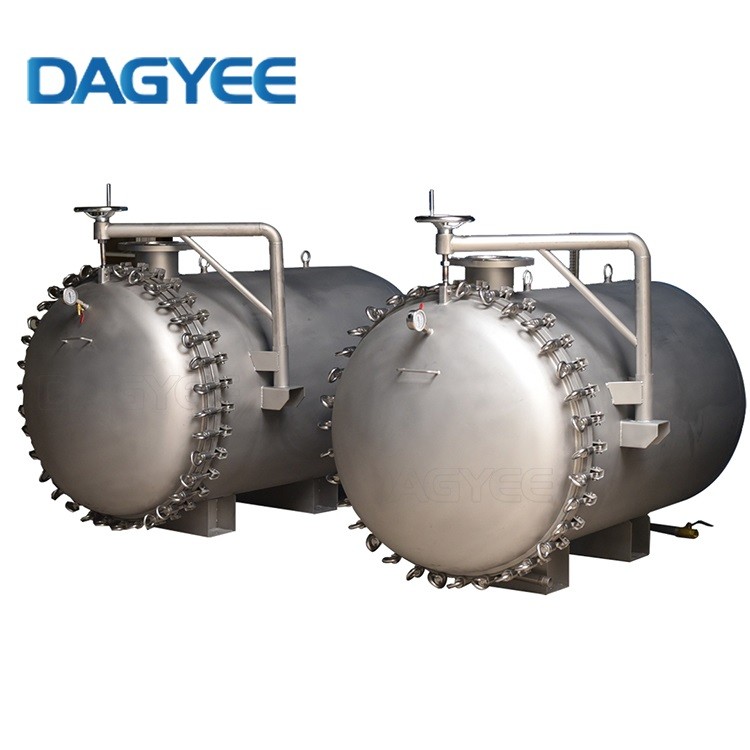

Multi Bag Filter Housings

Product advantage

---

High-Efficiency Processing, Ensures Production

Capable of handling high-flow conditions that single-cartridge housings cannot meet, directly supporting main production lines and boosting overall capacity.

Extended Service Cycles, Reduces Costs

The high dirt-holding capacity significantly extends intervals between cartridge changes, reducing consumable costs and maintenance labor expenses.

System Redundancy, Ensures Operational Reliability

Even if one or several cartridges become clogged or damaged, the remaining cartridges continue to operate, providing a buffer for scheduled maintenance and effectively preventing unplanned downtime.

Compact Structure, Saves Space

Compared to connecting multiple single-cartridge housings in parallel, one multi-cartridge housing saves installation space, piping, and valves, resulting in a simpler system and lower overall costs.

Simplified Maintenance, Boosts Efficiency

Replacing all cartridges simultaneously by opening a single top cover minimizes both maintenance time and associated production downtime.

Product feature

---

High-Capacity Design: Constructed to hold several to dozens of cartridges, significantly increasing the total filtration surface area and dirt-holding capacity.

Robust Construction: Typically made from carbon steel with protective coatings or stainless steel (SUS304/316L) for strength and corrosion resistance in demanding environments.

Efficient Flow Distribution: Internal baffling or design features ensure even flow across all cartridges, preventing premature clogging of any single cartridge.

Top-Service Design: Features a large, removable top head or bolted cover for easy access to all cartridges simultaneously, simplifying maintenance.

Integrated Accessories: Often includes accessories like pressure gauges (inlet/outlet), vent valves, and drain valves for operational control and safety.

Product application

---

Chemical & Petrochemical: Pre-filtration for membrane systems, catalyst recovery, chemical purification.

Power Generation: Filtration of feed water, condensate, and fuel oil.

Metallurgy & Metalworking: Centralized coolant filtration systems, rolling mill coolant purification.

Water & Wastewater Treatment: Pre-filtration for reverse osmosis (RO) systems, effluent polishing, municipal water treatment.

Food & Beverage: Bulk filtration of process water and solvents in large-scale production.od & Beverage: High-volume pre-filtration for ingredients, process water, and final product polishing.

Pharmaceutical: Bulk filtration of process water and solvents in large-scale production.
