Static Mixers are highly-engineered motionless mixing devices that allow for the continuous blending of fluids within a pipeline. With no moving parts, static mixers utilize the energy of the flow stream to generate consistent, cost-effective, and reliable mixing. DAGYEE static mixers are available in-stock for direct purchase or custom designed to meet your specific mixer requirements. Meeting a range of flow rates for a variety of applications, DAGYEE static inline mixers are the reliable, durable, and efficient solution to your motionless, continuous mixing needs.
The mixing elements or fins induce turbulent flow in the mixer housing which mixes chemicals added either ahead of the mixer or through an injection port on the mixer housing.
Static mixers are aimed at 0.5 or 95% mixing at 3D (pipe diameter) of the mixer outlet.
There is no typical static mixer design, a variety of designs are available to suit specific applications.

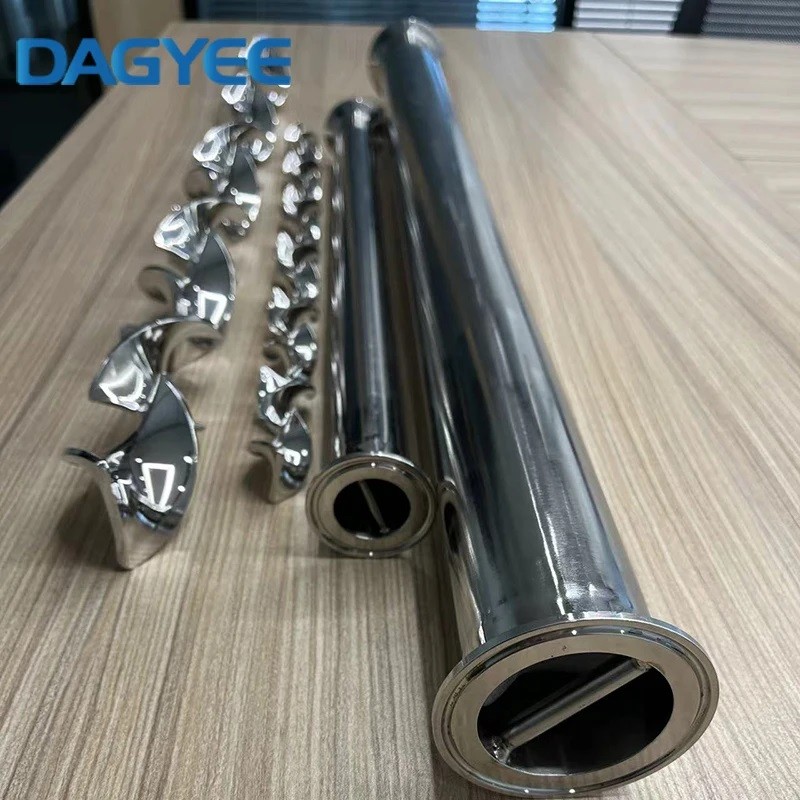

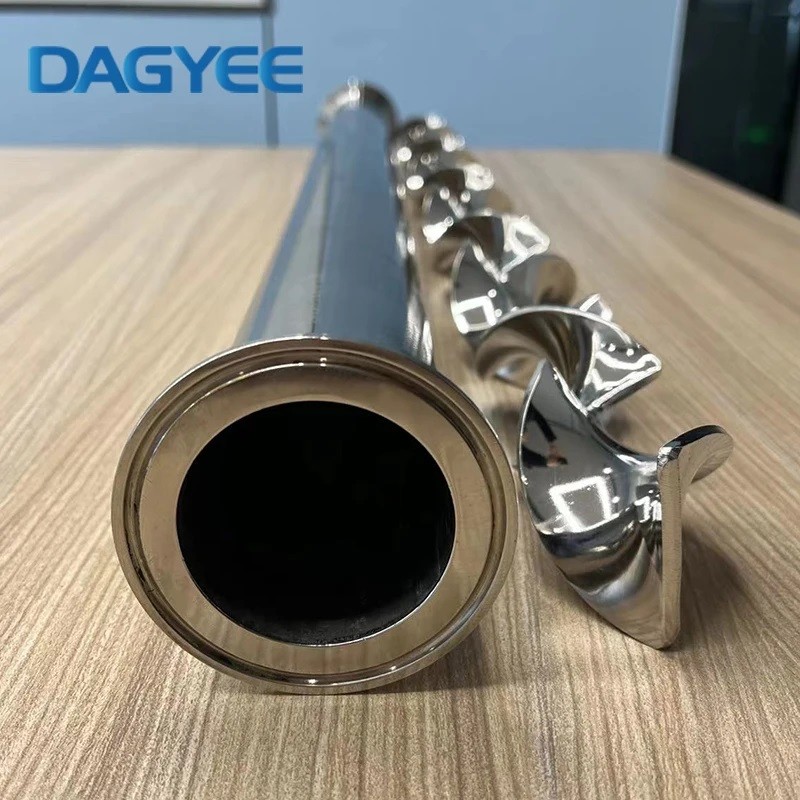

Helical coil mixers for the chemical pharmaceutical and food industries.
Fin mixers for the water industry - Fin mixers The mixing elements (foils) of the mixer are mounted on the walls of the mixer housing and are so-called open designs, which means that they are less likely to clog, they The pressure drop is lower than that of a helical coil mixer.
Static mixer technical
| Model | Dg(mm) | dh(mm) | Q(m³/h) |
|---|---|---|---|
| SK-5/10 | 10 | 5 | 0.15-0.3 |
| SK-7.5/15 | 15 | 7.5 | 0.3-0.6 |
| SK-10/20 | 20 | 10 | 0.6-1.2 |
| SK-12.5/25 | 25 | 12.5 | 0.9-1.8 |
| SK-16/32 | 32 | 16 | 1.4-3.2 |
| SK-20/40 | 40 | 20 | 2.2-4.5 |
| SK-25/50 | 50 | 25 | 3.5-7.0 |
| SK-32.5/65 | 65 | 32.5 | 5.9-12 |
| SK-40/80 | 80 | 40 | 9-18 |
| SK-50/100 | 100 | 100 | 14-28 |
| SK-62.5/125 | 125 | 125 | 22-44 |
| SK-75/150 | 150 | 150 | 31-64 |
| SK-100/200 | 200 | 200 | 56-110 |
| SK-125/250 | 250 | 250 | 88-177 |
| SK-150/300 | 300 | 300 | 127-255 |
| SK-175/350 | 350 | 350 | 173-346 |
| SK-200/400 | 400 | 400 | 226-452 |
| SK-250/500 | 500 | 500 | 353-706 |
The energy required for mixing is efficiently extracted as pressure drop from the fluid flow through the elements. Mixers are invariably installed in existing systems without reducing the capacity of existing pumps.
The installation is very easy; no special skills are required other than normal engineering skills.
Mixers have no moving parts and are virtually maintenance free.
Static Mixers are available in all standard pipe sizes and, in the case of open channel designs, are available in any size with no upper limit.
Each Static Mixer is carefully designed to meet the specific requirements of each application.
Our customization capabilities at DAGYEE give our customers a multitude of options for their existing systems. We can design and build custom static mixers for our clients that meet each unique system's demands and requirements to ensure a seamless fit and a top-tier end product is achieved. Customers may customize their industrial static mixer length up to 72", pick of construction material, choice of open or closed channel, element customizations, addition of injection ports, and choice of end connections, including flanged, threaded, plain, and DIN ends.
Static mixer application
The DAGYEE static mixer, known as the Triple Action Static Mixer, can be found in water/wastewater treatment, chemical industries, biofuels, oil and gas pipelines and custody transfer stations, mineral mining process, pulp and paper industries, desalination plants, food and beverage processing, plastics processing, power generation, and petrochemical industries.
