High-Capacity Internally Fed Rotary Screen Drum for Industrial Effluent

High-Capacity Internally Fed Rotary Screen Drum for Industrial Effluent

Category： Internally Drum Screen
Motor Power: 1.5 kW (Standard, Customizable)
Drum Diameter: 1000mm, 1500mm, 2000mm
Screening Efficiency: > 85% for SS removal
Control System: PLC Automatic Control with HMI
INQUIRY EMAIL

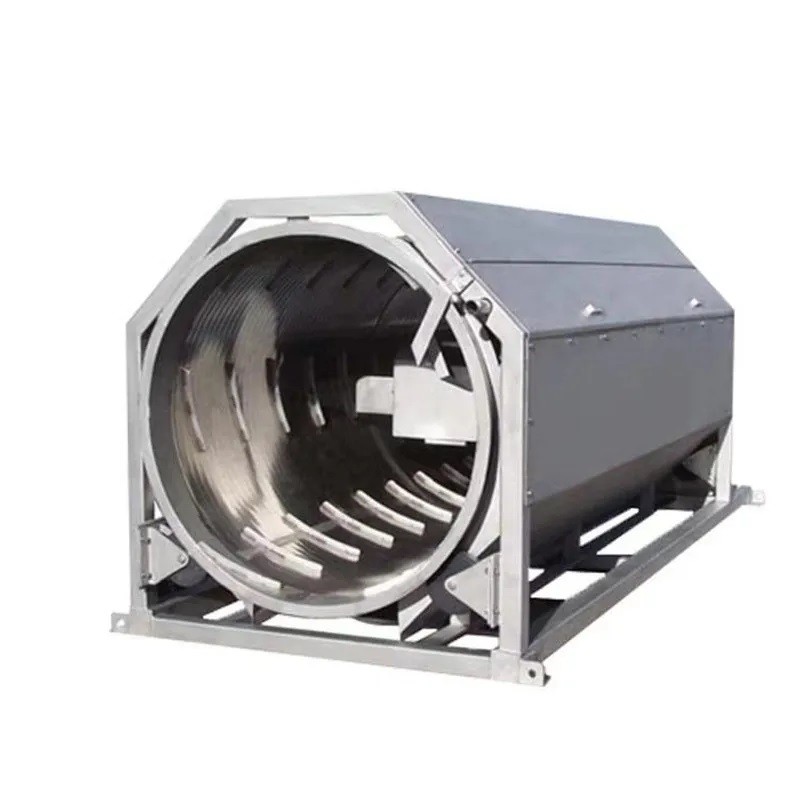

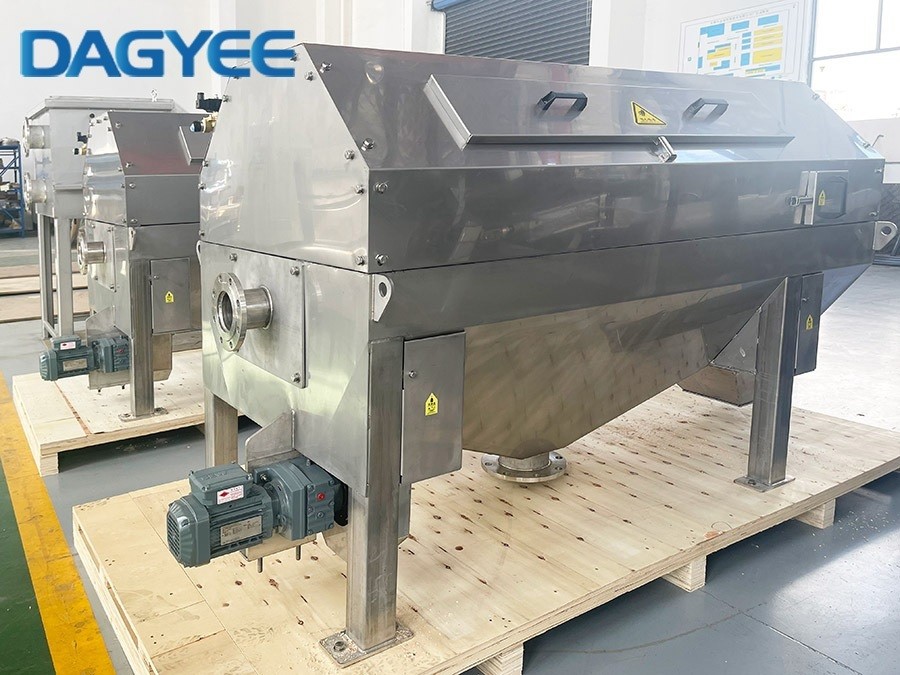

Internally Fed Rotary Screen Drum screen Description

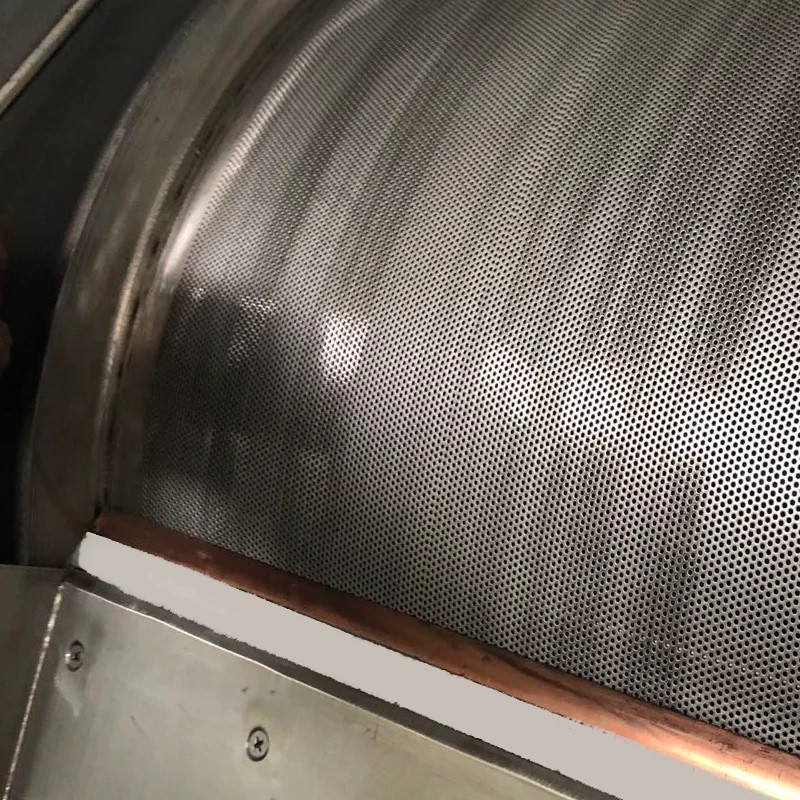

DRUM SCREEN is an internally fed screening device with the flow being fed and distributed inside a screening cylinder called drum. The stainless steel cylinder designed with wedge wire mesh or perforated holes from 0,25 to 6 mm provide the best screening/solids capture performance in all screening applications.

Internally Fed Rotary Screen Drum screen Model

DIRD Model	Drum size	Physical Dimensions(mm)			Power	Weight (Kg)	Capacities(m3/h)			Sludge height
DIRD Model	mm	L	W	H	KW	Weight (Kg)	1mm	2mm	3mm	mm
IRD6-900	Ø600x900	1900	1350	1700	0.55	630	15	25	30	500
IRD6-1200	Ø600x1200	2200	1350	1700	0.55	820	30	50	60	500
IRD6-1500	Ø600x1500	2500	1350	1700	0.75	1000	45	70	85	500
IRD6-1800	Ø600x1800	2800	1350	1700	0.75	1160	60	100	120	500
IRD6-2100	Ø600x2100	3100	1350	1700	1.1	1300	80	135	170	500
IRD9-1200	Ø900x1200	2300	1600	2200	1.1	1200	40	70	85	600
IRD9-1800	Ø900x1800	2900	1600	2200	1.1	1470	80	135	170	600
IRD9-2500	Ø900x2500	3600	1600	2200	1.5	1800	120	200	250	600
IRD9-3000	Ø900x3000	4100	1600	2200	1.5	2100	160	270	350	600

Internally Fed Rotary Screen Drum screen Adavantage

Headbox design optimizes screen throughput to minimize overall size rotary drum screen
Intermittent spray wash reduces water usage to clean drum screens
Drum filter media optimized for various applications
Robust design and all stainless steel construction reduce downtime and maintenance costs
Easy access to all maintenance items
Higher capture rate compared to conventional moving media screens
