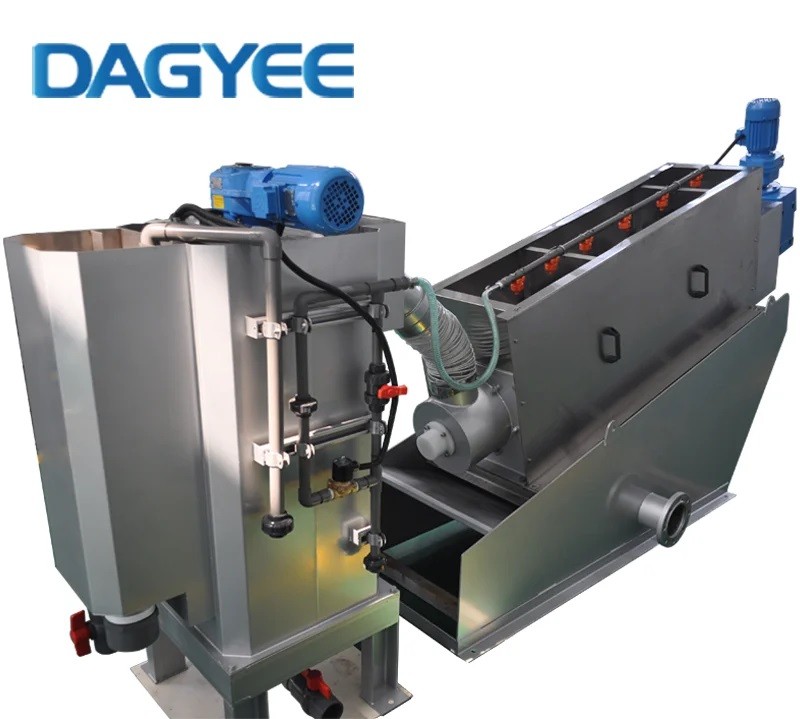

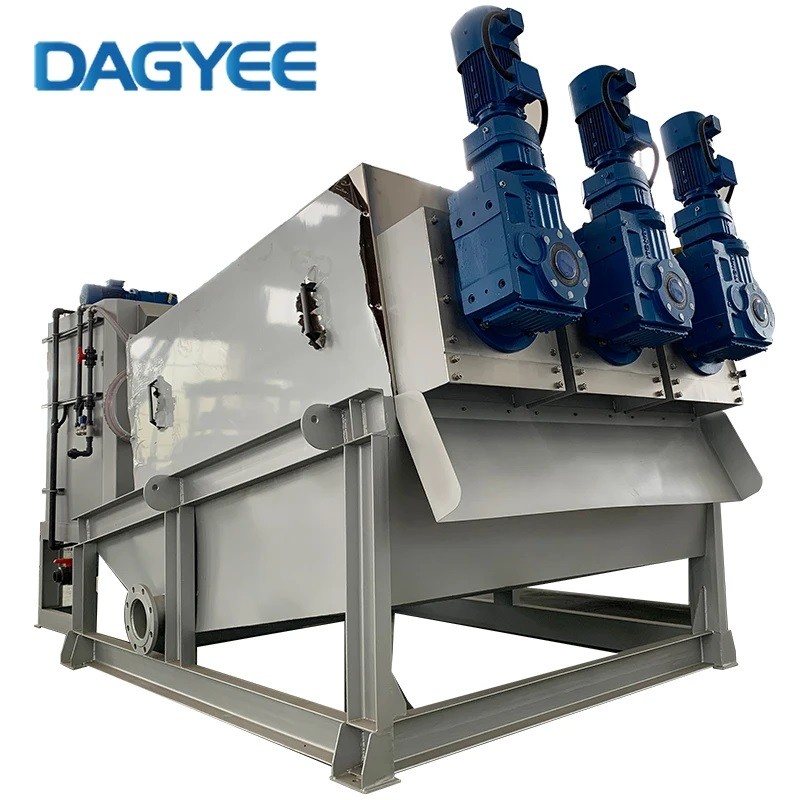

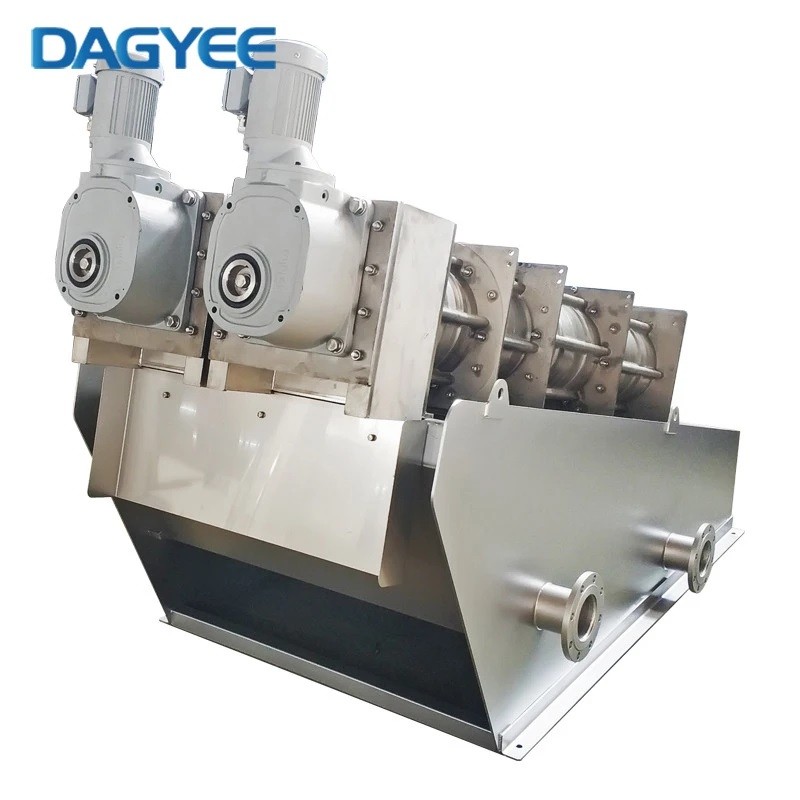

Cost-Effective Easy Maintenance Small Scale Screw Sludge Dewatering Machine

I. Sludge dehydrator introduction

---

Screw press sludge dewatering machine is an efficient and reliable solution to sludge water management and wastewater treatment. It utilizes a screw mechanism to transport and compress sludge, separating the water from the solid materials. The dewatered sludge cake is with reduced moisture content and volume, making it easier to handle and dispose of.

It adopts the screw extrusion principle. The rotation of the screw shaft produces a great internal pressure under the blocking action of the backpressure plate while pushing the sludge transportation so that the volume is continuously reduced, and the purpose of dewatering is finally achieved.

Discover the most efficient sludge dewatering machine designed to separate solid and liquid components of sludge. Reduce disposal costs, …

II. Sludge dehydrator description

---

Sludge dewatering is the procedure of reducing waste volume to prepare it for successful disposal. Sludge is formed during the treatment of wastewater before it is released back into the environment. Sludge, a by-product recovered from slurry during the process of industrial or municipal wastewater treatment, has long been a source of concern for the water treatment sector. Dewatering the sludge with a sludge  dewatering machine reduces its weight and volume before disposal significantly.

III. Sludge dehydrator process

---

The dehydrator is mainly composed of sludge premix module, concentration and dewatering module and electric control system. In the actual working process, the sludge is pumped to the metering tank by an external conveying pump. The sludge after distillation further flows into the flocculation tank, reacts with the flocculant fully under the stirring of the agitator to produce stable alum, and then enters the dewatering screw through the upper part of the flocculation tank. In the dehydrated body, alum flowers concentrate in the concentrated section by gravity and advance to the dehydrated section at the same time. In the process of propulsion, with the filter clearance and pitch gradually reduced, and the back pressure plate blocking effect.

The main body of the screw press dehydrator is a filter device which is superimposed by a plurality of fixed rings and floating rings, and the screw shaft runs through it. The anterior segment is concentrated and the posterior segment is dehydrated. Sludge concentration and dewatering are done in one cylinder. During the spiral rotation, the floating ring and the fixed ring will form a dislocation movement, and the water will be discharged from the gap between the floating ring and the fixed ring. It replaces the traditional filter cloth filtering method with a unique and subtle filter pattern.

Following the principles of force and water in the same direction, thin layer dehydration, appropriate pressure, and prolonged dehydration path, the screw press solves the problems of easy blockage, inability to handle low-concentration sludge and oily sludge, high energy consumption, and complex operation. The dehydration goal of high efficiency and energy saving was achieved.

IV. Sludge dehydrator overall composition

---

The dehydrator is mainly composed of sludge premix module, concentration and dewatering module and electric control system.

The main body of the screw press dehydrator is a filter device which is superimposed by a plurality of fixed rings and floating rings, and the screw shaft runs through it. The anterior segment is concentrated and the posterior segment is dehydrated. Sludge concentration and dewatering are done in one cylinder.

The screw press, with conical screw shaft and cylindrical screen, consists of three treatment zones: an inlet and drive zone, a three-part thickening and dewatering zone and a press zone with a pneumatic counterpressure cone. Cost-effective sludge dewatering with independent sludge treatment.

In the first part of the thickening and dewatering zone, the supernatant is quickly removed by a feed pump through a large free filter surface at low primary pressure. A pressure probe in the feed zone controls the primary pressure, thus ensuring consistent filtrate quality.

In the second part of the screen, the volume of material between the screw threads is reduced by means of a conical screw and the sludge is pressed against the inner surface of the screen, thus dewatering the sludge and decreasing the cake thickness. The screen aperture in this screen section is much smaller.

In the third part of the screen, the remaining water is pressed out of the sludge with minimum cake thickness by a pneumatic counterpressure cone at the press-out. The dewatered sludge is pushed by a screw conveyor over the pressure cone into the discharge chamber. The residence time of the sludge in the screw press as well as the filtering time can be adjusted by adjusting the speed of the screw shaft to meet individual requirements.

The initial section of dewatering drum is the thickening Zone, where the solid-liquid separating process takes place and where the filtrate will also be discharged. The pitch of the screw and the gap between the rings decrease at the end of dewatering drum, hence increasing its internal pressure, end Plate further increases the pressure, so as to discharge dry sludge cake.

V. Sludge dehydrator complete practical operation steps

---

The operation of a Multi-disc Screw Press follows these basic steps:

Sludge Conditioning

Polymer is mixed with the incoming sludge to agglomerate the solid particles, forming larger flocs. This increases filtration efficiency.

Sludge Feeding

The conditioned sludge is fed into the dewatering drum.

Thickening and Dewatering

The drum consists of a screw shaft that rotates slowly. Surrounding this screw are alternating fixed and moving rings. As the screw rotates, it transports the sludge toward the outlet. During this movement: Water is drained through the narrow gaps between the discs. Pressure increases as the pitch of the screw tightens and the volume decreases, squeezing more water out of the sludge.

Cake Discharge

The dewatered sludge (now a semi-solid cake) is pushed out from the end of the screw shaft for disposal or reuse.

Sludge is first flow into the Control Tank and then flows down into the Flocculation Tank, Where polymer coagulant is added. From there, the flocculated sludge overflows into the dewatering drum where it is filtered and compressed. The entire operation sequence, including sludge feed control, polymer makeup, dosing and sludge cake discharge are controlled by the built-in timer and sensors of the PLC.

The sludge is delivered to the metering tank through the sludge pump, and then the sludge flows into the flocculation mixing tank. The excess sludge flows back to the sludge tank from the overflow pipe. Inject polymer flocculants into the flocculation mixing tank, alum floc formed after stirring, and then enters into a dewatering section of a screw press after gravity concentration (pre-treatment) section. Flocculation and dewatering are carried out in sequence, so that we have a three-stage separation process: flocculation, dewatering and concentrate recovery.

The sludge enters the dewatering machine and the sludge moves towards the sludge cake outlet under pressure from the helical screw blades. Since the pitch becomes narrower towards the outlet of the sludge cake, the sludge bears heavier pressure and begins to dewater. Water comes out from the space between fixed and moving rings while dry solids exits from the outlet.

In the actual working process, the sludge is pumped to the metering tank by an external conveying pump. The sludge after distribution further flows into the flocculation tank, reacts with the flocculant fully under the stirring of the agitator to produce stable alum flocs, and then enters the dewatering screw through the upper part of the flocculation tank. In the dehydrated body, alum flowers concentrate in the concentrated section by gravity and advance to the dehydrated section at the same time. In the process of propulsion, with the filter clearance and pitch gradually reduced, and the back pressure plate blocking effect. During the spiral rotation, the floating ring and the fixed ring will form a dislocation movement, and the water will be discharged from the gap between the floating ring and the fixed ring. It replaces the traditional filter cloth filtering method with a unique and subtle filter pattern.

VI. Sludge dehydrator model

---

VII.Sludge dehydrator advantages

---

(1) Adopt independent research and development technology

The main shaft adopts the self-developed technology of taper shaft and variable pitch. The sludge increases the axial and radial bidirectional pressure during the operation of the screw shaft, which improves the dehydration rate and work efficiency. [Read also: Screw Press Sludge Dewatering: An Effective Solution for Wastewater Treatment.

(2) Laser cutting and leveling processing technology

Using laser cutting and leveling technology processing technology, the flatness of the laminated sheet increases the dewatering rate of the equipment, and the sludge cake is dried to clear the water effect, and the stacked screw sludge dewatering machine will not leak mud, run mud, and appear thin mud soup.

(3) Long service life

The body of the sludge dewatering machine is made of 304 stainless steel, which is corrosion-resistant and wear-resistant.

(4) Automated procedures, saving water and electricity, and reducing project costs

Due to the use of low-speed screw extrusion technology, the power consumption is very low. At the same time, it is equipped with an automatic spray system, which avoids clogging and does not require a lot of water to rinse.

VIII. Sludge dehydrator key features

---

Power-saving operation

The screws inside the cylinder of the Sludge Dewatering Machine rotate at a very low speed – approximately 2 to 4 rpm – and consume very little energy. It reduces the power consumption in kWh per ton of dry solids by up to 90% in comparison with a centrifugal dewatering machine.

Water-saving design

The Sludge Dewatering Machine uses the moving rings to create a unique self-cleaning mechanism to keep the filter element clean and “open”, whereas competing technologies use large amounts of (pressurized) rinsing water for this purpose. That explains the major savings in rinsing water consumption that it offers.

Compared to a belt press and a centrifugal dewatering machine with the same throughput, a VOLUTE™ uses 90 to 95% less rinsing water.

Significantly extended lifespan of consumables reduces OPEX

The moving rings are driven by an external driveshaft to prevent contact with the screws, creating a friction-less design. This drastically extends the lifetime of consumable parts, resulting in an even better OPEX than our classic models already have.

No pre-thickening required

The machine’s design integrates both thickening and dewatering of the sludge, which allows processing of low-concentration sludges – having a TS of 0.5% or more – in a single machine without any pre-thickening system. This eliminates the costs for construction and operation of thickening and storage systems and reduces odors. On top, it reduces phosporus and nitrogen emmissions back into the waste water treatment plant, by dewatering the sludge when it’s as fresh as possible.

IX. Sludge dehydrator applications

---

Dewatering screw press is widely used across various industries, with applications in fruit and vegetable juicing, plant dewatering, processing spent grains. It plays a vital role in managing agricultural waste, including grass, stalks, and coconut shells, as well as fruit and vegetable waste and food waste. Additionally, it effectively handles wastewater and slurry, excelling in managing animal manure. This versatile machine also dewaters materials like paper pulp and sludge, making it a key component in sustainable waste management practices.

Screw press dewatering machine is widely used in fruit and vegetable juicing, agricultural waste dewatering, distiller’s grains dewatering, crushing and dewatering of fruit waste and vegetable waste, decomposition of food waste, extrusion dewatering of domestic waste, solid-liquid separation of animal feces, dewatering of pulp, sawdust, and sludge.

The versatility of the Sludge Dewatering Machine allows it to handle a wide variety of sludge types.

It is suitable for:

STP (Municipal Sewage sludge)

Dying Plant

ETP (Primary & Secondary)

Slaughter House

Oil Refinery

Tannery Sludge

Sludge from DAF

Solid Fuel Boiler Scrubber Water

Whether dealing with oily sludge, organic sludge, or fibrous sludge, it can adapt and deliver consistent performance.
