Petrochemical Oily Sludge Dewatering Screw System - High Temperature & High Pressure Design

Petrochemical Oily Sludge Dewatering Screw System - High Temperature & High Pressure Design

Product Item : DL-303
Category： Sludge Dehydrator
Material: SS304/SS316L
Productivity: 90-150KG/H
Machinery Test Report: Provided
Certification: CE /ISO9001
INQUIRY EMAIL

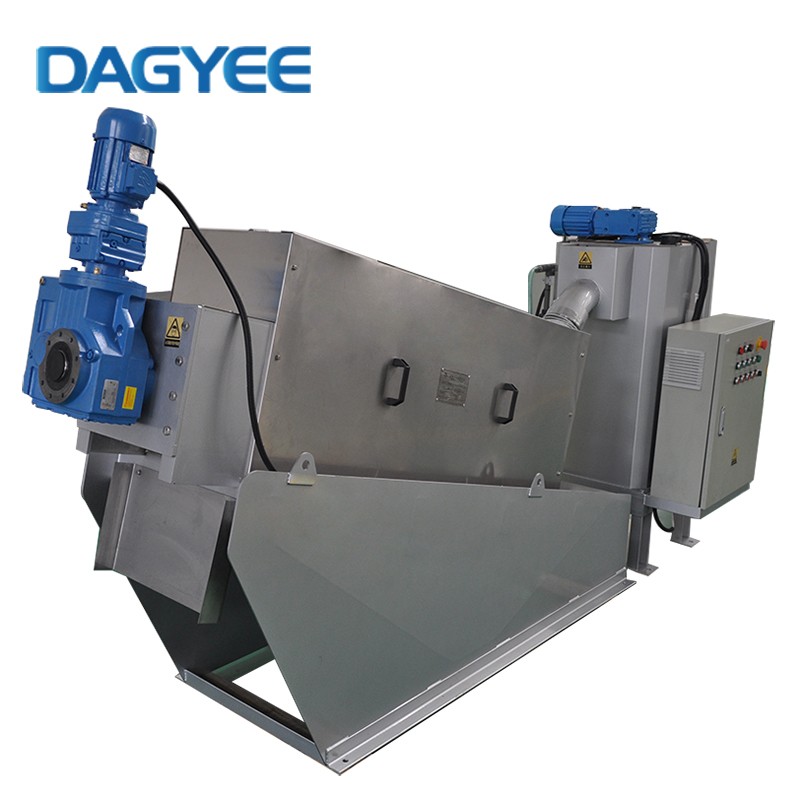

Multi-Disc Sludge Dewatering Screw Press Machine

DAGYEE screw press sludge dewatering machine is a kind of economic and environmental friendly sludge dewatering equipment. It is a new type of sludge extrusion dewatering equipment by using the principle of screw extrusion, through the strong squeezing force generated by the change of screw diameter and screw pitch, and the tiny gap between the floating ring and the fixed ring, to realize solid-liquid separation.

DAGYEE dewatering screw press is composed of fully automatic control cabinet, flocculation modulation box, sludge thickening and dewatering device, and liquid collecting tank. GN dewatering screw press is with automatic control technology, which can realize the flocculation fully automatic operation, and continuously complete the sludge thickening and squeezing, finally return or discharge the collected filtrate liquid.

DAGYEE screw press dewatering machine is widely used in sewage treatment projects of municipal, aquaculture, food, starch, oil, pharmaceutical, chemical, paper, leather and other industries.

Features

Multiplate Sludge dehydrator with Automatic poly dosing system

Sludge can be dewatered under aerobic conditions to avoid phosphorus release from anaerobic sludge dewatering.
Suitable for wide range sludge dewatering and can be used for oily sludge treatment.
Operating continuously and automatically, not easy to block.
Low investment and operation cost, no secondary pollution.
Energy saving and environmental friendly, compact design with small footprint.

Product Specifications

Model	Screw Diameter mm	Screw Nos.	Screw Power KW	Flushing Water L/H	Weight KG
DL-101	100	1	0.2	24	220
DL-201	200	1	0.4	32	420
DL-202	202	2	0.8	64	550
DL-301	301	1	0.8	40	900
DL-302	302	2	1.2	80	1400
DL-303	303	3	1.95	120	1900
DL-401	401	1	3	80	2200
DL-402	402	2	4.5	160	3500
DL-403	403	3	6.7	240	5500
DL-404	404	4	8.9	320	7000

Model	DS Capacity(kg/h)	Capacity for Sludge with Different Concerntration (m3/h)
Model	DS Capacity(kg/h)	10000mg/L	20000mg/L	30000mg/L	40000mg/L	50000mg/L
DL-101	5~7	~0.5	~0.25	~0.2	~0.15	~0.14
DL-201	15~20	~1.5	~0.75	~0.6	~0.5	~0.4
DL-202	30~40	~3	~1.5	~1.2	~1	~0.8
DL-301	50~70	~5	~2.5	~2	~1.5	~1.4
DL-302	100~140	~10	~5	~4	~3	~2.8
DL-303	150~210	~15	~7.5	~6	~4.5	~4.2
DL-401	130~160	~13	~6.5	~5	~4	~3.2
DL-402	260~320	~26	~13	~10	~8	~6.4
DL-403	390~480	~39	~19.5	~15	~12	~9.6
DL-404	520~640	~52	~26	~20	~16	~12.8

Working Principle

Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity;
Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce;
Self-cleaning: The moving rings rotates continuously up and down under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent from clogging that happens frequently for traditional dewatering equipment.
