Modular Dosing System for Water Treatment - Scalable Polymer Mixing Solution

Modular Dosing System for Water Treatment - Scalable Polymer Mixing Solution

Product Item : DPT-1000
Category： PAM Polymer Preparation unit
Capacity:300-10000L
Motor: SEW/NORD/Customize
Electrical component: Schneider/Omron/Customize
Certification: SGS/CE/ISO 9001
INQUIRY EMAIL

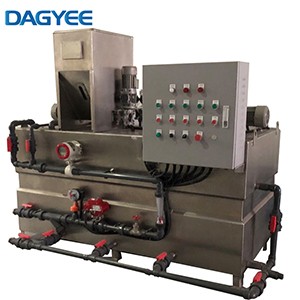

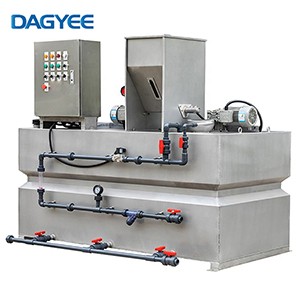

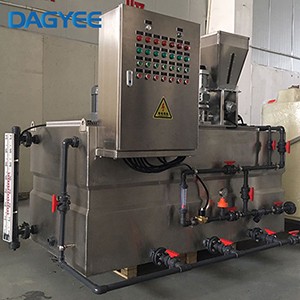

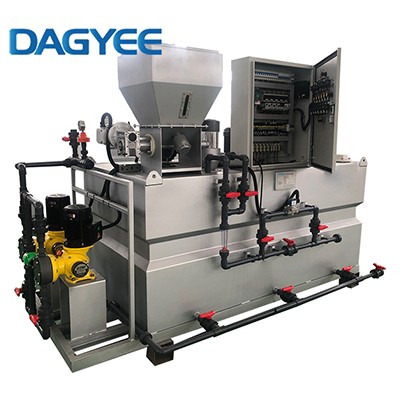

polymer preparation unit description

Polymer preparation system is a relatively common flocculant preparation device. It is a complete set of equipment with dosing, stirring, liquid conveying, automatic control and integration. It is widely used in raw water in power plants, high-pressure feed water in boilers, and ground collection in oil fields. Dewatering and dewatering treatment systems, various petrochemical systems and wastewater treatment systems.

Polymer preparation unit principle

A continuous polymer solution preparation system using polyacrylamide powder, designed by Enviroflex, featuring a three-chamber stainless steel tank with three agitators. Available in 7 models with output capacities ranging from 500 to 7500 liters per hour, and adjustable solution concentrations from 0.05% to 0.4%.
The unit is fully automatic and equipped with an automated flow and concentration control system.

Polymer preparation unit model

<span style="font-family:Verdana;">设备规格表</span>

Model	Capacity L/H	Volume L	Timing H	Dimensions MM	Weight KG	Power KW
DT300	300	450	0.6-1	15001000500	300	1.8
DT500	500	750	0.6-1	15001000650	420	1.8
DT1000	1000	1500	0.6-1	20001000900	500	2.8
DT1500	1500	2250	0.6-1	20001200900	620	3
DT2000	2000	3000	0.6-1	250012001000	800	3.9
DT3000	3000	4500	0.6-1	300015001000	950	5.3
DT5000	5000	7500	0.6-1	500015001000	1250	7
DT10000	10000	15000	0.6-1	480018002000	3600	7

Polymer preparation unit advantage

High efficiency mixers: Provide a low flow mixing for a homogeneous flocculant polymerisation without mechanical deterioration.
Optimised process: Visual access to the process and alarms, fieldbus distributed control (optional) provides informative and easy to access equipment and status application updates, controlled costs.
Option dual: Two-in-one solution, to prepare powder or Liquid Polymers. Ideal solution for wastewater plants located in areas subject to population changes.

Polymer preparation unit feature

1. Fully automatic operation including automatic dosing, dissolving and feeding
2. The highly precise dry polymer dosing device and the well-designed heater device can prevent the polymer from caking
3. The dosage of dry powder and water can be adjustable, so the solution with any concentration can be prepared
4. Optional: Vacuum feeding machine
5. Optional: on-line dilution system
6. Tank material: SS304 or SS316l, Polypropylene PP, FRP etc

Polymer preparation unit application

Sludge treatment conditioning and dehydration
Wastewater treatment plants
Municipal purification plants
Industrial purification plants
Agri-food industries
Beverage industries
Livestock farms
Meat processing
Fish processing
Paper industries
Textile industries
