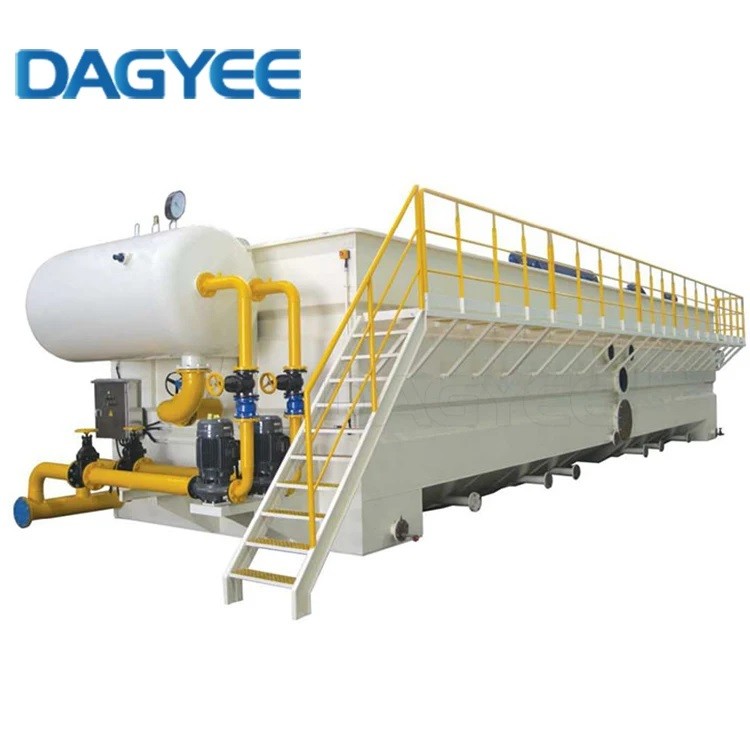

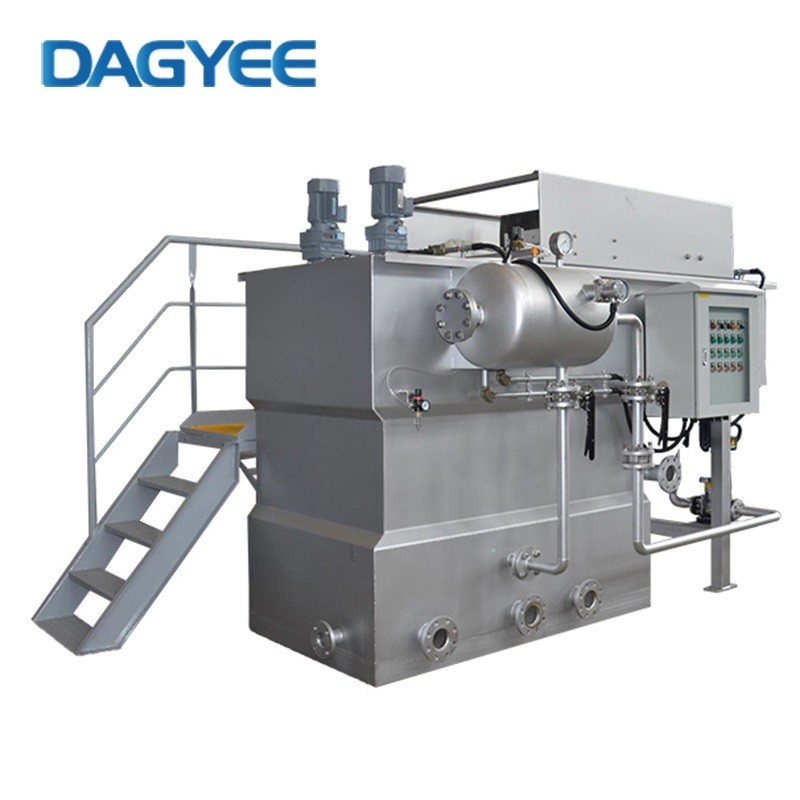

High Temperature Dissolved Air Flotation Thickening Clarifier

Dissolved air flotation description

---

Dissolved air flotation (DAF) is a water treatment process that clarifies wastewater (or other waters) by the removal of suspended matter such as oil or solids. The removal is achieved by dissolving air in the water or wastewater under pressure and then releasing the air at atmospheric pressure in a flotation tank or basin. The released air forms tiny bubbles which adhere to the suspended matter causing the suspended matter to float to the surface of the water where it may then be removed by a skimming device.Dissolved air flotation is very widely used in treating the industrial wastewater effluents from oil refineries, petrochemical and chemical plants, natural gas processing plants, paper mills, general water treatment and similar industrial facilities.A very similar process known as Induced Gas Flotation (IGF) and Dissolved Gas Flotation (DGF) are also used for wastewater treatment in the oil industry where atmospheric air is substituted with Nitrogen gas to reduce the risk of explosion. Froth flotation is commonly used in the processing of mineral ores.

Dissolved air flotation principle

---

The operational effectiveness of dissolved-air flotation processes can be largely attributed to the unique mechanism through which air bubbles facilitate the separation of solids from liquids. Initially, raw wastewater is introduced into a flotation tank, where it is pre-treated to prepare it for flotation. This pre-treatment commonly involves the addition of coagulants and flocculants, which help agglomerate fine particles into larger flocs.

Next, a high-pressure pump draws water from the flotation tank and saturates it with air, producing dissolved air at a concentration greater than it can hold at atmospheric pressure. Upon reaching the flotation chamber, pressure is released, and the excess air comes out of the solution, forming tiny bubbles that adhere to the suspended and colloidal particles within the wastewater. These adhered particles become buoyant and rise to the water's surface, forming a sludge layer that can be skimmed off. This mechanical method increases the overall efficiency of contaminant removal, resulting in treated water of higher clarity.

Dissolved air flotation technical sheet

---

Dissolved air flotation process flow

---

Dissolved air flotation advantage

---

High Removal Efficency with Low Operational Costs

DAF systems provide the flexibility to extract water throughout the process, extending retention time and improving effluent quality.

The technology provides high removal efficiency while maintaining low power and chemistry requirements.

Improved Separation and Sludge Removal

Plate separators maximize the removal of solids.

The cross-flow design facilitates lower water velocities and better solid separation.

Systems accumulate thicker, denser sludge on the thickening beach and feature a cone bottom design for easy sludge removal.

Rugged Design, Long Life

Heavy-duty, lightweight polypropylene (PP) construction.

Corrosion resistance

High total dissolved solids (TDS) and saltwater tolerance.

Chemical treatment flexibility.

Wide pH range

Up to 9,000 gallons per minute systems available.

Dissolved air flotation feature

---

The environmental impact of DAF systems is generally positive, particularly in minimizing water pollution.

By enabling the removal of over 90% of harmful components from industrial effluents, DAF systems contribute to cleaner water bodies and reduced environmental pollution.

Moreover, reduced chemical usage and advancements in energy-efficient designs further enhance the sustainability of DAF technology.

Dissolved Air Flotation systems have solidified their place as an indispensable tool in modern water treatment processes.

Their ability to efficiently remove suspended solids from diverse wastewater streams makes them particularly valuable across industries with stringent water quality requirements.

As technological innovations continue to evolve, DAF systems are poised to become even more cost-effective and environmentally sustainable, bolstering their role in the global effort to safeguard water resources.

Dissolved air flotation application

---

1. Paper mills

Historically, paper mills represent one of the first applications of dissolved air flotation systems. Dissolved air flotation units are used in paper mills for two different applications. The main use is as a process machine: this system allows to recover most of the paper fibers that constitute the raw material and that would otherwise be lost with the cloth washing water.

Secondly, dissolved air flotation units are used for the purification treatment of wastewater, in particular for the removal of suspended solids and the COD linked to them. In both cases, the system is ideal for optimizing the solids recovery yield thanks to the effectiveness of its air dissolving system.

2. Confectionery industries

One of the main applications of the dissolved air flotation system is the pre-treatment of waste water in the confectionery industry. The different production lines are subjected to frequent washing both for hygiene reasons and when products with different characteristics are produced. The process water of the confectionery industry is characterized by high levels of suspended solids, COD and fats.

Dissolved air flotation systems, used as a pre-treatment upstream of a biological treatment, or before discharge into the sewer system, allow these parameters to be substantially reduced. This allows the size to be reduced and the operation of a possible biological plant downstream to be optimized.

Alternatively, a lower polluting load allows companies to discharge their waste water into the sewer system within the values set by the most stringent regulations. The simplicity of management is such that it does not require specialized personnel to operate the system.

3. Cured meat factories

The water coming out of the sausage factories contains high levels of fats and suspended solids, deriving from the meat processing and stuffing process. The presence of these substances can create problems for the biological wastewater treatment plant. Fats inhibit the development of bacterial flora, and the high polluting loads require large-sized treatment plants with long residence times of the wastewater in the biological treatment tanks.

Flotation units intervene on both fronts. Used as a pre-treatment, it allows the removal of fats and suspended solids with extremely high efficiency, thanks to the innovative air dissolving system.

4. Primary and secondary clarification for biological plants

The dissolved air flotation system is widely used as a clarification phase in biological plants of all potentials. Thanks to its high efficiency in removing suspended solids, this solution is useful for the primary clarification of wastewater because it allows the use of extremely small spaces. The efficiency of solids removal is such as to drastically reduce the size of subsequent treatment phases.

For the same reasons, it is also used for secondary clarification, with an additional advantage. The sludge extracted from the flotation unit has a density approximately double that of the sludge extracted from a traditional sedimentation system. This allows for a reduction in the costs of sludge disposal or of creating any sludge treatment line. Furthermore, a denser sludge is recirculated, with obvious savings on the quantity of recirculation and consequently on the size of the oxidation tank.

5. Dairy industries

This is an application very similar to that of salami factories. In these companies, washing occurs very frequently and the waste water is rich in fats and highly biodegradable solid substances. The polluting load is very high and the treatment of this water requires the construction of large plants even when the flow rates involved are relatively low. The flotation unit, in this context, is widely used as a pre-treatment.

Its small size allows it to be installed even on existing plants or in any case where there are space problems. The dissolved air quickly brings solids and fats to the surface, without problems of bad odors and with extremely high removal efficiency. This allows the polluting load to be reduced and therefore the size of the entire plant. Flotation systems are often used even on existing plants that need to be upgraded.

6. Oil & gas industries

Oil depots and refineries are large-scale facilities. Rainwater and runoff water that falls on yards and buildings must necessarily be treated before being discharged. In addition to this, there is also the displacement and washing water in general. A peculiar characteristic of these waters is the presence of considerable quantities of oil. Dissolved air flotation units are effective solutions for their removal.

Flotation certainly has the advantages of removal efficiency, small dimensions, and the possibility of inserting the machine into the context of an existing plant. If the company already has its own biological purification plant, the system allows for an increase in efficiency by removing upstream all substances that could inhibit the correct functioning of the biological process.

7. Textile industries
The waters coming out of these companies are rich in fibers that escape from the various washing processes to which the raw wool is subjected. The raw material is rich in solids, fats and organic substances, which are removed with the washing waters. In the waters there are also abundant quantities of surfactants deriving from the detergents used for washing.

Dissolved air flotation systems have proven to be effective systems for the treatment of these waters, upstream of any biological and/or chemical-physical processes. They allow the removal of approximately 80% of the fats and solids contained in the waters, and also carry out a partial reduction of the surfactants linked to the latter. The micro air bubbles that are generated in the saturator and that are released in the flotation tank are so fine that they do not cause the formation of foam despite the high levels of surfactants.
