Automatic Polymer Preparation System

polymer preparation unit description

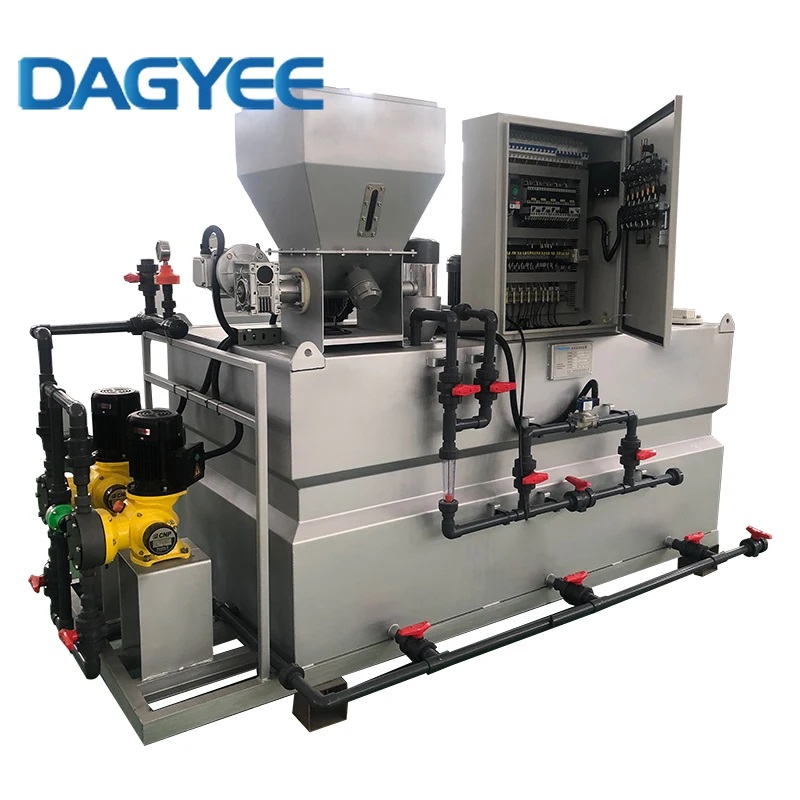

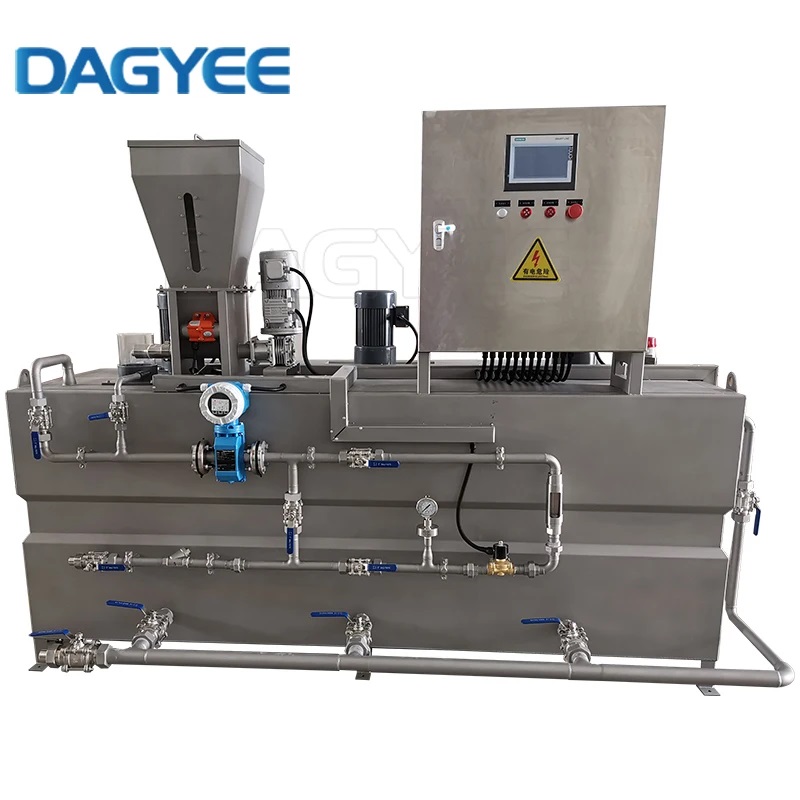

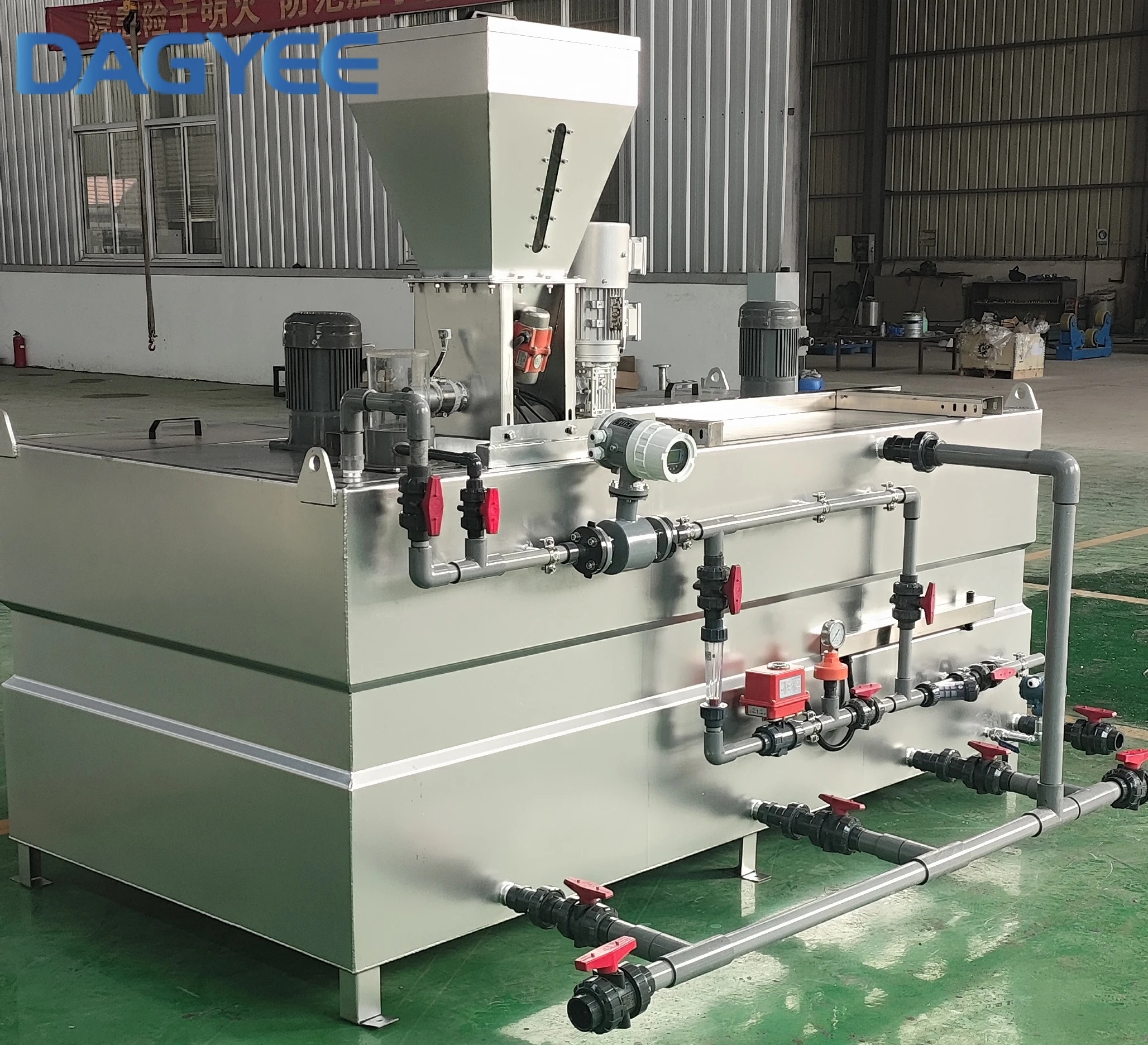

Polymer Preparation System is a compact automated metering unit for liquid or powder polymer preparation and dosing. Designed specifically for uniformity of flocculant concentration, the design is optimized to ensure that the polymer completes the maturation process with minimal footprint. Also often referred to as powder dosing systems, Polymer Dosing Systems, PAM PAC dosing systems.

The pre-assembled polymer unit features two cylindrical chambers for dosing, maturation and storage of liquid or powdered polymer solutions, which are hydraulically coupled via overflow channels. In addition, three motorized stirrers provide agitation to ensure consistent performance.

Polymer preparation unit principle

For solids separation in water treatment applications where effective coalescence and flocculation are required prior to dosing, this dosing system can be used for batch flocculation aids to prepare ready-to-use polymer solutions and is designed for fully automated dosing of polymer solutions.

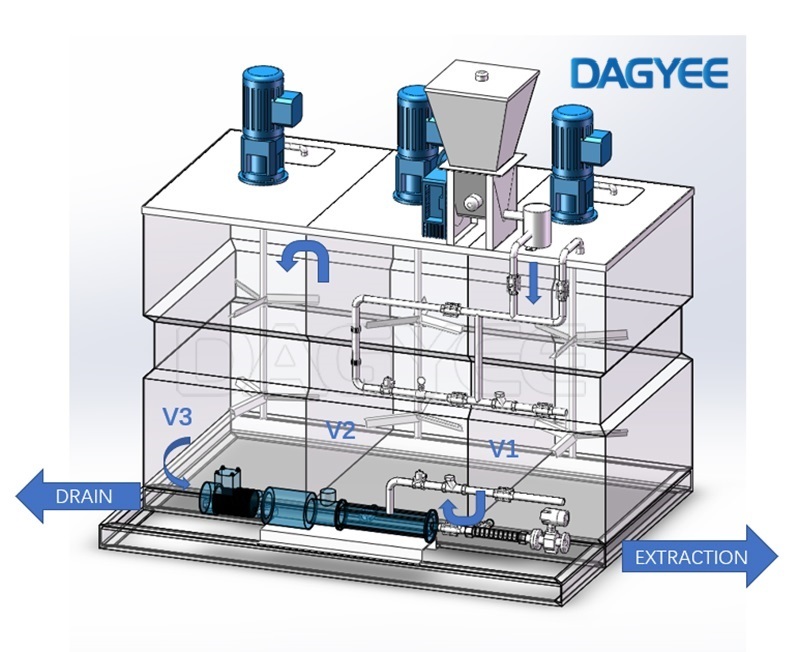

The baffles allow the polymer formulation to circulate through a series of compartments. This ensures optimal reaction times and continuous concentration levels in each compartment, thus avoiding any preferential routes between the preparation compartment and the final dosing solution compartment.

Automation is achieved by a control panel connected to an ultrasonic level detector located above the dosing solution compartment. Once the solution in the dosing chamber reaches “low level”, the detector activates the opening of the inlet motorized valve and the activation of the dry feeder. The water meter continuously controls the flow rate. Once a “high level” is reached, the process cycle stops.

Polymer preparation unit model

Polymer preparation unit advantage

Avoid the need for manual operations – Prevent dosing errors, operation stops.

Standardization of the obtained polymer – Concentration, maturation time, homogeneity.

High efficiency mixers – Provide a low flow mixing for a homogeneous flocculant polymerisation without mechanical deterioration.

Optimised process – Visual access to the process and alarms, fieldbus distributed control (optional) provides informative and easy to access equipment and status application updates, controlled costs. Intelligent system that feeds the process when needed, regulated by an ultrasonic level switch.

Reliability and Robustness in Any Environment.

Option DUAL – Two-in-one solution, to prepare powder or Liquid Polymers. Ideal solution for wastewater plants located in areas subject to population changes, such as tourist areas, or locations subject to rainy season that have to adapt their process according to the population equivalent or the season.

Compact design – For easy transport and relocation.

Polymer preparation unit feature

Fully automated operation — saves labor costs and prevents dosing errors, operation stops

Standardization of the resulting polymer — concentration, maturation time, homogeneity

High efficiency mixer — Provides low flow mixing for homogeneous flocculant polymerization without mechanical degradation

Optimized process — visual access to process and alarms, can feed the process when needed, regulated by ultrasonic level switches

Compact design — easy to transport and relocate

Safe and reliable — operation with airlift and overflow protection

Polymer preparation unit application

Water treatment: flocculation of industrial and drinking water

Wastewater treatment: physicochemical treatment

Sludge treatment: centrifuges, screw presses, filter presses to improve dewatering

Mining: concentrate sludge will sink to the bottom faster Speeds up production

Paper industry: retention aid

Cooling water treatment: inhibitors and biocides

Contact us for customized polymer preparation unit solutions

If you are interested in learning more about our polymer preparation unit or need a customized solution for your water treatment project, please contact our sales team. Our experts will work with you to assess your requirements and recommend the perfect equipment to meet your goals.
